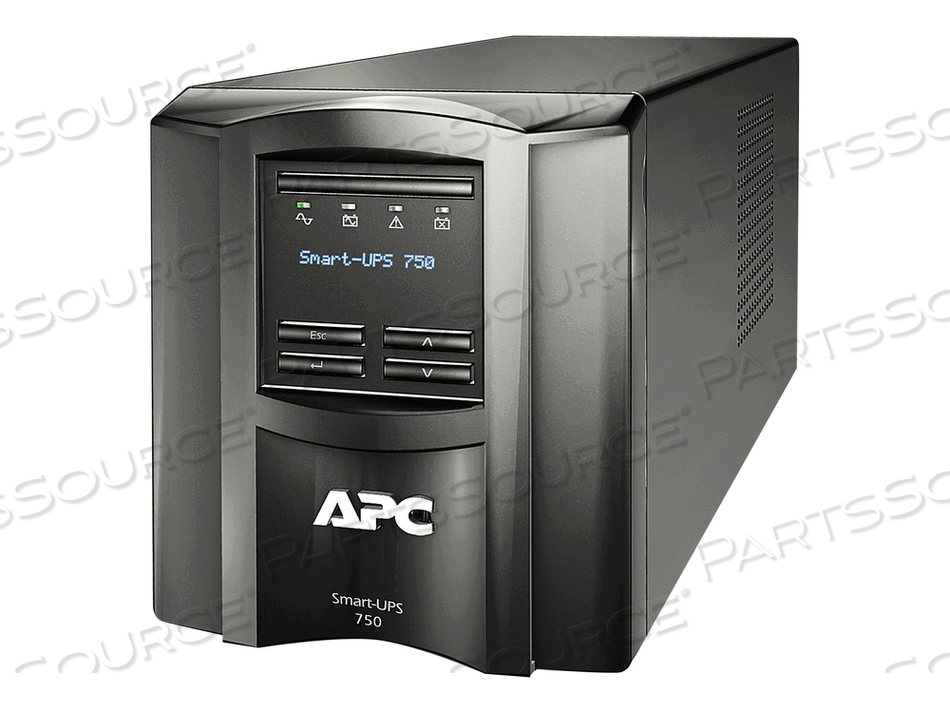

OEM#: SMT750CNew OEM Original Outright

SMART UPS, 120 VAC, 500 W, 750 VA, ETHERNET, RS-232, USB - OUTPUT CONNECTORS 6, BLACK - WITH APC SMARTCONNECT by APC / American Power Conversion

Your price:
$610.38 eachShip date will be provided after ordering
SMART UPS, 120 VAC, 500 W, 750 VA, ETHERNET, RS-232, USB - OUTPUT CONNECTORS 6, BLACK - WITH APC SMARTCONNECT by APC / American Power Conversion
SMART UPS, 120 VAC, 500 W, 750 VA, ETHERNET, RS-232, USB - OUTPUT CONNECTORS 6, BLACK - WITH APC SMARTCONNECT by APC / American Power Conversion
SMART UPS, 120 VAC, 500 W, 750 VA, ETHERNET, RS-232, USB - OUTPUT CONNECTORS 6, BLACK - WITH APC SMARTCONNECT by APC / American Power Conversion

OEM#: SMT750C
SMART UPS, 120 VAC, 500 W, 750 VA, ETHERNET, RS-232, USB - OUTPUT CONNECTORS 6, BLACK - WITH APC SMARTCONNECT by APC / American Power Conversion

New OEM Original Outright
Your price:
$610.38 each
Ship date will be provided after ordering
Asset Information
Product Overview

Cold-Start Capable

  • Provides temporary battery power when the utility power is out

Green Mode

  • Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection

High Online Efficiency

  • Reduces utility costs, generates less heat

LCD Status Display

  • Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs

Pure Sine Wave Output on Battery

  • Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics

SmartConnect

  • Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services

Temperature-Compensated Battery Charging

  • Prolongs battery life by regulating the charge voltage according to battery temperature

Save time with Easy and Convenient Remote Accessibility

  • Network manageable via serial, USB or optional ethernet. Includes Powerchute Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities

Peace of Mind that Comes with Full Equipment Compatibility and Reliability of a Leader

  • Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards

Low Operating and Maintenance Costs with High Efficiency, Proven Reliability and Intelligent Battery Management

  • Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down

Smarter Productivity with Ability to Tailor to Your Specific Application Needs

  • Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications

Avoids Costly Power Problems by Keeping Your IT Equipment and Data Safe and Available

  • Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Safety-Agency Approved

  • Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment

Predictive Failure Notification

  • Provides early-warning fault analysis ensuring proactive component replacement

Resettable Circuit Breakers

  • Enables a quick recovery from overload events

User-Replaceable Batteries

  • Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Battery Failure Notification

  • Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Hot-Swappable Batteries

  • Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Disconnected Battery Notification

  • Warns when a battery is not available to provide backup power

Boost and Trim Automatic Voltage Regulation (AVR)

  • Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models)

Temperature-Compensated Battery Charging

  • Prolongs battery life by regulating the charge voltage according to battery temperature

Power Conditioning

  • Protects connected loads from surges, spikes, lightning, and other power disturbances

Intelligent Battery Management

  • Maximizes battery performance, life, and reliability through intelligent, precision charging

Automatic Self-Test

  • Periodic battery self-test ensures early detection of a battery that needs to be replaced

Automatic Restart of Loads After UPS Shutdown

  • Automatically starts up the connected equipment upon the return of utility power

LED Status Indicators

  • Quickly understand unit and power status with visual indicators

Audible Alarms

  • Provides notification of changing utility power and UPS conditions

USB Connectivity

  • Provides management of the UPS via a USB port (not available on all models)

Serial Connectivity

  • Provides management of the UPS via a serial port

Network Manageable

  • Provides remote power management of the UPS over the network

Adjustable Voltage-Transfer Points

  • Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation

Adjustable Voltage Sensitivity

  • Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications

Features
  • Manufacturer: APC / American Power Conversion
  • Condition: New OEM Original
  • Purchase Type: Outright
  • Warranty: Mfr Warranty
  • Returnable: No
Technical Specs

P/N: SMT750C Key Specs

Item
SMARTCONNECT PORT SMART-UPS, 120V
OEM
APC / American Power Conversion
OEM #
SMT750C
Condition
New OEM Original
Returnable
No
Audible Noise at 1 M from Surface of Unit
41 DBA
Batteries Qty
1
Battery
Lead acid
Battery Charge Watts
49 W
Battery Life
3 - 5 Year
Battery Volt-Amp-Hour Capacity
146
Bundled with
APC SmartConnect
Certifications
CSA C22.2 No. 107.1, cULus, ENERGY STAR V2.0 (USA), FCC Part 15 Class A, ICES-003, UL 1778, RoHS, REACH
Color
Black

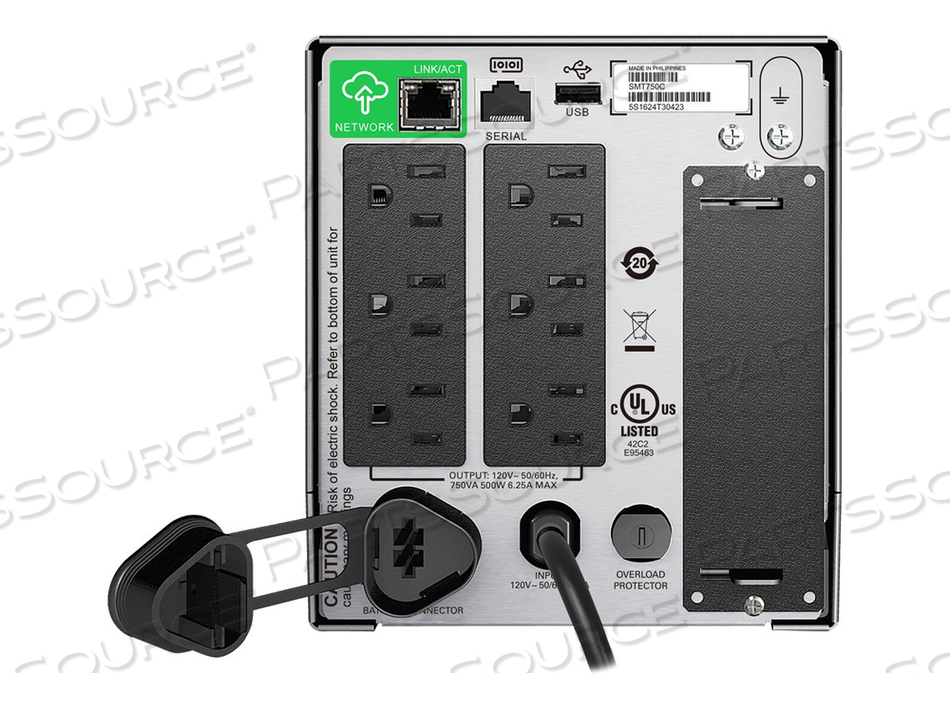

Connector
5-15P
Connector (Second End)
(6) 5-15R (Battery Backup)
Cord Length
6 FT
Device Type
UPS - external
Dimensions (WxDxH)
5.4 in x 14.5 in x 6.3 in
Frequency
50/60 HZ +/- 3 HZ
Input Connectors
1 x power NEMA 5-15
Input Voltage
AC 120 V
Networking
Ethernet, RS-232, USB
Online Thermal Dissipation
90 BTU/H
Operating Elevation
0 - 10000 FT
Operating Relative Humidity
0 - 95%
Operating Temperature Range
0°C - 40°C (32°F - 104°F)
Output Voltage
AC 120 V ± 5%
Output connectors
6 x power NEMA 5-15
Power Capacity
500 Watt / 750 VA
Power Rating
500 W, 750 VA
Recharge Time
3 H
Run Time (Up To)
5 min at full load
Storage Elevation
0 - 50000 FT
Storage Relative Humidity
0 - 95%
Storage Temperature Range
-15°C - 45°C
Surge Energy Rating
540 J
Technology
SmartSlot, USB
Transfer Time
10 MS
Volt Amps
750 VA
Voltage Rating
120 VAC
Volts
120 V
Watts
500 W
Weight
27.56 lbs
