OEM#: HDRS206-60/1-RNew OEM Original Outright

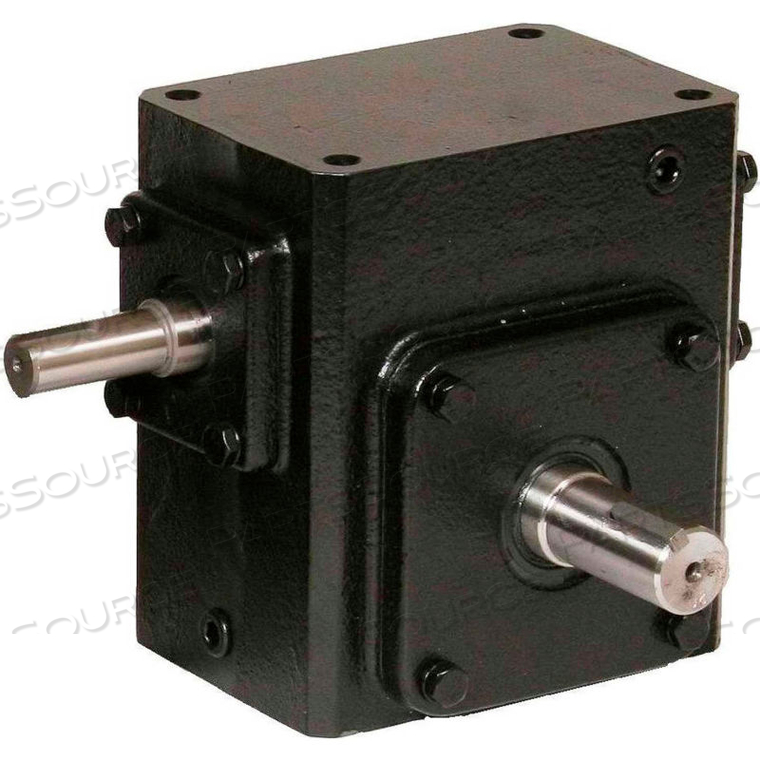

CAST IRON RIGHT ANGLE WORM GEAR REDUCER 60:1 RATIO by Worldwide Electric Corporation
Your price:
$465.32 each
OEM#: HDRS206-60/1-RCAST IRON RIGHT ANGLE WORM GEAR REDUCER 60:1 RATIO by Worldwide Electric Corporation
New OEM Original Outright
Your price:
$465.32 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Worldwide HdRS206-60/1-R Cast Iron Right Angle Worm Gear Reducer 60:1 Ratio
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
- Tapered roller bearings on the input and output shafts
- Embedded double-lip oil seals
- Anti-rust primer applied inside and outside of the gearbox
- Air dry special black paint
Technical Specs
P/N: HDRS206-60/1-R Key Specs
Item
CAST IRON RIGHT ANGLE WORM GEAR REDUCER 60:1 RATIO
OEM
Worldwide Electric Corporation
OEM #
HDRS206-60/1-R
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Backlash (Ft.) (Angular Minutes)
17
Country of Origin
Taiwan
Cross Reference
Boston 721; Grove B220
Efficiency
58
Gear Ratio
60:1
Max Input Hp
0.6
Max Torque (In-Lbs.)
750
Output Shaft Thrust Load (Lbs.)
750
Output Speed (Rpm)
29
Overhung Load Lbs.
700
Wcd Center Inches
2.06
Worldwide HdRS206-60/1-R Cast Iron Right Angle Worm Gear Reducer 60:1 Ratio
