OEM#: HDRS133-30/1-LNew OEM Original Outright

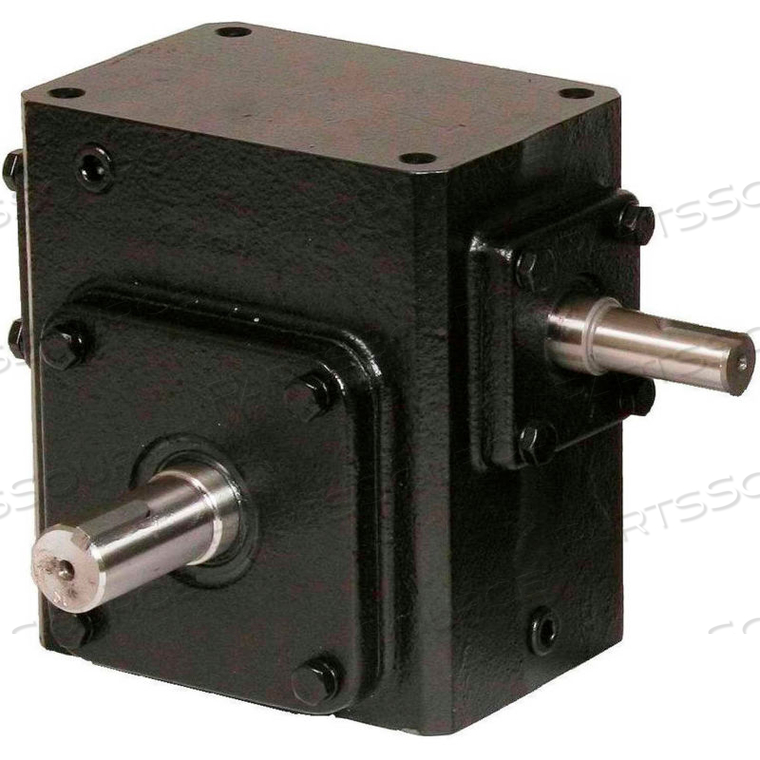

CAST IRON RIGHT ANGLE WORM GEAR REDUCER 30:1 RATIO by Worldwide Electric Corporation
Your price:
$313.01 each
OEM#: HDRS133-30/1-LCAST IRON RIGHT ANGLE WORM GEAR REDUCER 30:1 RATIO by Worldwide Electric Corporation
New OEM Original Outright
Your price:
$313.01 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Worldwide HdRS133-30/1-L Cast Iron Right Angle Worm Gear Reducer 30:1 Ratio
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
- Tapered roller bearings on the input and output shafts
- Embedded double-lip oil seals
- Anti-rust primer applied inside and outside of the gearbox
- Air dry special black paint
Technical Specs
P/N: HDRS133-30/1-L Key Specs
Item
CAST IRON RIGHT ANGLE WORM GEAR REDUCER 30:1 RATIO
OEM
Worldwide Electric Corporation
OEM #
HDRS133-30/1-L
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Backlash (Ft.) (Angular Minutes)
27
Country of Origin
Taiwan
Cross Reference
Boston 713; Grove B213
Efficiency
66
Gear Ratio
30:1
Max Input Hp
0.47
Max Torque (In-Lbs.)
336
Output Shaft Thrust Load (Lbs.)
300
Output Speed (Rpm)
58
Overhung Load Lbs.
300
Wcd Center Inches
1.33
