OEM#: HDRF206-40/1-L-56CNew OEM Original Outright

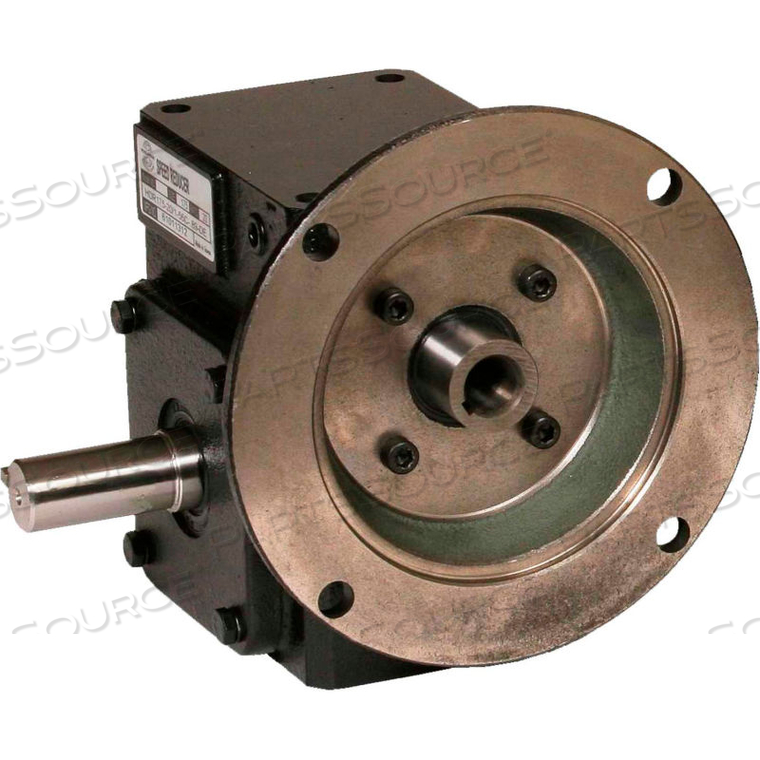

CAST IRON RIGHT ANGLE WORM GEAR REDUCER 40:1 RATIO 56C FRAME by Worldwide Electric Corporation

Your price:
$684.00 eachReady to ship
HomeWorldwide Electric Corporationhdrf206401l56c
CAST IRON RIGHT ANGLE WORM GEAR REDUCER 40:1 RATIO 56C FRAME by Worldwide Electric Corporation
CAST IRON RIGHT ANGLE WORM GEAR REDUCER 40:1 RATIO 56C FRAME by Worldwide Electric Corporation

OEM#: HDRF206-40/1-L-56C
CAST IRON RIGHT ANGLE WORM GEAR REDUCER 40:1 RATIO 56C FRAME by Worldwide Electric Corporation

New OEM Original Outright
Your price:
$684.00 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

Worldwide HdRF206-40/1-L-56C Cast Iron Right Angle Worm Gear Reducer 40:1 Ratio 56C Frame

Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.

Features:

  • Tapered roller bearings on the input and output shafts
  • Embedded double-lip oil seals
  • Anti-rust primer applied inside and outside of the gearbox
  • Air dry special black paint

Technical Specs
P/N: HDRF206-40/1-L-56C Key Specs
Item
CAST IRON RIGHT ANGLE WORM GEAR REDUCER 40:1 RATIO 56C FRAME
OEM
Worldwide Electric Corporation
OEM #
HDRF206-40/1-L-56C
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Backlash (Ft.) (Angular Minutes)
17
Country of Origin
Taiwan
Cross Reference
Boston F721; Grove BMQ220
Efficiency
71
Gear Ratio
40:1
Max Input Hp
1.09
Max Torque (In-Lbs.)
1120
Nema Frame
56C
Output Shaft Thrust Load (Lbs.)
750
Output Speed (Rpm)
44
Overhung Load Lbs.
700
Wcd Center Inches
2.06

Worldwide HdRF206-40/1-L-56C Cast Iron Right Angle Worm Gear Reducer 40:1 Ratio 56C Frame

Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.

Features:

  • Tapered roller bearings on the input and output shafts
  • Embedded double-lip oil seals
  • Anti-rust primer applied inside and outside of the gearbox
  • Air dry special black paint
