OEM#: CALM90-15/1-56CNew OEM Original Outright

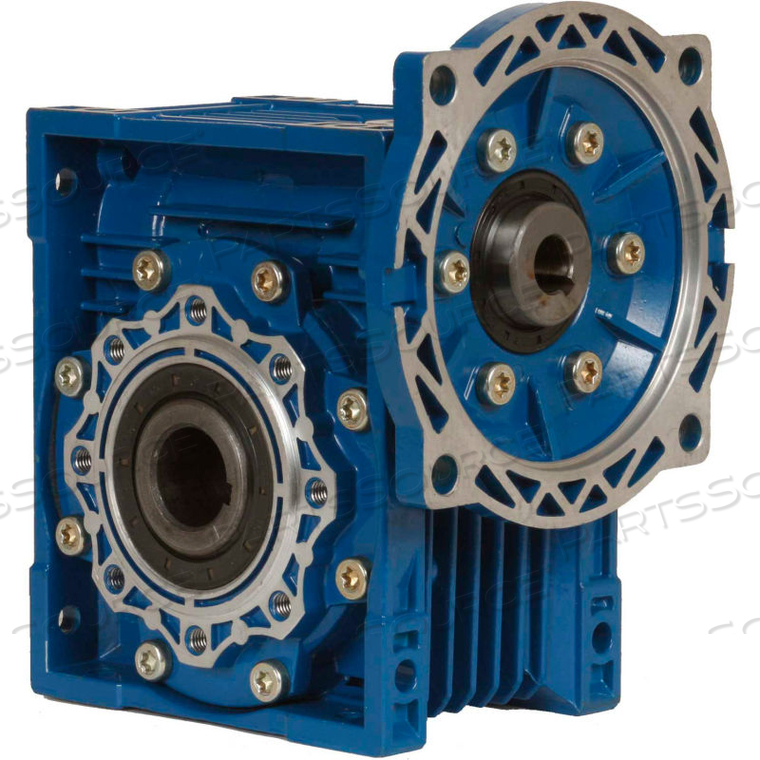

ALUMINUM WORM GEAR REDUCER, 90MM, 15:1, 56C NEMA FRAME by Worldwide Electric Corporation
Your price:
$776.55 each
OEM#: CALM90-15/1-56CALUMINUM WORM GEAR REDUCER, 90MM, 15:1, 56C NEMA FRAME by Worldwide Electric Corporation
New OEM Original Outright
Your price:
$776.55 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Worldwide Electric CALM90-15/1-56C Aluminum Worm Gear Reducer, 90mm, 15:1, 56C NEMA Frame
Aluminum Worm Gear Reducers are available in box sizes 30 - 90mm in ratio's from 7.5:1 to 100:1. The units have an aluminum alloy housing, NEMA motor input flanges, come pre-filled with synthetic oil and have a 1 year warranty. Special features include two bearings on the input and output shafts, double lip oil seals, epoxy paint for rust prevention, and hollow output bores with plug-in output shafts.
Aluminum Worm Gear Reducers are available in box sizes 30 - 90mm in ratio's from 7.5:1 to 100:1. The units have an aluminum alloy housing, NEMA motor input flanges, come pre-filled with synthetic oil and have a 1 year warranty. Special features include two bearings on the input and output shafts, double lip oil seals, epoxy paint for rust prevention, and hollow output bores with plug-in output shafts.
Technical Specs
P/N: CALM90-15/1-56C Key Specs
Item
ALUMINUM WORM GEAR REDUCER, 90MM, 15:1, 56C NEMA FRAME
OEM
Worldwide Electric Corporation
OEM #
CALM90-15/1-56C
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bore Type
Hollow Bore
Box Size
90
Country of Origin
Taiwan
Efficiency
82
Gear Ratio
15:1
Max Input Hp
6.86
Max Torque (In-Lbs.)
3177
Nema Frame
56C
Output Diameter Inches
1.375
Output Speed (Rpm)
117
Overhung Load Lbs.
794
Wcd Center Mm
90
Worldwide Electric CALM90-15/1-56C Aluminum Worm Gear Reducer, 90mm, 15:1, 56C NEMA Frame
Aluminum Worm Gear Reducers are available in box sizes 30 - 90mm in ratio's from 7.5:1 to 100:1. The units have an aluminum alloy housing, NEMA motor input flanges, come pre-filled with synthetic oil and have a 1 year warranty. Special features include two bearings on the input and output shafts, double lip oil seals, epoxy paint for rust prevention, and hollow output bores with plug-in output shafts.
Aluminum Worm Gear Reducers are available in box sizes 30 - 90mm in ratio's from 7.5:1 to 100:1. The units have an aluminum alloy housing, NEMA motor input flanges, come pre-filled with synthetic oil and have a 1 year warranty. Special features include two bearings on the input and output shafts, double lip oil seals, epoxy paint for rust prevention, and hollow output bores with plug-in output shafts.
