OEM#: KAN37-15/1-H-56CNew OEM Original Outright
CAST-IRON HELICAL BEVEL SPEED REDUCER, 56C INPUT FLANGE, 15/1. by Worldwide Electric Corporation
Your price:
$1,819.40 each
OEM#: KAN37-15/1-H-56CCAST-IRON HELICAL BEVEL SPEED REDUCER, 56C INPUT FLANGE, 15/1. by Worldwide Electric Corporation
New OEM Original Outright
Your price:
$1,819.40 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

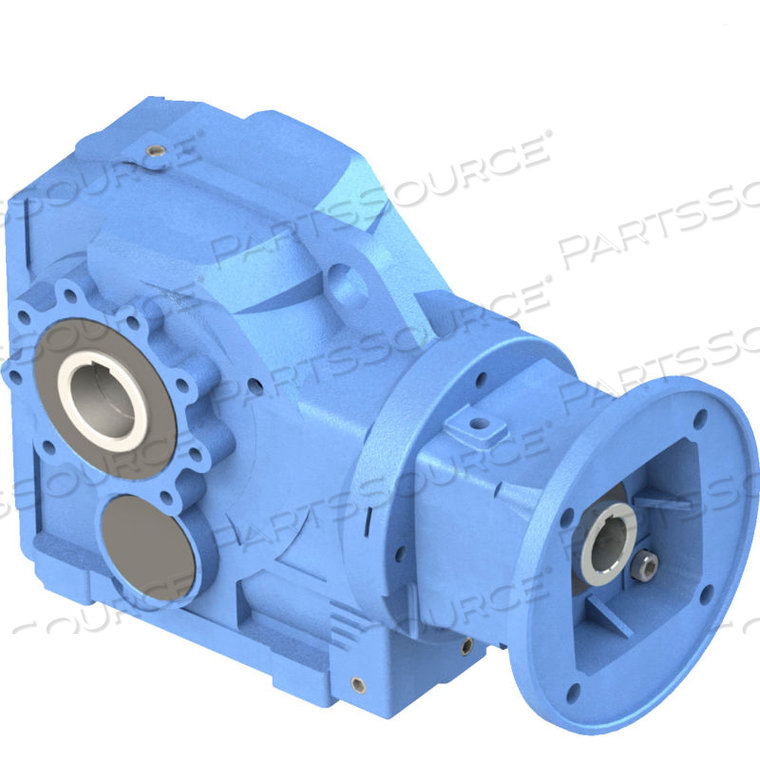

WWE KAN37-15/1-H-56C, Cast-Iron Helical Bevel Speed Reducer; 56C Input Flange, 15/1.
Cast-Iron, Helical Bevel Speed Reducers are available in box sizes 37-97 to support 1/4 HP to 30 HP NEMA frame motors in speed ratio's from 5:1 to 120:1. The units have NEMA motor quill style input flanges and standard hollow output bores, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation. The KAN style comes standard with B14 mounting. Torque arm mount and B5 flange mounts are available as separate accessories. Single shaft and double shaft output kits are also available.
Cast-Iron, Helical Bevel Speed Reducers are available in box sizes 37-97 to support 1/4 HP to 30 HP NEMA frame motors in speed ratio's from 5:1 to 120:1. The units have NEMA motor quill style input flanges and standard hollow output bores, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation. The KAN style comes standard with B14 mounting. Torque arm mount and B5 flange mounts are available as separate accessories. Single shaft and double shaft output kits are also available.
Technical Specs
P/N: KAN37-15/1-H-56C Key Specs
Item
CAST-IRON HELICAL BEVEL SPEED REDUCER, 56C INPUT FLANGE, 15/1.
OEM
Worldwide Electric Corporation
OEM #
KAN37-15/1-H-56C
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Actual Gear Ratio
15.32
Box Size
37
Country of Origin
Taiwan
Cross Reference
SEW KA/KF37
Gear Ratio
15
Gear Stages
3
Max Input Hp
3.14
Max Torque (In-Lbs.)
1568
Nema Frame
56C
Output Speed (Rpm)
114
Overhung Load Lbs.
575
WWE KAN37-15/1-H-56C, Cast-Iron Helical Bevel Speed Reducer; 56C Input Flange, 15/1.
Cast-Iron, Helical Bevel Speed Reducers are available in box sizes 37-97 to support 1/4 HP to 30 HP NEMA frame motors in speed ratio's from 5:1 to 120:1. The units have NEMA motor quill style input flanges and standard hollow output bores, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation. The KAN style comes standard with B14 mounting. Torque arm mount and B5 flange mounts are available as separate accessories. Single shaft and double shaft output kits are also available.
Cast-Iron, Helical Bevel Speed Reducers are available in box sizes 37-97 to support 1/4 HP to 30 HP NEMA frame motors in speed ratio's from 5:1 to 120:1. The units have NEMA motor quill style input flanges and standard hollow output bores, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation. The KAN style comes standard with B14 mounting. Torque arm mount and B5 flange mounts are available as separate accessories. Single shaft and double shaft output kits are also available.
