OEM#: HDRF175-10/1-L-56CNew OEM Original Outright

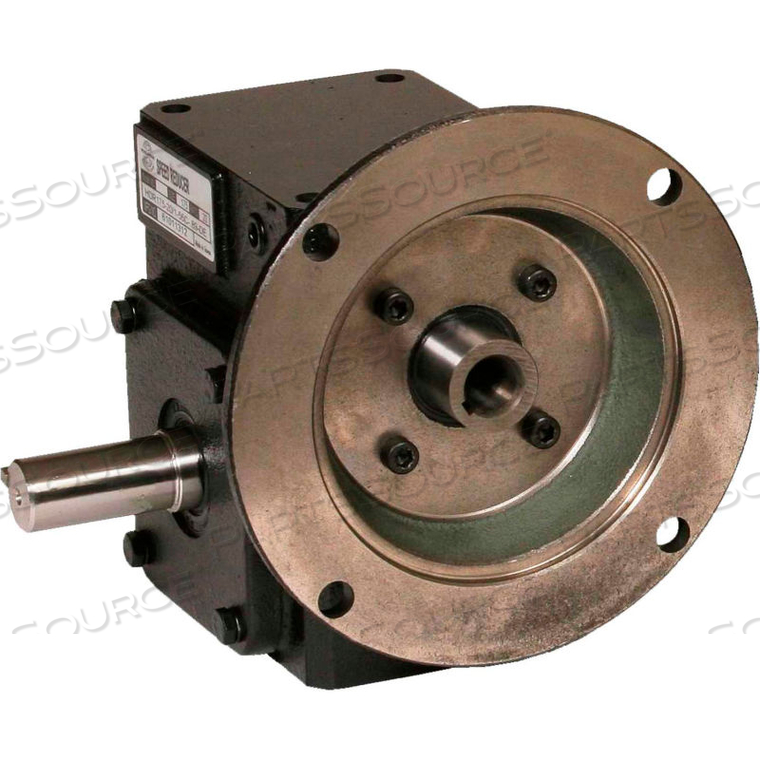

CAST IRON RIGHT ANGLE WORM GEAR REDUCER 10:1 RATIO 56C FRAME by Worldwide Electric Corporation
Your price:
$511.95 each
OEM#: HDRF175-10/1-L-56CCAST IRON RIGHT ANGLE WORM GEAR REDUCER 10:1 RATIO 56C FRAME by Worldwide Electric Corporation
New OEM Original Outright
Your price:
$511.95 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Worldwide HdRF175-10/1-L-56C Cast Iron Right Angle Worm Gear Reducer 10:1 Ratio 56C Frame
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
- Tapered roller bearings on the input and output shafts
- Embedded double-lip oil seals
- Anti-rust primer applied inside and outside of the gearbox
- Air dry special black paint
Technical Specs
P/N: HDRF175-10/1-L-56C Key Specs
Item
CAST IRON RIGHT ANGLE WORM GEAR REDUCER 10:1 RATIO 56C FRAME
OEM
Worldwide Electric Corporation
OEM #
HDRF175-10/1-L-56C
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Backlash (Ft.) (Angular Minutes)
20
Country of Origin
Taiwan
Cross Reference
Boston F718; Grove BMQ218
Efficiency
88
Gear Ratio
10:1
Max Input Hp
1.57
Max Torque (In-Lbs.)
515
Nema Frame
56C
Output Shaft Thrust Load (Lbs.)
550
Output Speed (Rpm)
175
Overhung Load Lbs.
650
Wcd Center Inches
1.75
