OEM#: HDRF133-30/1-L-56CNew OEM Original Outright

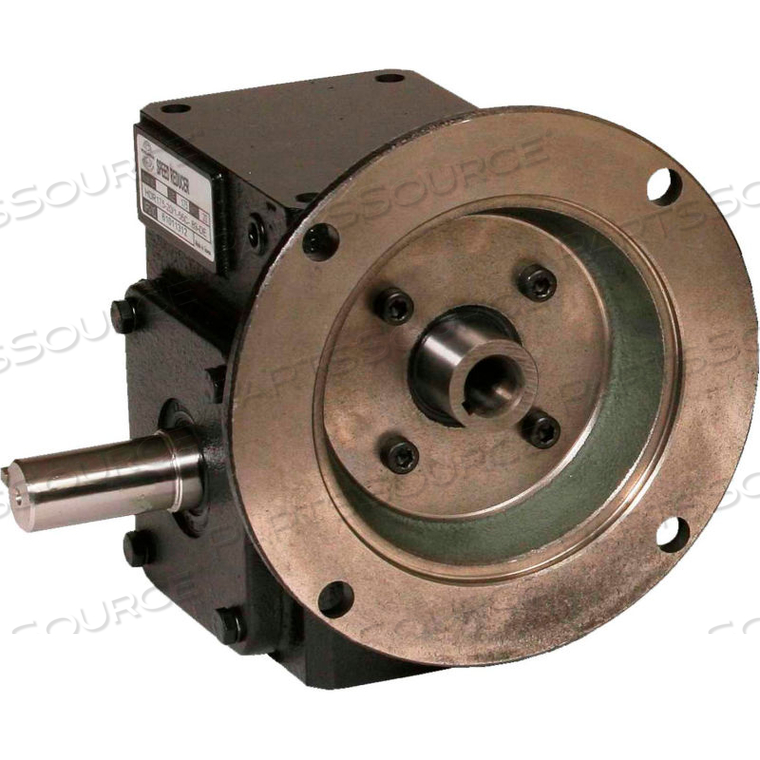

CAST IRON RIGHT ANGLE WORM GEAR REDUCER 30:1 RATIO 56C FRAME by Worldwide Electric Corporation
Your price:
$410.33 each
OEM#: HDRF133-30/1-L-56CCAST IRON RIGHT ANGLE WORM GEAR REDUCER 30:1 RATIO 56C FRAME by Worldwide Electric Corporation
New OEM Original Outright
Your price:
$410.33 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Worldwide HdRF133-30/1-L-56C Cast Iron Right Angle Worm Gear Reducer 30:1 Ratio 56C Frame
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
- Tapered roller bearings on the input and output shafts
- Embedded double-lip oil seals
- Anti-rust primer applied inside and outside of the gearbox
- Air dry special black paint
Technical Specs
P/N: HDRF133-30/1-L-56C Key Specs
Item
CAST IRON RIGHT ANGLE WORM GEAR REDUCER 30:1 RATIO 56C FRAME
OEM
Worldwide Electric Corporation
OEM #
HDRF133-30/1-L-56C
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Backlash (Ft.) (Angular Minutes)
27
Country of Origin
Taiwan
Cross Reference
Boston F713; Grove BMQ213
Efficiency
66
Gear Ratio
30:1
Max Input Hp
0.47
Max Torque (In-Lbs.)
336
Nema Frame
56C
Output Shaft Thrust Load (Lbs.)
300
Output Speed (Rpm)
58
Overhung Load Lbs.
300
Wcd Center Inches
1.33
Worldwide HdRF133-30/1-L-56C Cast Iron Right Angle Worm Gear Reducer 30:1 Ratio 56C Frame
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
- Tapered roller bearings on the input and output shafts
- Embedded double-lip oil seals
- Anti-rust primer applied inside and outside of the gearbox
- Air dry special black paint
