OEM#: E24MWNS 15:1 56C/140TCNew OEM Original Outright

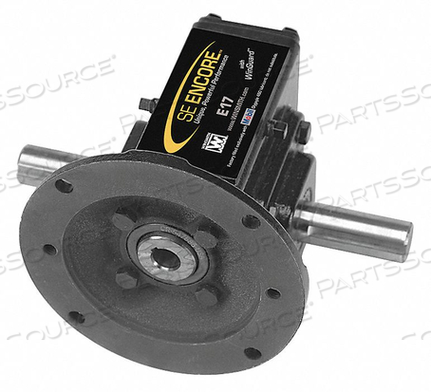

SPEED REDUCER C-FACE 56C/140TC 15 1 by Winsmith

Your price:
$1,193.51 eachReady to ship
HomeWinsmithE24MWNS15156C140TC
SPEED REDUCER C-FACE 56C/140TC 15 1 by Winsmith
SPEED REDUCER C-FACE 56C/140TC 15 1 by Winsmith

OEM#: E24MWNS 15:1 56C/140TC
SPEED REDUCER C-FACE 56C/140TC 15 1 by Winsmith

New OEM Original Outright
Your price:
$1,193.51 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: E24MWNS 15:1 56C/140TC Key Specs
Item
SPEED REDUCER C-FACE 56C/140TC 15 1
OEM
Winsmith
OEM #
E24MWNS 15:1 56C/140TC
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bore Dia.
7/8 in
Duty
Washdown
Finish
Epoxy Coating System
Frame
56C/140TC
Gear Type
Worm
Housing Material
Cast Iron
Input RPM
1,725
Lubrication
Mobil Glygoyle(R) 460
Max. Input HP
2 hp
Max. Output Torque
1,003 in-lb
Mounting
Universal
Nominal Output RPM
115
Nominal Ratio
15:1
Number of Stages
1
Output Shaft Dia.
1 1/4 in
Output Shaft Height
2 7/8 in
Output Torque @ 1 HP
502 in-lb
Output Torque @ 1.5 HP
752 in-lb
Output Torque @ 2 HP
1,003 in-lb
Output Torque @ 3/4 HP
376 in-lb
Overhung Load
1,025 lb
Rotation
Reversible
Shaft Orientation
Right Angle
Single/Double Output/Universal
Double Output
Speed Reducer Type
C-Face
Worm Center Distance
2.38 in
