OEM#: 06036ET3E364JP-W22New OEM Original Outright

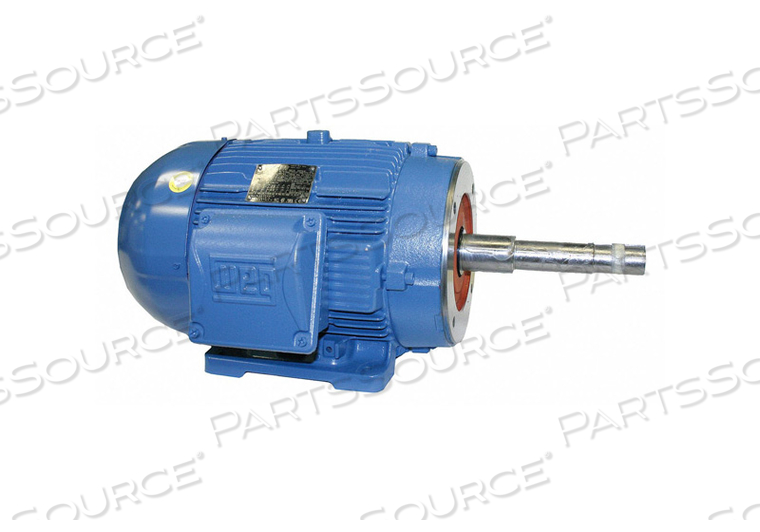

PUMP MOTOR 3-PH 60 HP 3560 208-230/460V by WEG
Your price:
$14,531.69 each
OEM#: 06036ET3E364JP-W22PUMP MOTOR 3-PH 60 HP 3560 208-230/460V by WEG
New OEM Original Outright
Your price:
$14,531.69 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 06036ET3E364JP-W22 Key Specs
Item
PUMP MOTOR 3-PH 60 HP 3560 208-230/460V
OEM
WEG
OEM #
06036ET3E364JP-W22
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
364/5JP
Full Load Amps
148-134/67
HP
60
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
28-1/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
Pump
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Type
Face/Base
Motor Service Factor
1.25
Motor Shaft Design
JP Threaded
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Nameplate RPM
3560
Nominal Efficiency
93.6 %
Overall Length
35 15/16 in
Phase
3
Shaft Diameter
1-5/8 in
Shaft Length
7-7/8 in
Standards
CE Compliant, CSA Certified, UL Recognized
Voltage
208-230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
