OEM#: 02518ET3ECT284T-W22New OEM Original Outright

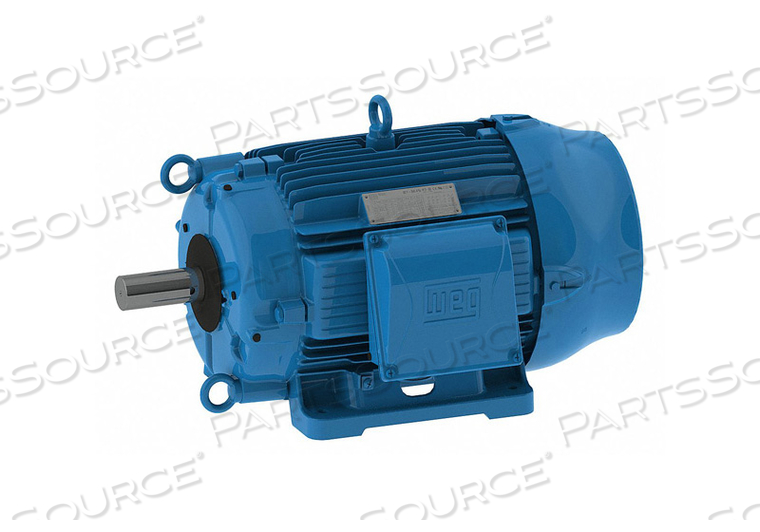

CT MOTOR 25 HP 1765 RPM 230/460 V by WEG
Your price:
$4,727.50 each
OEM#: 02518ET3ECT284T-W22CT MOTOR 25 HP 1765 RPM 230/460 V by WEG
New OEM Original Outright
Your price:
$4,727.50 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 02518ET3ECT284T-W22 Key Specs
Item
CT MOTOR 25 HP 1765 RPM 230/460 V
OEM
WEG
OEM #
02518ET3ECT284T-W22
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature
40 Degrees C
CC Number
CC029A
Duty
Continuous
Finish
Blue
Frame
284T
Full Load Amps
59/29.5
HP
25
Hz
60/50
Includes
Space Heater
Ins. Class
F
Length Less Shaft
21-13/16 in
Motor Application
Cooling Tower
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1765
Nominal Efficiency
93.6 %
Overall Length
26-7/16 in
Phase
3
RPM Range
1701-1800
Shaft Diameter
1-7/8 in
Shaft Length
4-5/8 in
Standards
CE, CSA Certified (LR38324), UL Recognized (E104590)
Voltage
230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
