OEM#: 02036ET3H256T-W22New OEM Original Outright

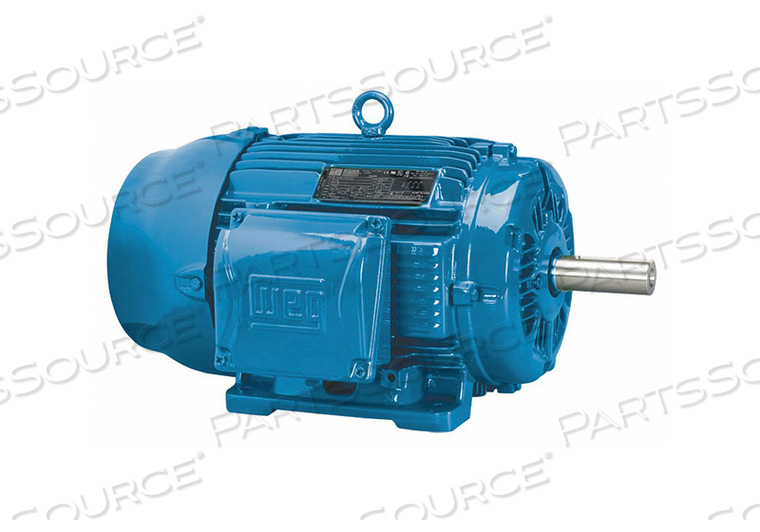

GP MTR 3 PH TEFC 20 HP 3530 RPM 256T by WEG
Your price:
$2,787.59 each
OEM#: 02036ET3H256T-W22GP MTR 3 PH TEFC 20 HP 3530 RPM 256T by WEG
New OEM Original Outright
Your price:
$2,787.59 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 02036ET3H256T-W22 Key Specs
Item
GP MTR 3 PH TEFC 20 HP 3530 RPM 256T
OEM
WEG
OEM #
02036ET3H256T-W22
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Approvals, Certifications & Standards
CE, CSA, NOM, UL
CC Number
CC029A
Duty
Continuous
Frame
256T
Full Load Amps
18.6
Horsepower
20
Hz
60
Insulation Class
F
Length Less Shaft
20 15/16 in
Maximum Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3530
Nominal Efficiency
91 %
Number of Speeds
1
Overall Length
24-15/16 in
Phase
3
Shaft Diameter
1-5/8 in
Shaft Length
4 in
Voltage
575
