OEM#: 01518OT3E254JP-SNew OEM Original Outright

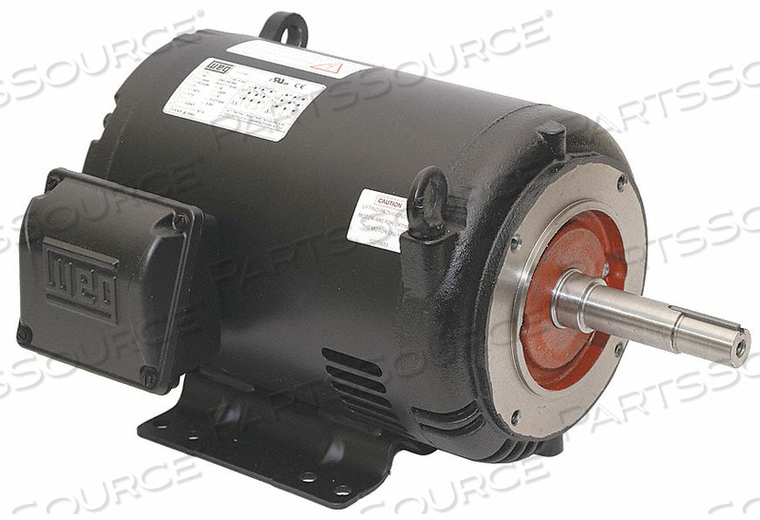

PUMP MOTOR 3-PH 15 HP 254/6JP 18.3A by WEG
Your price:
$3,257.89 each
OEM#: 01518OT3E254JP-SPUMP MOTOR 3-PH 15 HP 254/6JP 18.3A by WEG
New OEM Original Outright
Your price:
$3,257.89 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 01518OT3E254JP-S Key Specs
Item
PUMP MOTOR 3-PH 15 HP 254/6JP 18.3A
OEM
WEG
OEM #
01518OT3E254JP-S
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
254/6JP
Full Load Amps
41.1-37.2/18.6
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Does not Contain Phthalates, Formaldehyde, Toxic Metals, Aromatic and Halogenated Compounds, Butoxyethanol, 2-Methoxyethanl, Isophorone, Methyl Ethyl Ketone, Methyl Isobutyl Ketone, Acrolein, Acrylonitrile
Horsepower
15
Hz
60
Insulation Class
F
Inverter Rated
Yes
Length Less Shaft
19-19/32 in
Maximum Ambient Temperature
40 Degrees C
Motor Application
Pump
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
JP Threaded
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Nameplate RPM
1760
Nominal Efficiency
93
Overall Length
19-19/32 in
Phase
3
Shaft Diameter
1-1/4 in
Shaft Length
19-19/32 in
Voltage
208-230/460
