OEM#: 01036OT3E213JM-SNew OEM Original Outright

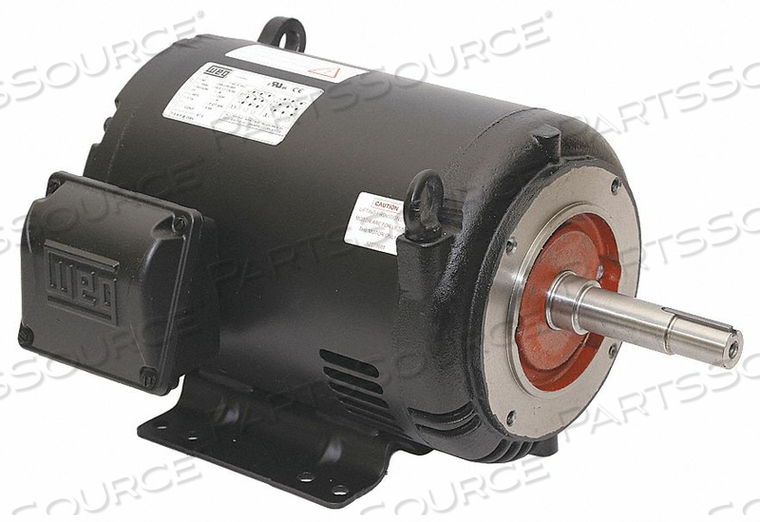

PUMP MOTOR 213/5JM 208-230/460V by WEG
Your price:
$2,027.44 each
OEM#: 01036OT3E213JM-SPUMP MOTOR 213/5JM 208-230/460V by WEG
New OEM Original Outright
Your price:
$2,027.44 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 01036OT3E213JM-S Key Specs
Item
PUMP MOTOR 213/5JM 208-230/460V
OEM
WEG
OEM #
01036OT3E213JM-S
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Approvals, Certifications & Standards
CSA, UL
CC Number
CC029A
Duty
Continuous
Frame
213/5JM
Full Load Amps
26.5-24/12
Green Environmental Attribute
Does not Contain Phthalates, Formaldehyde, Toxic Metals, Aromatic and Halogenated Compounds, Butoxyethanol, 2-Methoxyethanl, Isophorone, Methyl Ethyl Ketone, Methyl Isobutyl Ketone, Acrolein, Acrylonitrile
Horsepower
10
Hz
60
Insulation Class
F
Inverter Rated
Yes
Length Less Shaft
14-7/64 in
Maximum Ambient Temperature
40 Degrees C
Motor Application
Pump
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
JM Threaded
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Nameplate RPM
3530
Nominal Efficiency
89.5
Overall Length
14-7/64 in
Phase
3
Shaft Diameter
14-7/64 in
Shaft Length
4 in
Voltage
208-230/460
