OEM#: 00718OT3E213T-SNew OEM Original Outright

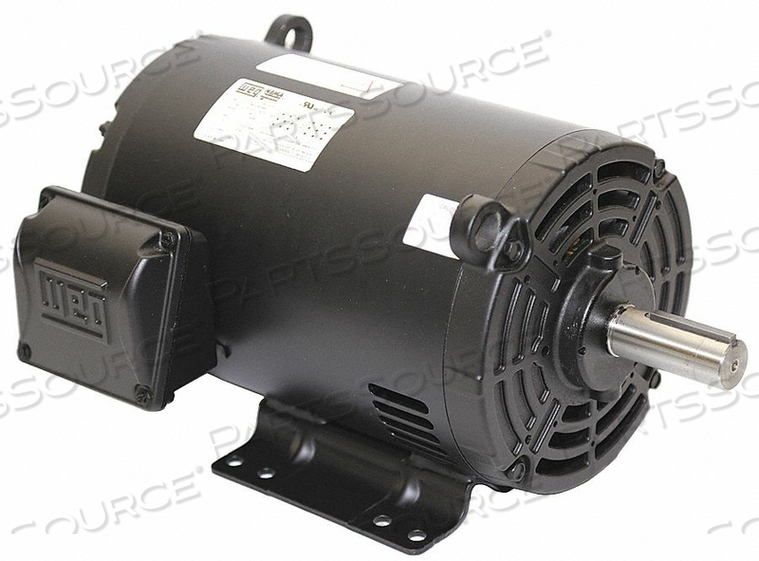

MOTOR 3-PH 7-1/2 HP 1770 213/5T 9.3A by WEG
Your price:
$1,124.57 each
OEM#: 00718OT3E213T-SMOTOR 3-PH 7-1/2 HP 1770 213/5T 9.3A by WEG
New OEM Original Outright
Your price:
$1,124.57 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 00718OT3E213T-S Key Specs
Item
MOTOR 3-PH 7-1/2 HP 1770 213/5T 9.3A
OEM
WEG
OEM #
00718OT3E213T-S
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
213/5T
Full Load Amps
18.5/9.3
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Does not Contain Formaldehyde
HP
7-1/2 hp
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
13 13/64 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1770
Nominal Efficiency
91 %
Number of Speeds
1
Overall Length
16-9/16 in
Phase
3
RPM Group
1701-1800
RPM Range
1701-1800
Shaft Diameter
1-3/8 in
Shaft Length
3-3/8 in
Standards
CSA (70014057), UL (E104590
Voltage
230/460
