OEM#: 00318ST3QIE182T-W22New OEM Original Outright

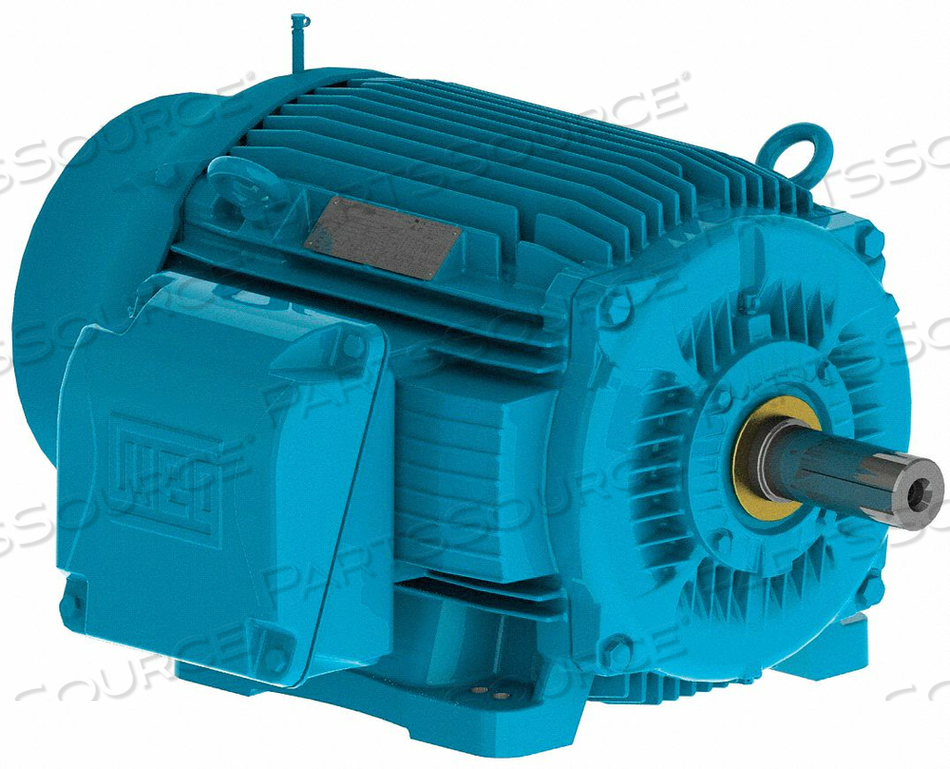

MOTOR 3 PH 3 HP 1760 460V 182T EFF 89.5 by WEG
Your price:
$2,275.67 each
OEM#: 00318ST3QIE182T-W22MOTOR 3 PH 3 HP 1760 460V 182T EFF 89.5 by WEG
New OEM Original Outright
Your price:
$2,275.67 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 00318ST3QIE182T-W22 Key Specs
Item
MOTOR 3 PH 3 HP 1760 460V 182T EFF 89.5
OEM
WEG
OEM #
00318ST3QIE182T-W22
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Approvals, Certifications & Standards
CE, CSA, NOM, UL
CC Number
CC029A
Duty
Continuous
Frame
182T
Full Load Amps
3.8
Horsepower
3
Hz
60/50
Insulation Class
F
Length Less Shaft
12-1/8 in
Maximum Ambient Temperature
40 Degrees C
Motor Application
IEEE Motor
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1760
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
14-7/8 in
Phase
3
Shaft Diameter
1-1/8 in
Shaft Length
2-3/4 in
Voltage
460
