OEM#: 00152XT3E182TNew OEM Original Outright

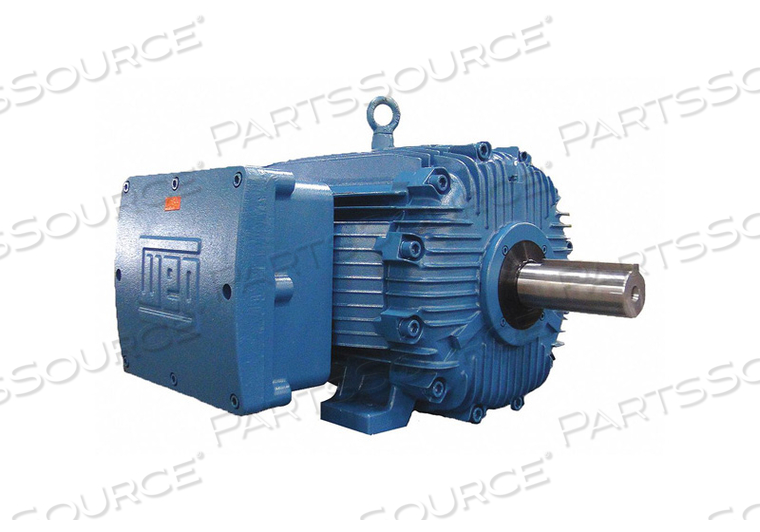

HAZARDOUS LOC MTR 3 PH TEFC 1-1/2 HP T4 by WEG
Your price:
$1,314.71 each $1,330.18 Savings: $15.47 (1%)
OEM#: 00152XT3E182THAZARDOUS LOC MTR 3 PH TEFC 1-1/2 HP T4 by WEG
New OEM Original Outright
Your price:
$1,314.71 each
$1,330.18 Savings: $15.47 (1%)
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 00152XT3E182T Key Specs
Item
HAZARDOUS LOC MTR 3 PH TEFC 1-1/2 HP T4
OEM
WEG
OEM #
00152XT3E182T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Approvals, Certifications & Standards
UL Listed (E87848), CSA Certified (LR50962)
CC Number
CC029A
Duty
Continuous
Frame
182T
Full Load Amps
5.1-4.6/2.4
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Hazardous Location Class
1 C,D / 2 F,G
Horsepower
1-1/2
Hz
60
Insulation Class
F
Length Less Shaft
12-1/8 in
Maximum Ambient Temperature
40 Degrees C
Motor Application
Hazardous Location
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
T-Stat
NEMA Design
B
Nameplate RPM
1165
Nominal Efficiency
87.5 %
Overall Length
14-7/8 in
Phase
3
Shaft Diameter
1-1/8 in
Shaft Length
2-3/4 in
Temperature Code
T4
Voltage
208-230/460
