OEM#: 00118OT3E143TC-SNew OEM Original Outright

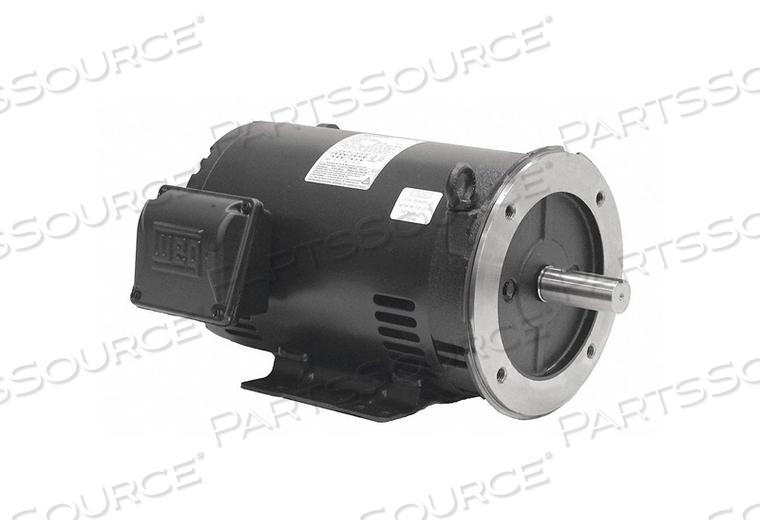

MOTOR 3-PH 1 HP 1760 143/5TC 1.5A by WEG
Your price:
$563.73 each
OEM#: 00118OT3E143TC-SMOTOR 3-PH 1 HP 1760 143/5TC 1.5A by WEG
New OEM Original Outright
Your price:
$563.73 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 00118OT3E143TC-S Key Specs
Item
MOTOR 3-PH 1 HP 1760 143/5TC 1.5A
OEM
WEG
OEM #
00118OT3E143TC-S
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
143/5TC
Full Load Amps
3.3-3/1.5
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Does not Contain Formaldehyde
HP
1 hp
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
9-21/64 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1760
Nominal Efficiency
85.5 %
Number of Speeds
1
Overall Length
11-9/16 in
Phase
3
RPM Group
1701-1800
RPM Range
1701-1800
Shaft Diameter
7/8 in
Shaft Length
2-1/4 in
Standards
CSA (70014057), UL (E104590
Voltage
208-230/460
