OEM#: 00118ES1B56C-SNew OEM Original Outright

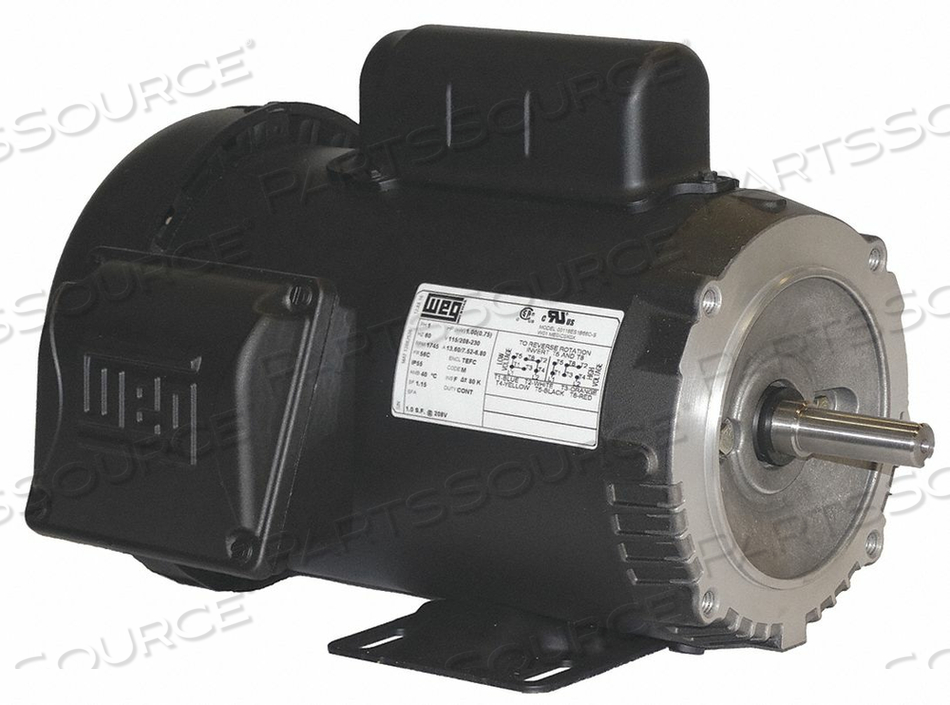

GENERAL PURPOSE MOTOR 1 HP 56 FRAME by WEG
Your price:
$830.30 each
OEM#: 00118ES1B56C-SGENERAL PURPOSE MOTOR 1 HP 56 FRAME by WEG
New OEM Original Outright
Your price:
$830.30 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 00118ES1B56C-S Key Specs
Item
GENERAL PURPOSE MOTOR 1 HP 56 FRAME
OEM
WEG
OEM #
00118ES1B56C-S
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Approvals, Certifications & Standards
CSA, UL
Duty
Continuous
Frame
56C
Full Load Amps
13.6/7.5-6.8
Horsepower
1
Hz
60
Insulation Class
F
Inverter Rated
No
Length Less Shaft
12-1/16 in
Maximum Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1745
Nominal Efficiency
71 %
Number of Speeds
1
Overall Length
13-15/16 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Voltage
115/208-230
