OEM#: U7P1DCNew OEM Original Outright
MTR 3PH 7.5HP 3600 208-230/460V EFF 91.7 by Usem
Your price:
$1,555.42 each

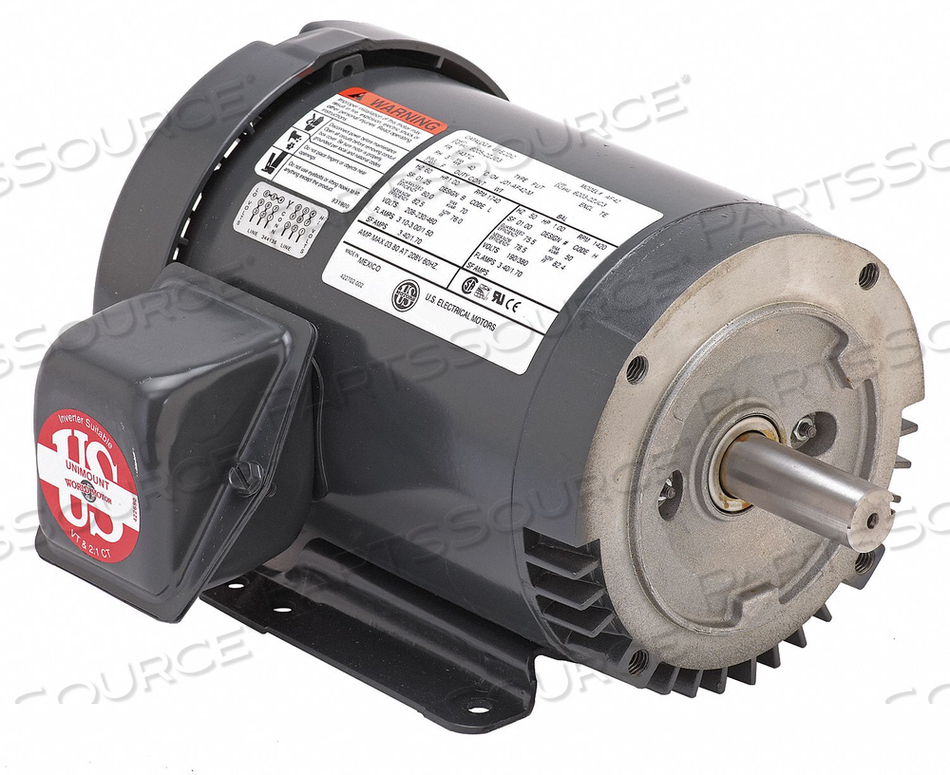

OEM#: U7P1DCMTR 3PH 7.5HP 3600 208-230/460V EFF 91.7 by Usem
New OEM Original Outright
Your price:
$1,555.42 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: U7P1DC Key Specs
Item
MTR 3PH 7.5HP 3600 208-230/460V EFF 91.7
OEM
Usem
OEM #
U7P1DC
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC030A
Country of Origin
Mexico
Duty
Continuous
Frame
213TC
Full Load Amps
19.7-17.9/8.9
Green Certification or Other Recognition
NEMA Premium(R) Rated
HP
7-1/2 hp
Hz
60/50
Ins. Class
F
Length Less Shaft
15-1/4 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Aluminum
Motor Mounting Position
Horizontal or Vertical Shaft Down
Motor Mounting Type
Face/Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3600
Nominal Efficiency
91 %
Number of Speeds
1
Overall Length
18-5/8 in
Phase
3
RPM Group
3001-3600
RPM Range
3001-3600
Shaft Diameter
1-3/8 in
Shaft Length
3-3/8 in
Standards
CE, CSA, UL
Voltage
208-230/460
