OEM#: U1P2DCNew OEM Original Outright

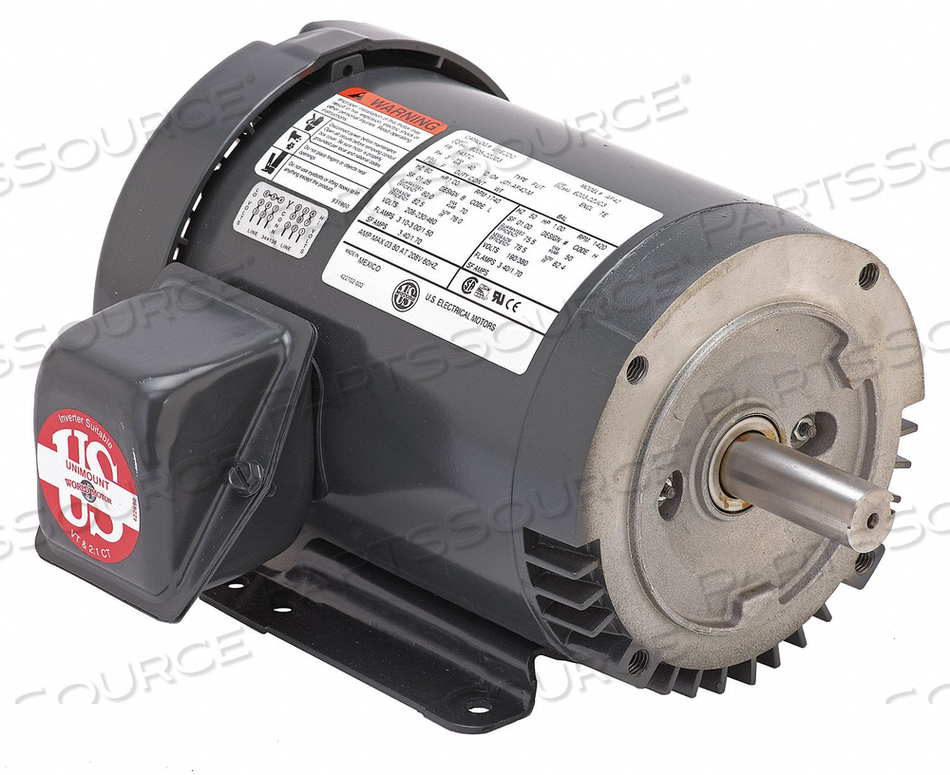

MTR 3PH 1HP 1800RPM 208-230/460 EFF 85.5 by Usem
Your price:
$630.99 each
OEM#: U1P2DCMTR 3PH 1HP 1800RPM 208-230/460 EFF 85.5 by Usem
New OEM Original Outright
Your price:
$630.99 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: U1P2DC Key Specs
Item
MTR 3PH 1HP 1800RPM 208-230/460 EFF 85.5
OEM
Usem
OEM #
U1P2DC
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC030A
Country of Origin
Mexico
Duty
Continuous
Frame
143TC
Full Load Amps
3/1.5
Green Certification or Other Recognition
NEMA Premium(R) Rated
HP
1 hp
Hz
60/50
Ins. Class
F
Length Less Shaft
9-7/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Steel
Motor Mounting Position
Horizontal or Vertical Shaft Down
Motor Mounting Type
Face/Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1800
Nominal Efficiency
85.5 %
Number of Speeds
1
Overall Length
12-1/8 in
Phase
3
RPM Group
1701-1800
RPM Range
1701-1800
Shaft Diameter
7/8 in
Shaft Length
2-1/4 in
Standards
CE, CSA, UL
Voltage
230/460
