OEM#: U15P1AFNew OEM Original Outright

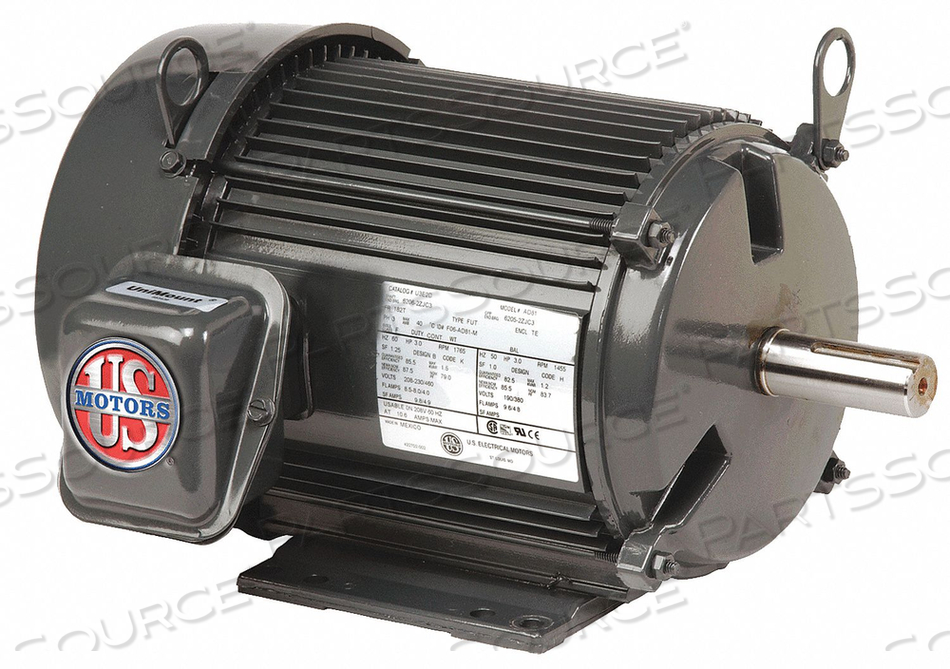

MTR 3PH 15 HP 3600 208-230/460V EFF 91.0 by Usem
Your price:
$2,087.39 each
OEM#: U15P1AFMTR 3PH 15 HP 3600 208-230/460V EFF 91.0 by Usem
New OEM Original Outright
Your price:
$2,087.39 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: U15P1AF Key Specs
Item
MTR 3PH 15 HP 3600 208-230/460V EFF 91.0
OEM
Usem
OEM #
U15P1AF
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC030A
Country of Origin
Mexico
Duty
Continuous
Frame
215T
Full Load Amps
35/17.4
Green Certification or Other Recognition
NEMA Premium(R) Rated
HP
15 hp
Hz
60/50
Ins. Class
F
Length Less Shaft
18-1/4 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Aluminum
Motor Mounting Position
Horizontal or Vertical Shaft Down
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3600
Nominal Efficiency
91 %
Number of Speeds
1
Overall Length
20-1/2 in
Phase
3
RPM Group
3001-3600
RPM Range
3001-3600
Shaft Diameter
1-3/8 in
Shaft Length
3-3/8 in
Standards
CE, CSA, UL
Voltage
230/460
