OEM#: U10P3DNew OEM Original Outright

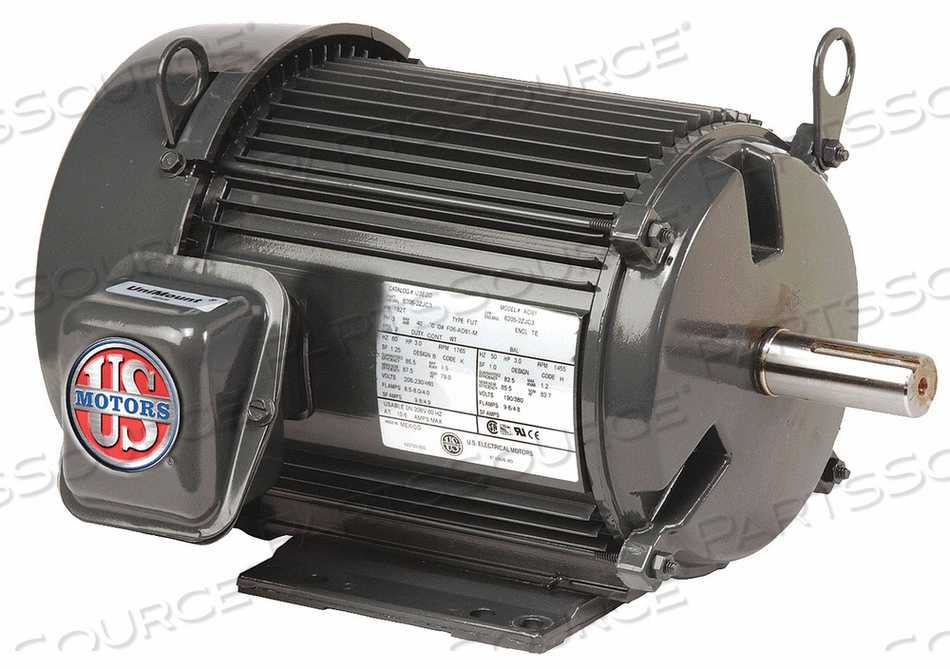

MTR 3PH 10 HP 1200 208-230/460V EFF 91.7 by Usem
Your price:
$2,668.52 each
OEM#: U10P3DMTR 3PH 10 HP 1200 208-230/460V EFF 91.7 by Usem
New OEM Original Outright
Your price:
$2,668.52 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: U10P3D Key Specs
Item
MTR 3PH 10 HP 1200 208-230/460V EFF 91.7
OEM
Usem
OEM #
U10P3D
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC030A
Country of Origin
Mexico
Duty
Continuous
Frame
256T
Full Load Amps
27.1-24.6/12.3
Green Certification or Other Recognition
NEMA Premium(R) Rated
HP
10 hp
Hz
60/50
Ins. Class
F
Length Less Shaft
21-5/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Aluminum
Motor Mounting Position
Horizontal or Vertical Shaft Down
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1200
Nominal Efficiency
91.7 %
Number of Speeds
1
Overall Length
25-5/8 in
Phase
3
RPM Group
1101-1200
RPM Range
1101-1200
Shaft Diameter
1-5/8 in
Shaft Length
4 in
Standards
CE, CSA, UL
Voltage
208-230/460
