OEM#: FD34CM2PNew OEM Original Outright

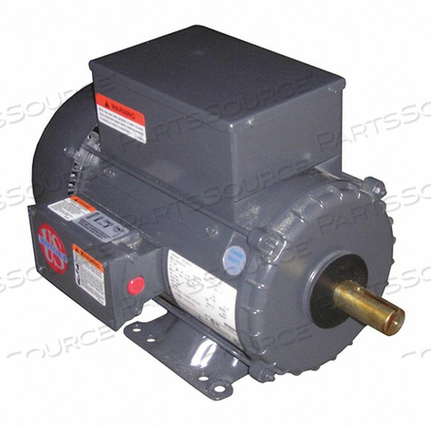

HIGH TORQUE FARM DUTY MOTOR 3/4 HP by U.S. Motors
Your price:
$325.80 each $457.19 Savings: $131.39 (29%)
OEM#: FD34CM2PHIGH TORQUE FARM DUTY MOTOR 3/4 HP by U.S. Motors
New OEM Original Outright
Your price:
$325.80 each
$457.19 Savings: $131.39 (29%)
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: FD34CM2P Key Specs
Item
HIGH TORQUE FARM DUTY MOTOR 3/4 HP
OEM
U.S. Motors
OEM #
FD34CM2P
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Capacitor Required
Yes
Duty Cycle
Continuous
Frame
56
Full Load Amps
11.4/5.7
HP
3/4
Hz
60
Ins. Class
B
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Length Less Shaft
10 in
Max Ambient Temperature
40 Degrees C
Motor Application
Farm Duty
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Auger
Motor Thermal Protection
Manual
Nameplate RPM
1,725
Nominal Efficiency
69 %
Number of Speeds
1
Overall Length
11-15/16 in
Phase
Single
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified, UL Recognized
Usable @ 200V
No
Usable @ 208V
No
Voltage
115/230V AC
Weight
30.7 lb
