5/5.8kW Single-Phase Metered PDU, 208/240V Outlets (6-C19 & 24-C13), L6-30P, 10ft Cord, 0U Vertical
Asset Information
2-Year Limited Warranty
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

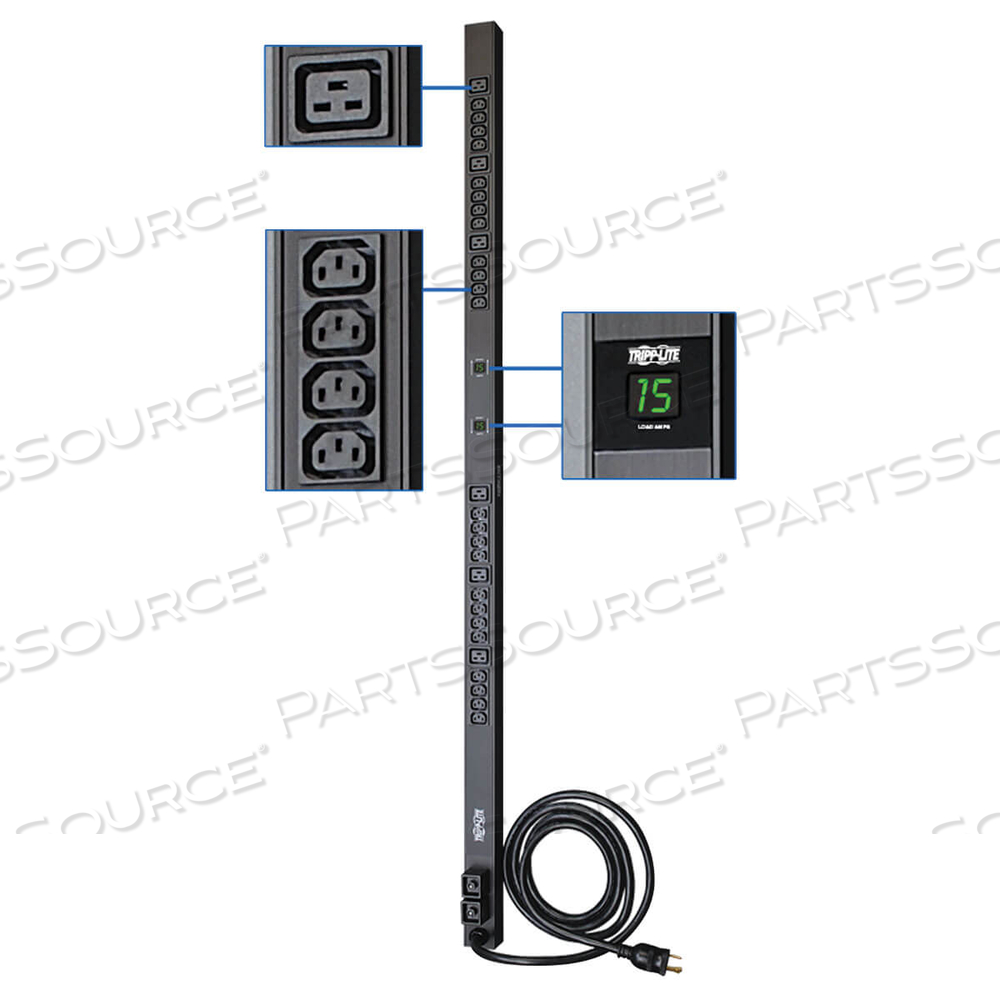

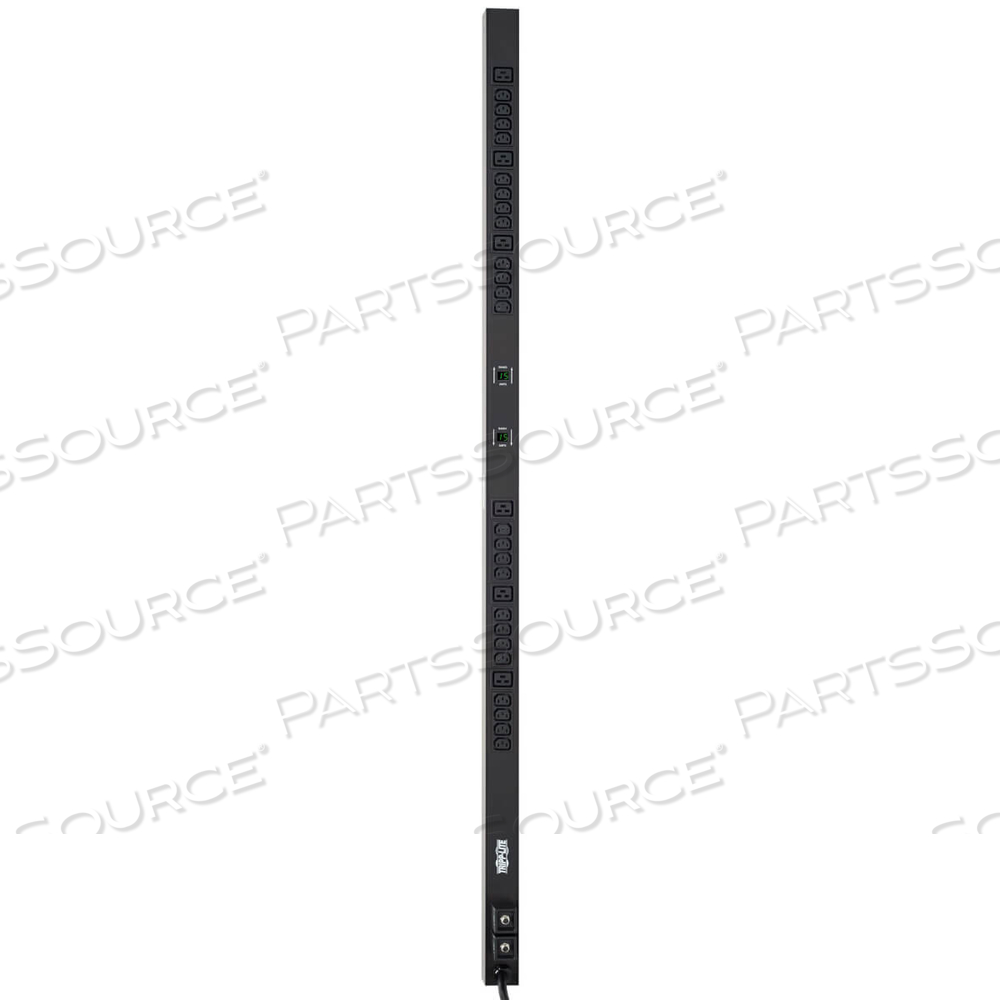

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. Included C20 and C14 plug-lock inserts connect to your components’ plugs to ensure they remain connected and continuously powered.
- Package Includes:
• PDUMV30HV 63.75 inch Metered PDU
• Plug-lock inserts (6 C20, 24 C14)
• Spare installation buttons, 2.9 mm/4.6 mm
• Set of mounting brackets and installation hardware
• Owner's Manual
Features
- 30 outlets (6 C19, 24 C13) in two separately breakered load banks
- Attached 10ft / 3m cord with NEMA L6-30P input plug
- Metered single phase 30A 208/240V, 0U 63.75in / 162cm vertical rackmount PDU
- Pair of digital meters report output current in amps for each load bank
- Ready for immediate toolless 0U installation
Technical Specs
P/N: PDUMV30HV Key Specs
Item
PDU METERED 208V / 240V 30A 6 C19 24, C13 L6-30P VERTICAL 0URM
OEM
Tripp Lite
OEM #
PDUMV30HV
Condition
New OEM Original
Returnable
No
Warranty
Other (See Notes)
Dimensions (WxDxH)
2.2 in x 3.7 in x 63.8 in
Input Connectors
1 x power NEMA L6-30
Input Voltage
AC 208/240 V
Output Voltage
AC 208/240 V
Output connectors
24 x power IEC 60320 C13 - 6 x power IEC 60320 C19
Power Capacity
5.8 kW
Rack Size
0U
Weight
7.94 lbs
