OEM#: PDUMV20-72New OEM Original Outright
POWER STRIP 36 OUTLET by Tripp Lite
Your price:
$288.53 each $441.29 Savings: $152.76 (35%)
OEM#: PDUMV20-72POWER STRIP 36 OUTLET by Tripp Lite
New OEM Original Outright
Your price:
$288.53 each
$441.29 Savings: $152.76 (35%)
1.9kW Single-Phase Metered PDU, 120V Outlets (36 5-15/20R), L5-20P/5-20P adapter, 0U Vertical, 72-in.
Asset Information
2-Year Limited Warranty
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Package Includes:
• PDUMV20-72 Metered Vertical PDU
• (1) L5-20P to 5-20P plug adapter
• Mounting hardware and spare mounting buttons
• Instruction manual with warranty information
Features

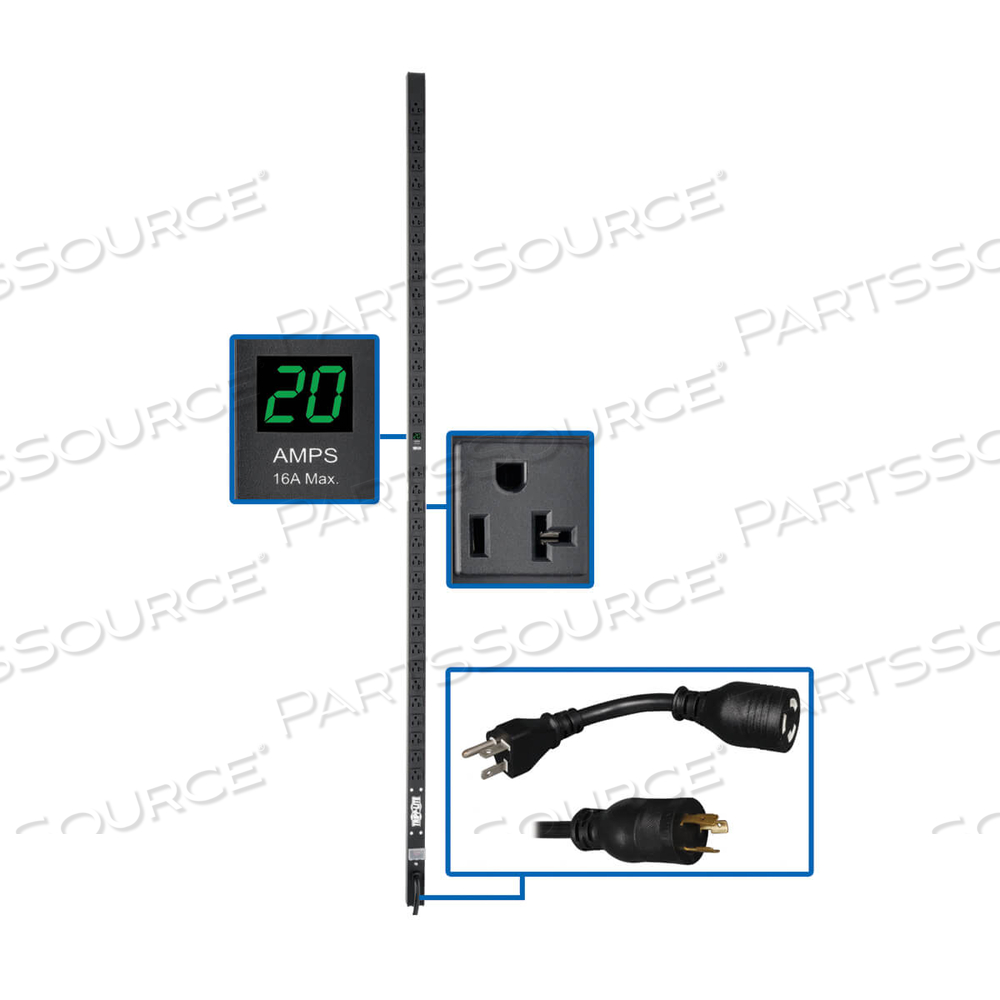

- 36 NEMA 5-15/20R outlets
- Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter
- Metered single phase 120V 20A 0U 72-in. / 61cm vertical rackmount PDU
- Toolless button mount and bolt-down bracket installation hardware included
- Two-digit current meter reports output current in amps
Technical Specs
P/N: PDUMV20-72 Key Specs
Item
POWER STRIP 36 OUTLET
OEM
Tripp Lite
OEM #
PDUMV20-72
Condition
New OEM Original
Returnable
No
Warranty
Other (See Notes)
AC Input
NEMA 5-20P; NEMA L5-20P
AC Outlets
36
AC Output
NEMA 5-15/20R
Amperage Rating
20 A
Cord Length
15 ft
Dimensions (WxDxH)
1.8 in x 1.3 in x 72 in
Housing Material
Aluminum
Input Connectors
1 x power NEMA L5-20
Input Voltage
AC 120 V
Mounting Type
Rack; Vertical
Output Voltage
AC 120 V
Output connectors
36 x power NEMA 5-15/20
Overload Protection
Circuit Breaker
Power Capacity
1.9 kW
Rack Size
0U
Region
North America
Standards and Approvals
CSA; FCC; NOM; UL
Voltage Rating
120 V
Weight
5.51 lbs
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
