20000VA 18000W UPS SMART ONLINE RACKMOUNT 20KVA PDU 200-240V 12U

HomeTripp LiteSU20KRTG
20000VA 18000W UPS SMART ONLINE RACKMOUNT 20KVA PDU 200-240V 12U
20000VA 18000W UPS SMART ONLINE RACKMOUNT 20KVA PDU 200-240V 12U
20000VA 18000W UPS SMART ONLINE RACKMOUNT 20KVA PDU 200-240V 12U
20000VA 18000W UPS SMART ONLINE RACKMOUNT 20KVA PDU 200-240V 12U

20000VA 18000W UPS SMART ONLINE RACKMOUNT 20KVA PDU 200-240V 12U

Product Overview

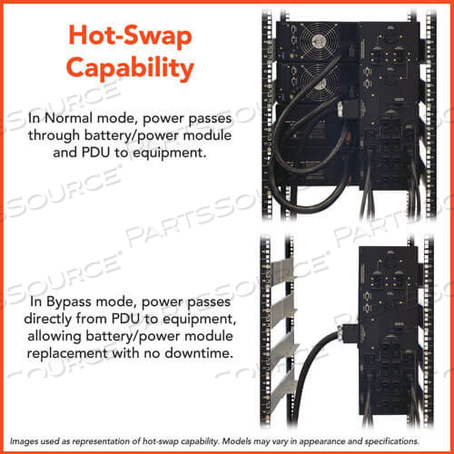

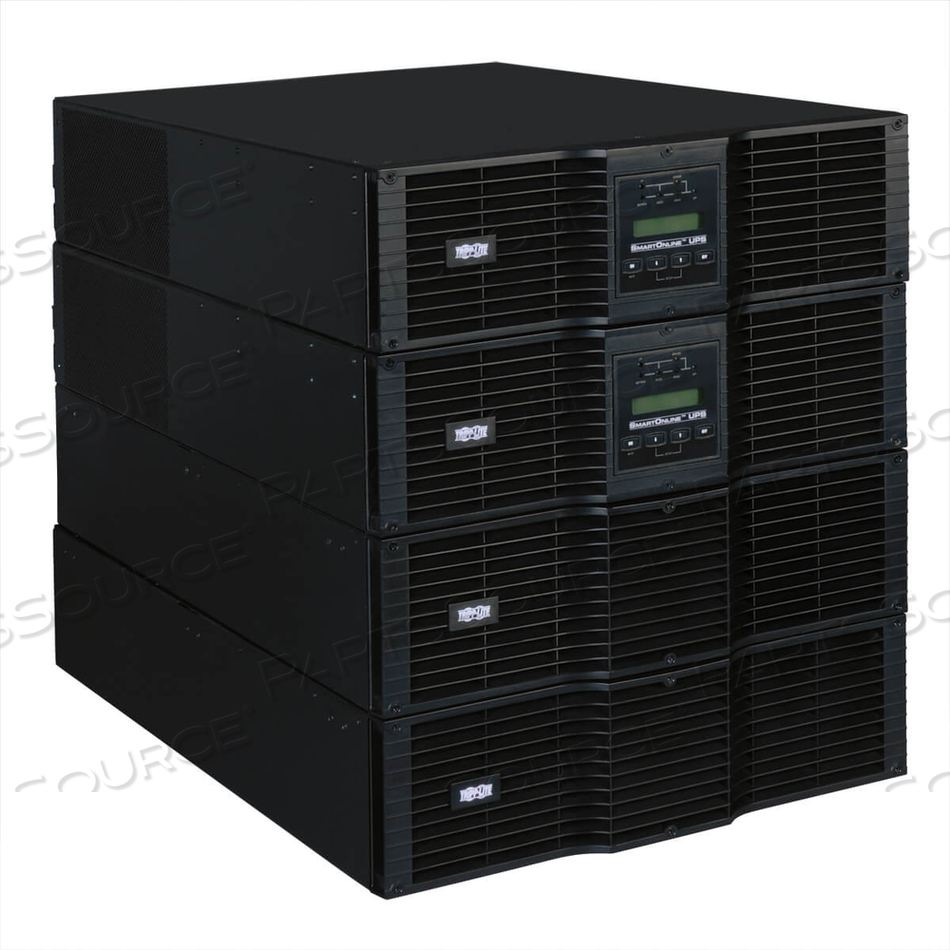

Tripp Lite SU20KRTG 20,000VA / 20kVA / 18,000 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 12U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 10kVA, and non-redundant operation at loads between 10 and 20kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

    Package Includes:
    • Two SU10000RT3UPM UPS power modules
    • Two BP240V10RT3U battery packs
    • SUPDMB20KIEC PDU with Bypass switch
    • 4-post rackmount installation rails
    • USB, DB9 & EPO cabling
Technical Specs
P/N: SU20KRTG Key Specs
Item
20000VA 18000W UPS SMART ONLINE RACKMOUNT 20KVA PDU 200-240V 12U
OEM
Tripp Lite
OEM #
SU20KRTG
Returnable
No
Warranty
Backup Time (Half/Full Load)
12.5 min/4.3 min
Dimensions (WxDxH)
32.5 in
Input Connectors
1 x hardwire
Input Voltage
AC 200/208/220/230/240 V
Input Voltage - UPS Systems
200V AC, 208V AC, 220V AC, 230V AC, 240V AC
Medical Grade
No
Number of Outlets
8
Outlet Type - UPS Systems
Hardwired
Output Voltage
AC 200/208/220/230/240 V ± 2%
Output Voltage - UPS Systems
200V AC, 208V AC, 220V AC, 230V AC, 240V AC
Output connectors
8 x power IEC 60320 C19
Power Capacity
18 kW / 20000 VA
Power Redundancy
Yes
Product Type
UPS System
Rack Size
19" - 12U
Run Time (Up To)
4.3 min at full load
UPS Type
On-Line/Double Conversion
VA Rating - UPS Systems
20 kVA
Watts - UPS Systems
18 kW
Equivalents
Tripp Lite SU20KRTG 20,000VA / 20kVA / 18,000 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 12U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 10kVA, and non-redundant operation at loads between 10 and 20kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

    Package Includes:
    • Two SU10000RT3UPM UPS power modules
    • Two BP240V10RT3U battery packs
    • SUPDMB20KIEC PDU with Bypass switch
    • 4-post rackmount installation rails
    • USB, DB9 & EPO cabling
  • SU20KRTG: Eaton Corporation: OEM Acquisition
