OEM#: SMART5000TEL3UNew OEM Original Outright

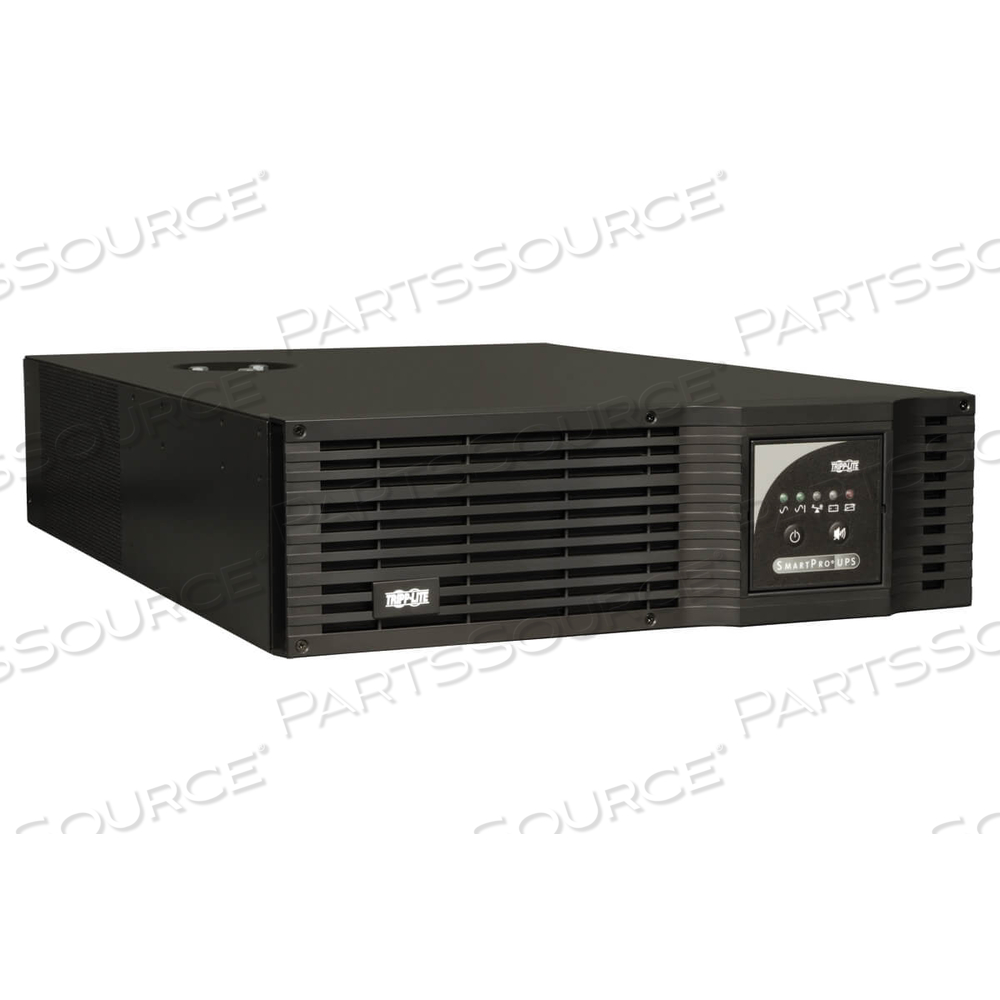

UPS 5000VA 3750W SMART RACKMOUNT AVR 208V 5KVA USB DB9 3URM by Tripp Lite

Your price:
$4,010.59 each
$6,197.00 Savings: $2,186.41 (35%)
Ready to ship
HomeTripp LiteSMART5000TEL3U
UPS 5000VA 3750W SMART RACKMOUNT AVR 208V 5KVA USB DB9 3URM by Tripp Lite
UPS 5000VA 3750W SMART RACKMOUNT AVR 208V 5KVA USB DB9 3URM by Tripp Lite

OEM#: SMART5000TEL3U
UPS 5000VA 3750W SMART RACKMOUNT AVR 208V 5KVA USB DB9 3URM by Tripp Lite

New OEM Original Outright
Your price:
$4,010.59 each
$6,197.00 Savings: $2,186.41 (35%)

SmartPro 208V 5kVA 3.75kW Line-Interactive Sine Wave UPS, 3U Rack/Tower, Network Card Options, USB, DB9 Serial

Ready to ship
Asset Information

2-Year Warranty, 3 Year With Registration

Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes USB and 2 DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).

    Package Includes:
    • SMART5000TEL3U UPS System
    • USB & DB9 Serial cabling
    • Mounting hardware
    • Instruction manual
Features
  • 208V nominal output during inputs of 174-282V, Supports 600VA 120V output
  • 5kVA / 5000VA line interactive 3U rack/tower UPS, Sine wave output
  • 97% line-mode efficiency, Hot-swappable internal batteries
  • Energy Star qualified
  • NEMA L6-30P input, 2 NEMA 5-15R, 2 L6-20R & 1 L6-30R outlets
  • USB, Serial, EPO & slot for Network Management Card options
Technical Specs
P/N: SMART5000TEL3U Key Specs
Item
UPS 5000VA 3750W SMART RACKMOUNT AVR 208V 5KVA USB DB9 3URM
OEM
Tripp Lite
OEM #
SMART5000TEL3U
Condition
New OEM Original
Returnable
No
Warranty
Other (See Notes)
Dimensions (WxDxH)
17.5 in x 22.5 in x 5.2 in
Input Connectors
1 x power NEMA L6-30
Input Voltage
AC 208/240 V
Output Voltage
AC 120/208 V + 20% / - 6%
Output connectors
1 x power NEMA L6-30 - 2 x power NEMA L6-20 - 2 x power NEMA 5-15
Power Capacity
3.75 kW / 5000 VA
Rack Size
3U
Run Time (Up To)
10 min at full load
Weight
118.17 lbs
Equivalents
Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes USB and 2 DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).

    Package Includes:
    • SMART5000TEL3U UPS System
    • USB & DB9 Serial cabling
    • Mounting hardware
    • Instruction manual
  • SMART5000TEL3U: Eaton Corporation: OEM Acquisition
