OEM#: PCI-D9-02New OEM Original Outright
2-PORT SERIAL ADAPTER CARD DB9 RS232 PCI FULL PROFILE by Tripp Lite
Your price:
$38.78 each $67.00 Savings: $28.22 (42%)
OEM#: PCI-D9-022-PORT SERIAL ADAPTER CARD DB9 RS232 PCI FULL PROFILE by Tripp Lite
New OEM Original Outright
Your price:
$38.78 each
$67.00 Savings: $28.22 (42%)
2-Port DB9 (RS-232) Serial PCI Card with 16550 UART, Full Profile
Asset Information
1-Year Limited Warranty
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

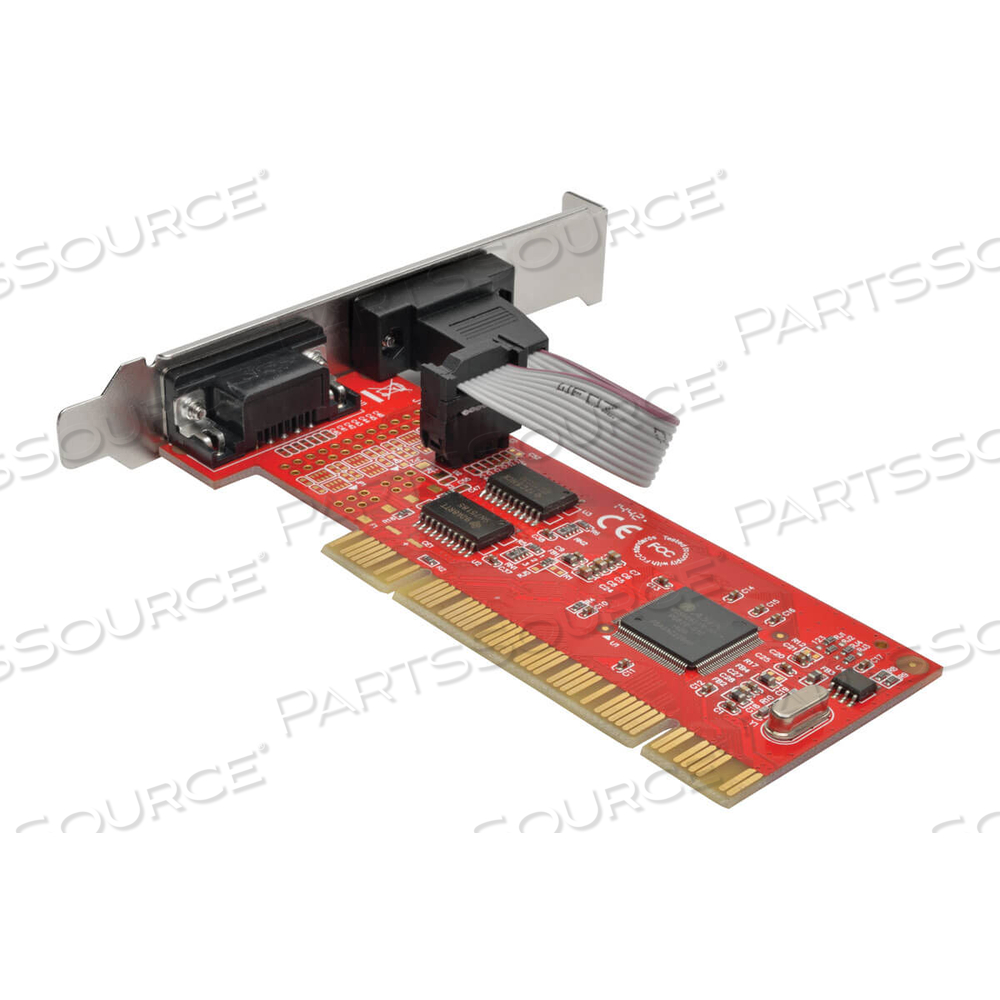

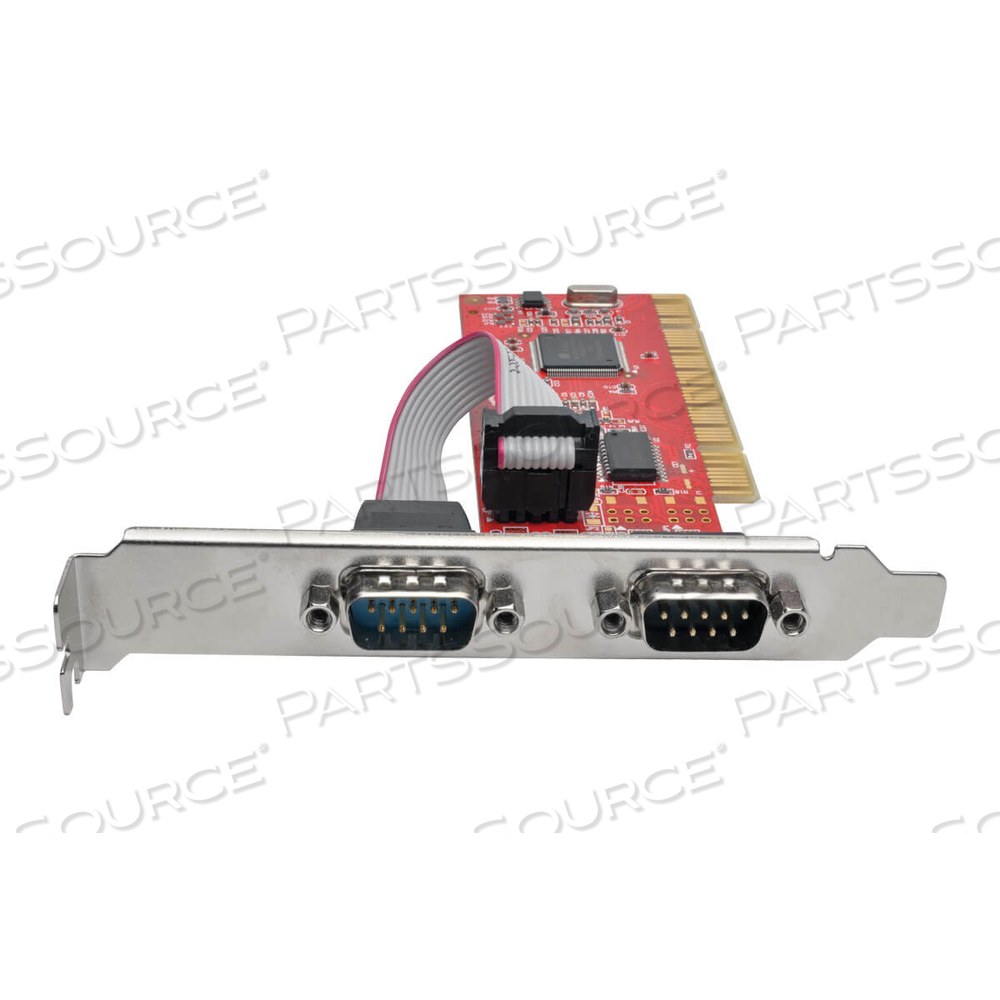

The PCI-D9-02 2-Port DB9 Serial PCI Card adds two DB9 serial ports to your computer or server. By adding the PCI-D9-02 to a computer with no DB9 ports or not enough of them, you can upgrade your DB9 capability without having to buy a new computer.Perfect for home or office, the PCI-D9-02 supports data transfer rates up to 115.2 Kbps on each port. It easily installs inside your computer in just a few minutes. The standard bracket’s interface is compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots. Allow the appropriate drivers to automatically install on your hard drive (a driver CD is included if they don’t), and connect DB9 serial extension cables (such as Tripp Lite’s P520-006) to the card’s DB9 connectors.The PCI-D9-02 is fully compliant with PCI Local Bus Specification Revision 2.3 and compatible with industrial standard 16550 UART. On-chip 256-byte depth FIFO in transmit and receive paths of each port. Supports hardware and software flow control; PCI IRQ sharing and PCI power management; 5-, 6-, 7-, 8- and 9-bit serial formats; Even, Odd, None, Space and Mark parity; and 1- or 2-stop bit operation.
- System Requirements:
• Computer with available universal 3.3V and 5V 32-bit PCI/PCI-X slot
• Windows (XP and later) or Linux (2.6.x and later)
- Package Includes:
• PCI-D9-02 2-Port DB9 Serial PCI Card with 16550 UART, Full Profile
• Driver CD
• Owner’s manual
Features
- Compatible with industrial standard 16550 UART
- Compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots
- Complies with PCI Local Bus Specification Revision 2.3
- Each port supports data transfer rates up to 115.2 Kbps
- Works with Windows® and Linux®
Technical Specs
P/N: PCI-D9-02 Key Specs
Item
2-PORT SERIAL ADAPTER CARD DB9 RS232 PCI FULL PROFILE
OEM
Tripp Lite
OEM #
PCI-D9-02
Condition
New OEM Original
Returnable
No
Warranty
Other (See Notes)
Bus Voltage
Universal (3.3 V & 5.0 V)
Color
Red
Data Link Protocol
RS-232
Data Transfer Rate
115.2 Kbps
Form Factor
Plug-in card
Interface (Bus) Type
PCI-X
PCI Specification Revision
PCI 2.3
Ports
RS-232 x 2
The PCI-D9-02 2-Port DB9 Serial PCI Card adds two DB9 serial ports to your computer or server. By adding the PCI-D9-02 to a computer with no DB9 ports or not enough of them, you can upgrade your DB9 capability without having to buy a new computer.Perfect for home or office, the PCI-D9-02 supports data transfer rates up to 115.2 Kbps on each port. It easily installs inside your computer in just a few minutes. The standard bracket’s interface is compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots. Allow the appropriate drivers to automatically install on your hard drive (a driver CD is included if they don’t), and connect DB9 serial extension cables (such as Tripp Lite’s P520-006) to the card’s DB9 connectors.The PCI-D9-02 is fully compliant with PCI Local Bus Specification Revision 2.3 and compatible with industrial standard 16550 UART. On-chip 256-byte depth FIFO in transmit and receive paths of each port. Supports hardware and software flow control; PCI IRQ sharing and PCI power management; 5-, 6-, 7-, 8- and 9-bit serial formats; Even, Odd, None, Space and Mark parity; and 1- or 2-stop bit operation.
- System Requirements:
• Computer with available universal 3.3V and 5V 32-bit PCI/PCI-X slot
• Windows (XP and later) or Linux (2.6.x and later)
- Package Includes:
• PCI-D9-02 2-Port DB9 Serial PCI Card with 16550 UART, Full Profile
• Driver CD
• Owner’s manual
