OEM#: IS600HGDVNew OEM Original Outright

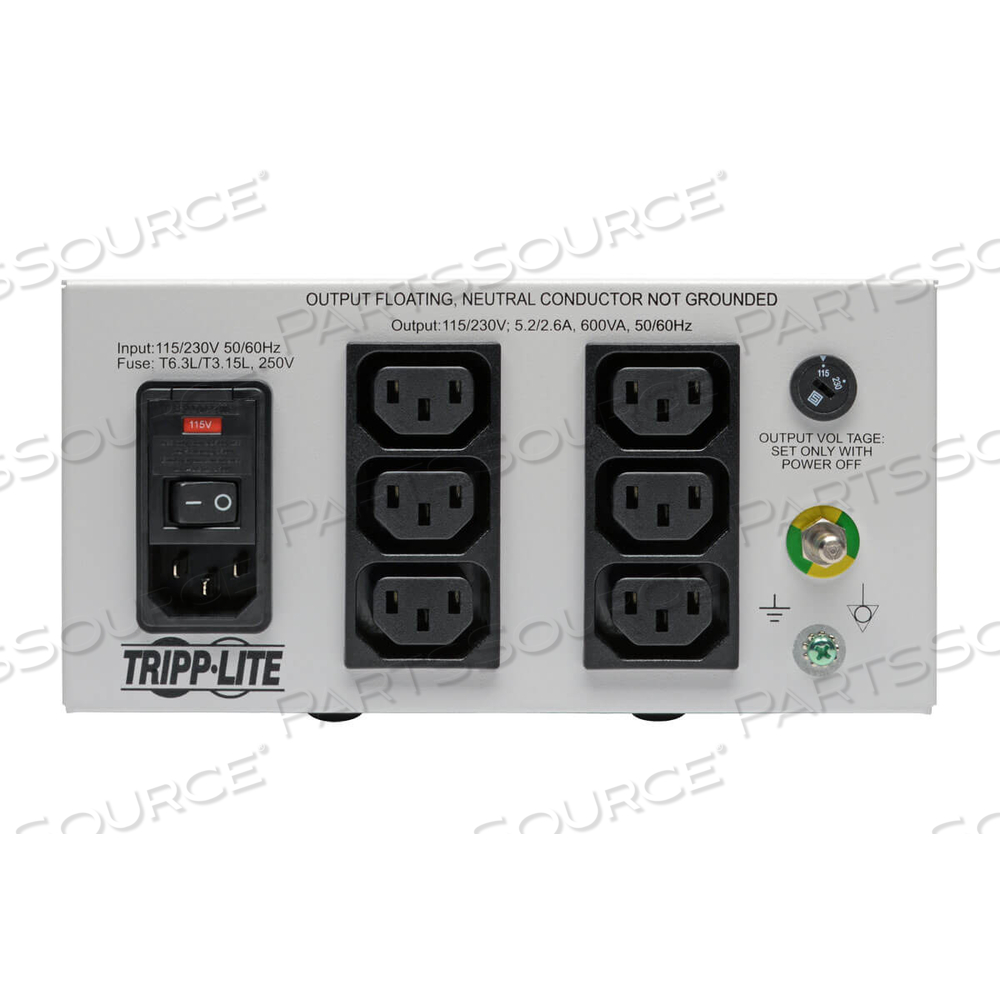

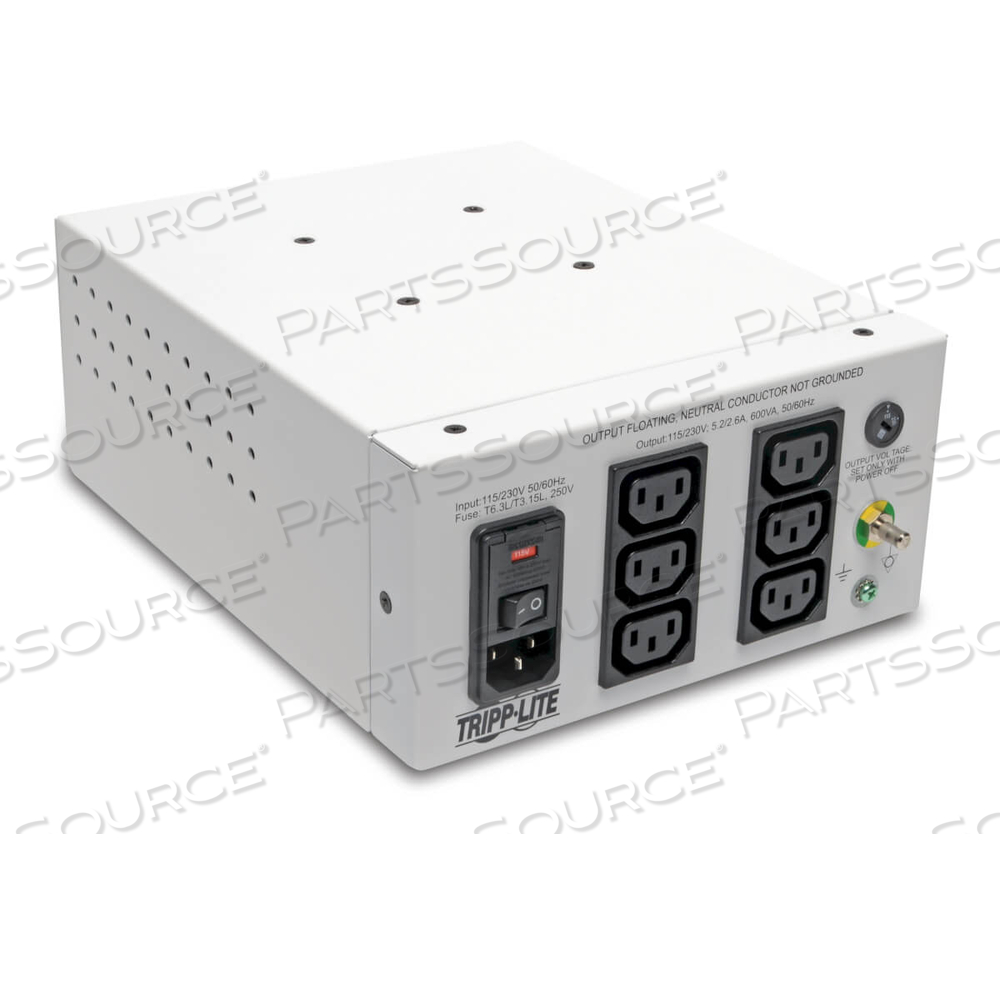

115/230V 600W C14 - C13 DUAL VOLTAGE HOSPITAL GRADE ISOLATION TRANSFORMER - WHITE by Tripp Lite
Your price:
$1,264.12 each $1,440.40 Savings: $176.28 (12%)
View All
OEM#: IS600HGDV115/230V 600W C14 - C13 DUAL VOLTAGE HOSPITAL GRADE ISOLATION TRANSFORMER - WHITE by Tripp Lite
New OEM Original Outright
Your price:
$1,264.12 each
$1,440.40 Savings: $176.28 (12%)
Isolator Series Dual-Voltage 115/230V 600W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 6 C13 Outlets
Asset Information
1-Year Limited Warranty
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
The IS600HGDV Isolator® Series Dual-Voltage 115/230V 600W 50/60Hz Medical-Grade™ Transformer with full CAN/ES/IEC/EN 60601-1 listing is ideal for protecting sensitive electronic equipment in patient-care vicinities. It can be configured for either step-up voltage, step-down voltage or pass-through voltage operation. Along with line isolation and continuous EMI/RFI line noise filtering, its surge protection rating of 240 joules suppresses excess voltage to prevent it from damaging connected equipment.An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS600HGDV and connected equipment to levels less than 50 microamps, while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility or lightning related surge conditions. Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS600HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode. Components connect to six C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial, medical, office, network or audio/video environment. Requires a C14-to-C13 AC input cord (sold separately).
- Package Includes:
• IS600HGDV Isolator Series Dual-Voltage 115/230V 600W 60601-1 Medical-Grade Isolation Transformer
• (2) Fuse sets (115V and 230V operation)
• Input/output cable selector data sheet
• Owner's manual
Features
- Automatically shuts down all outlets in case of overload
- Cumulative leakage current less than 50 µA
- Ideal for use in any industrial, network or medical environment
- Offers complete isolation from input AC mains power
- Protects sensitive equipment from EMI/RFI line noise and surges
Technical Specs
P/N: IS600HGDV Key Specs
Item
115/230V 600W C14 - C13 DUAL VOLTAGE HOSPITAL GRADE ISOLATION TRANSFORMER - WHITE
OEM
Tripp Lite
OEM #
IS600HGDV
Condition
New OEM Original
Returnable
No
Warranty
Other (See Notes)
Certifications
ANSI/AAMI ES60601-1:2005+A2+A1, IEC60601-1 3RD EDITION +A1, CAN/CSA-C22.2 NO. 60601-1:14, CE, NOM
Color
White
Connector
C14
Connector (Second End)
(6) C13
Dimensions (WxDxH)
7.9 in x 9.8 in x 4.3 in
Frequency
50/60 HZ
Input Connectors
1 x power IEC 60320 C14
Input Voltage
AC 115/230 V
Material
Metal
Operating Temperature Range
0°-40°C (32°F - 104°F)
Output Voltage
AC 115/230 V
Output connectors
6 x power IEC 60320 C13
Power Capacity
600 Watt / 600 VA
Storage Temperature Range
-15°C - 50°C (5°F - 122°F)
Volts
115/230 V
Watts
600 W
Weight
20.37 lbs
The IS600HGDV Isolator® Series Dual-Voltage 115/230V 600W 50/60Hz Medical-Grade™ Transformer with full CAN/ES/IEC/EN 60601-1 listing is ideal for protecting sensitive electronic equipment in patient-care vicinities. It can be configured for either step-up voltage, step-down voltage or pass-through voltage operation. Along with line isolation and continuous EMI/RFI line noise filtering, its surge protection rating of 240 joules suppresses excess voltage to prevent it from damaging connected equipment.An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS600HGDV and connected equipment to levels less than 50 microamps, while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility or lightning related surge conditions. Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS600HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode. Components connect to six C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial, medical, office, network or audio/video environment. Requires a C14-to-C13 AC input cord (sold separately).
- Package Includes:
• IS600HGDV Isolator Series Dual-Voltage 115/230V 600W 60601-1 Medical-Grade Isolation Transformer
• (2) Fuse sets (115V and 230V operation)
• Input/output cable selector data sheet
• Owner's manual
