OEM#: B127A-1A1-BDBDNew OEM Original Outright

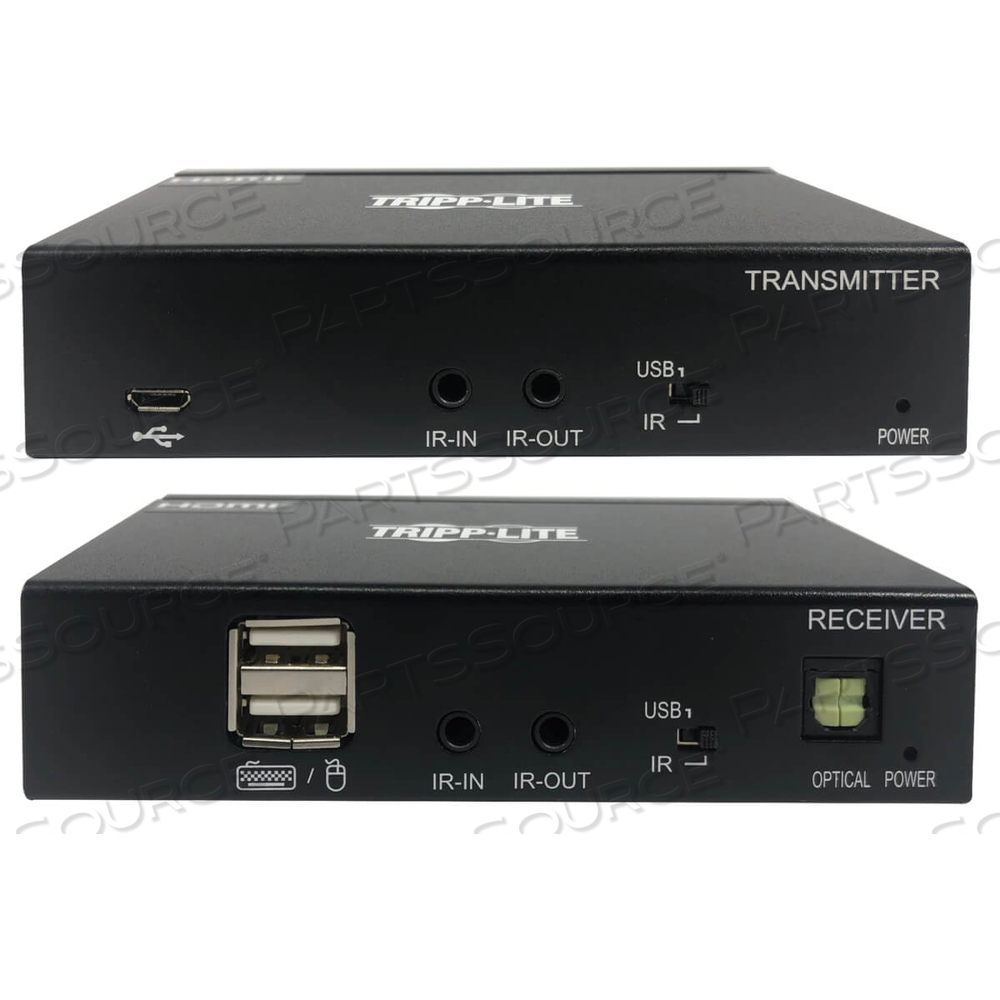

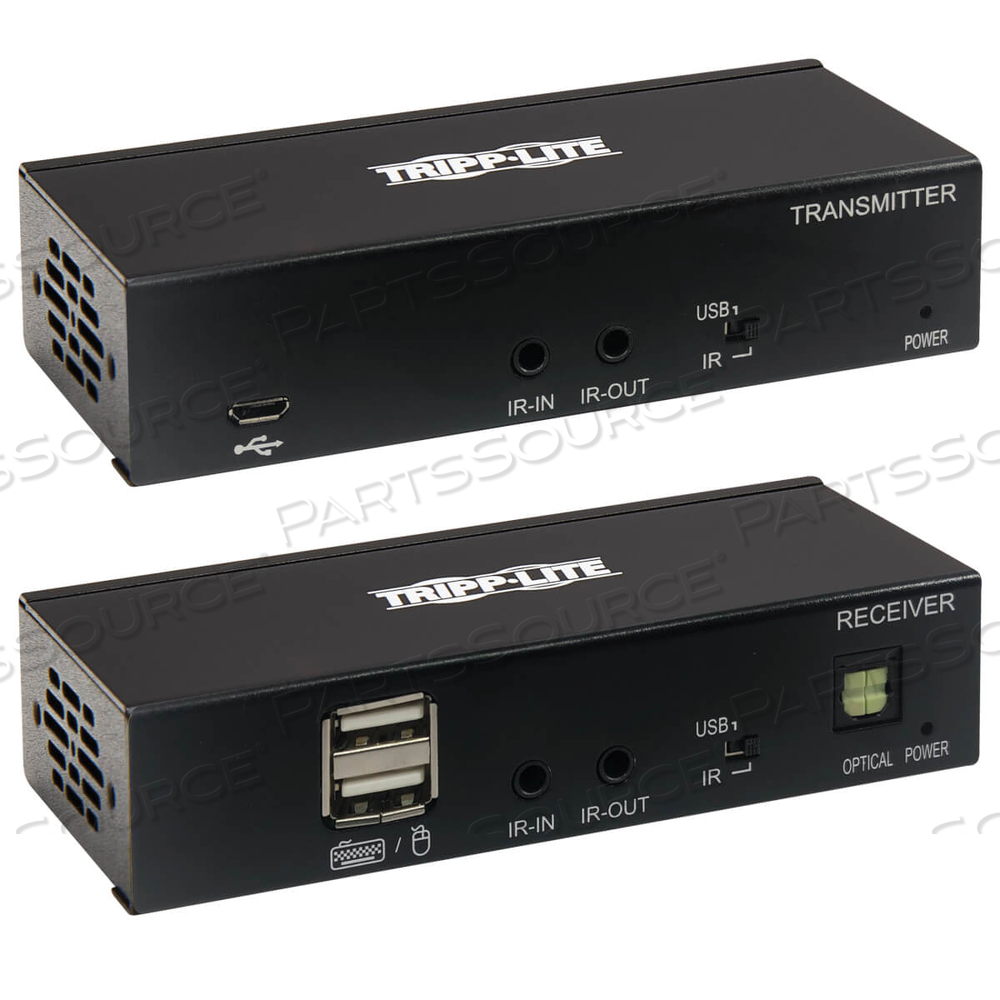

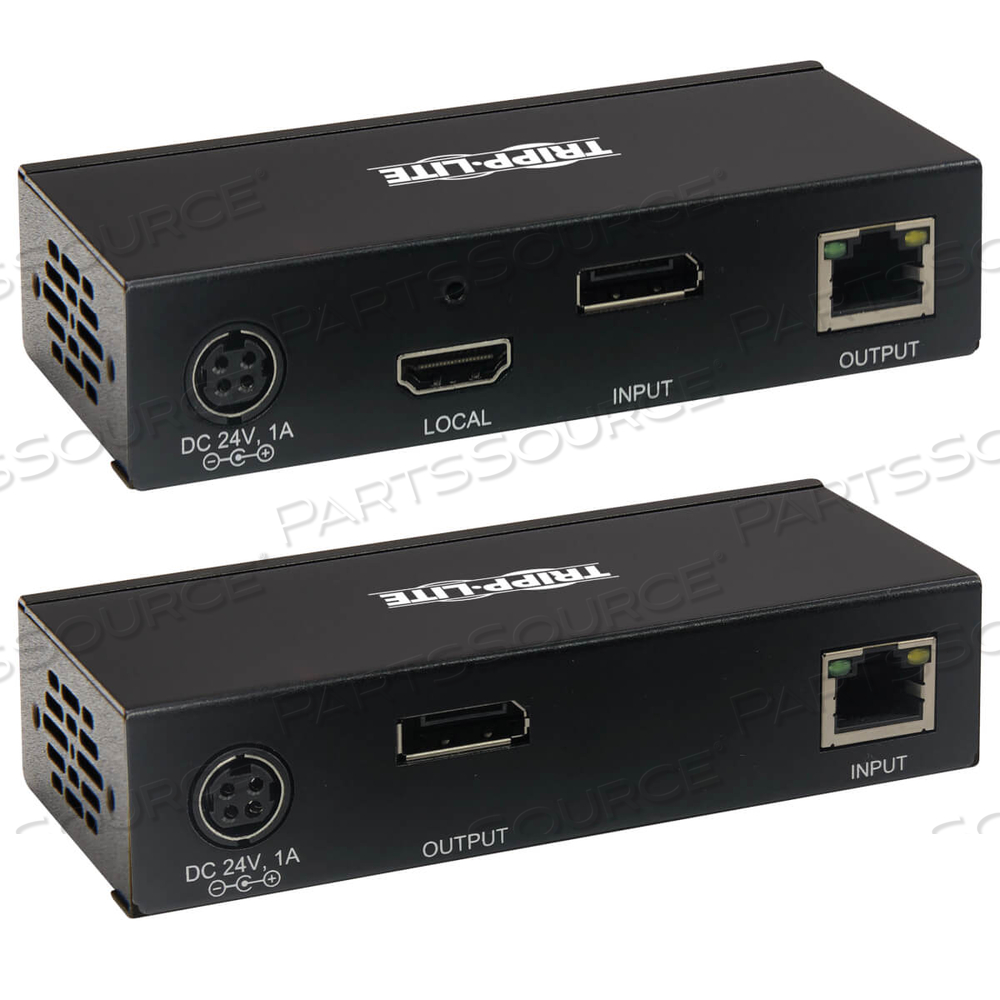

DISPLAYPORT OVER CAT 6 EXTENDER KIT by Tripp Lite
Your price:
$482.91 each $487.60 Savings: $4.69 (1%)
View All
OEM#: B127A-1A1-BDBDDISPLAYPORT OVER CAT 6 EXTENDER KIT by Tripp Lite
New OEM Original Outright
Your price:
$482.91 each
$487.60 Savings: $4.69 (1%)
Asset Information
1-Year Limited Warranty
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
DisplayPort extender kit with transmitter and receiver extends a 4K signal via Cat6 cable to a DisplayPort monitor up to 230 ft. away.
Features
- Local HDMI Port on Transmitter Supports 4K @ 30 Hz Resolution: To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable (such as P568- or P569-Series). This
- Supports UHD resolutions up to 4K @ 30 Hz (4:4:4) for crystal-clear video
- Extend touch screen ability for Interactive Flat Panel Displays
- Power over Cable (PoC) technology provides power to the receiver via Cat6 cable
- Transmitter's local port shows you the 4K image being displayed at the other end
- DIP switch selection allows bi-directional IR or USB function for controlling the source
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- DisplayPort Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls: This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses o
- Extends a 4K A/V Transmission up to 230 ft: The B127A-1A1-BDBD extends 4K signals from a DisplayPort source device to a DisplayPort monitor up to 230 feet (70 meters) away via user-supplied Cat6 cabling. By adding a B127A-010-H HDMI repeater or B127A
- Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color: The B127A-1A1-BDBD supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. HDCP 2.2
Technical Specs
P/N: B127A-1A1-BDBD Key Specs
Item
DISPLAYPORT OVER CAT 6 EXTENDER KIT
OEM
Tripp Lite
OEM #
B127A-1A1-BDBD
Condition
New OEM Original
Returnable
No
Warranty
Other (See Notes)
Approvals, Certifications & Standards
RoHS; CE (Europe); REACH; FCC (USA); Trade Agreements Act (TAA); UKCA
Color
Black
Consumer Electronics Control (CEC) Supported
Yes
EDID Compatible
Yes
Extended Mode
Yes
IR Remote Extension Support
Yes
Latency
Zero-Latency
Material of Construction
Metal
Max Supported Color Depth
36-bit Deep Color
Number of Displays
1
Number of Monitors Supported
2
Operating Temperature Range
32° to 104°F
Power Over Cable (PoC) Support
Yes
Power Source
AC Adapter
Power Source Type
AC Adapter
Rackmountable
Yes
Receiver - Number of Video Outputs
1
Receiver Power Source
AC Adapter; Power Over Cable
Receiver/Transceiver Video Output
DisplayPort
Recommended Category Cable
Cat6
Relative Humidity
0% to 85% RH, Non-Condensing
Side A - Connector 1
Displayport (Female)
Side B - Connector 1
Displayport (Female)
Signal Range
70 M
Storage Temperature Range
5° to 122°F
Technology
Cat5/5e; Cat6; HDMI; POC
Transmitter - Local Display Output
HDMI
Transmitter Video Input
DisplayPort
USB Extension Support
Yes
Video Input
Displayport (Female)
Video Output
Displayport (Female), HDMI (Female)
Video Ports
Displayport (Female), HDMI (Female)
Equivalents
DisplayPort extender kit with transmitter and receiver extends a 4K signal via Cat6 cable to a DisplayPort monitor up to 230 ft. away.
