OEM#: B070-016-19-IP2

16-PORT 1U RACK CONSOLE IP KVM SWITCH 2+1 USERS W/ 19IN. SCREEN by Tripp Lite

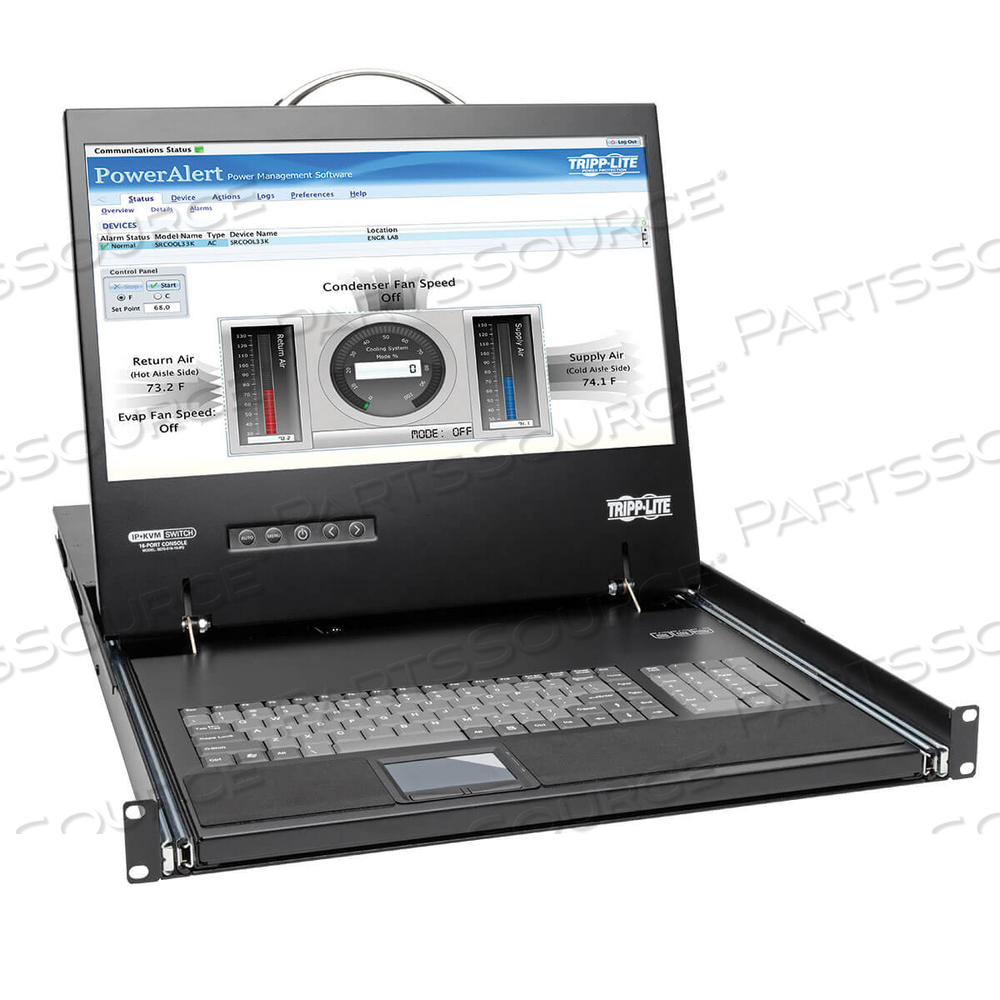

Tripp Lite’s B070-016-19-IP2 NetCommander® 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser.Connect computers/servers up to 100 feet away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use. Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column.

System Requirements:
• Computer/server with HD15 or USB port and PS/2 keyboard/mouse ports
• B078-Series SIU and Cat5e/6 cabling required for each connected computer/server
• For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.
• Windows or Linux operating system (Windows required for remote access)
• Currently not compatible with HP Gen 10 Servers
• Remote console computers require minimum Pentium 4 with 2 GB memory
• SCHUKO (P054-006) or BS-1363 (P056-006-10A) power cords required for international use

Package Includes:
• B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch
• C13 to NEMA 5-15P power cord, 6 ft.
• Rack-mounting hardware
• Quick Start Guide
