OEM#: B051-000New OEM Original Outright

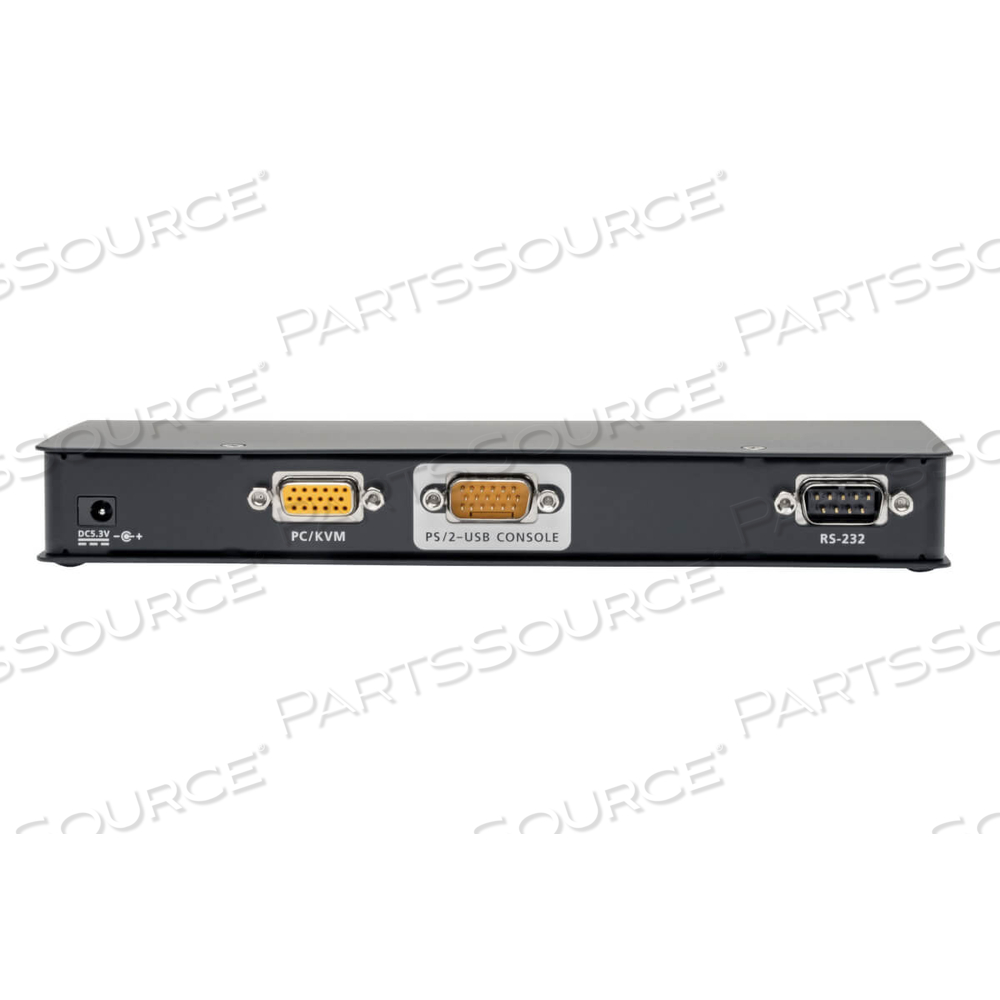

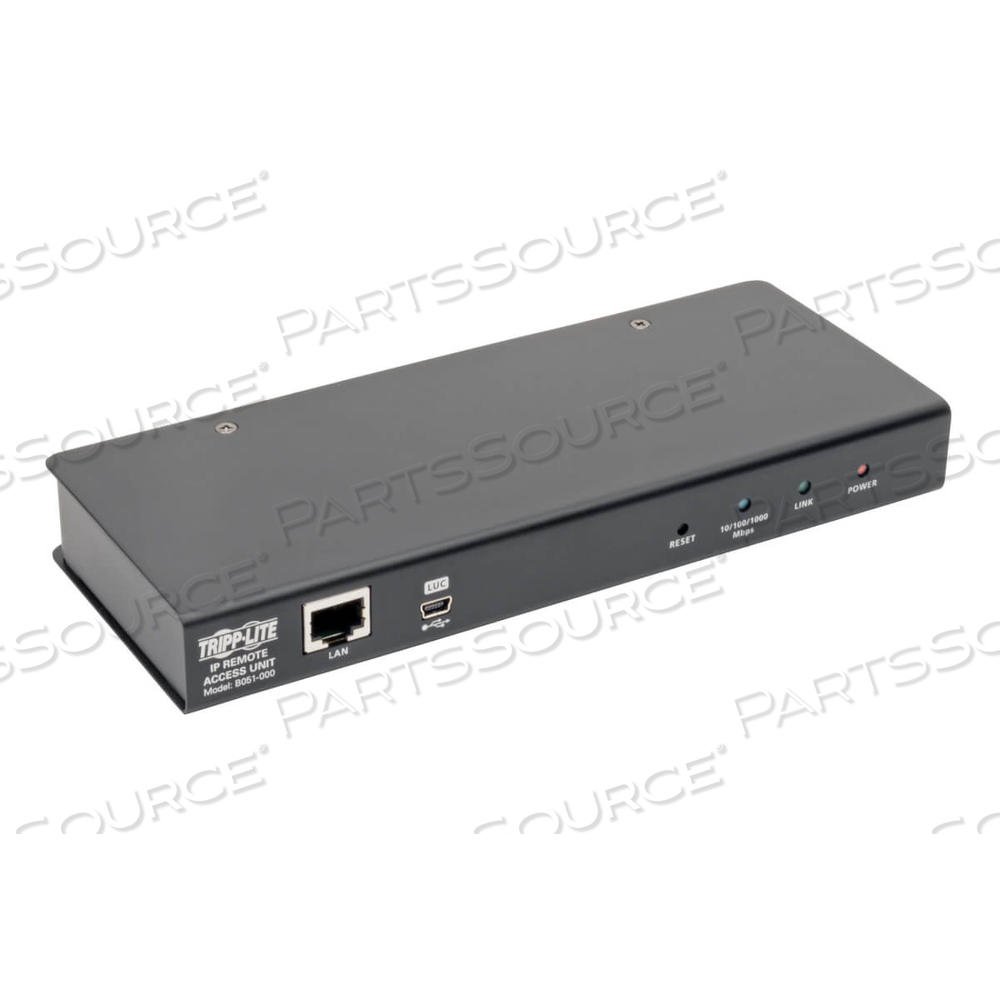

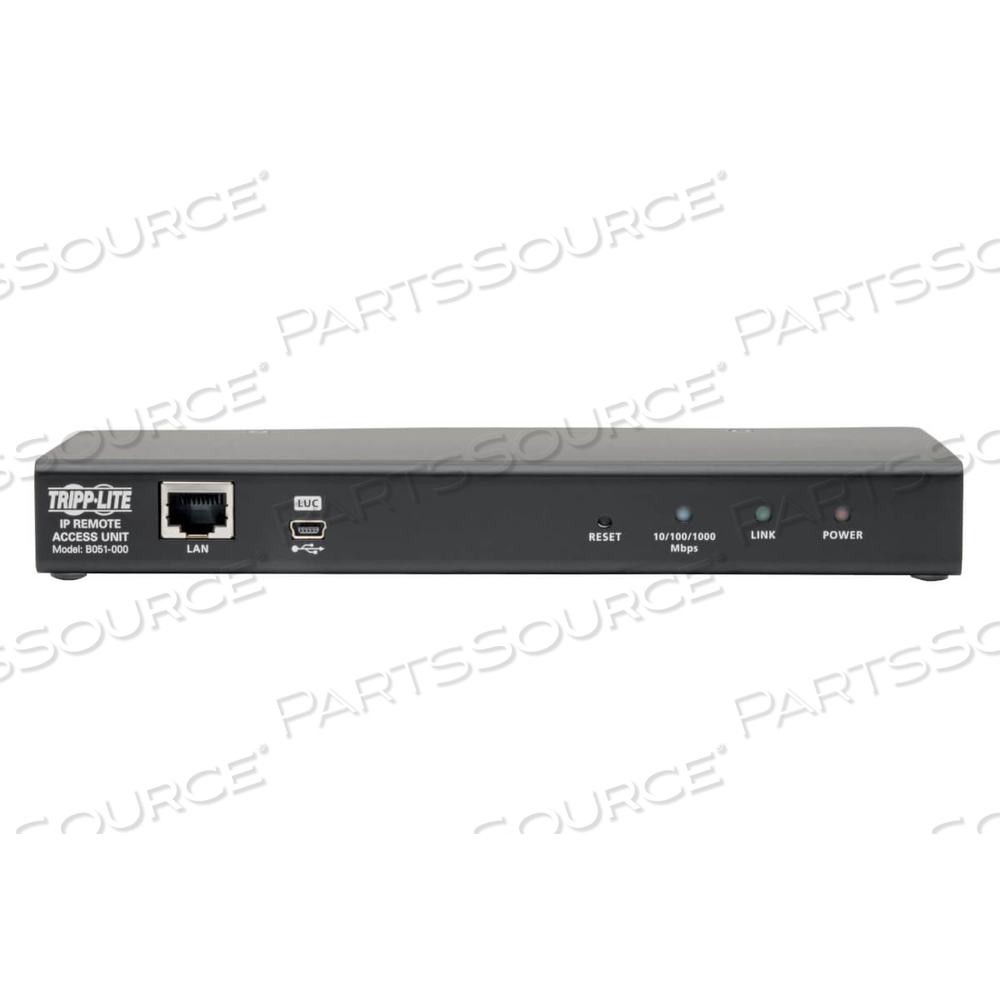

KVM SERVER REMOTE CONTROL EXTERNAL OVER IP RS-232 PORT TAA GSA by Tripp Lite
Your price:
$1,274.66 each $1,286.84 Savings: $12.18 (1%)
View All
OEM#: B051-000KVM SERVER REMOTE CONTROL EXTERNAL OVER IP RS-232 PORT TAA GSA by Tripp Lite
New OEM Original Outright
Your price:
$1,274.66 each
IP Remote Access Unit for KVM Switches and Servers
Asset Information
1-Year Limited Warranty
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
- Typical Application
- •High-density IT applications, including data centers, server rooms and network closets
- System Requirements:
Remote Console Computer Requirements
• Browsers must support 128-bit SSL encryption
• For the browser-based Java Applet and non-browser AP Java Client, the latest version of Sun’s Java Runtime Environment (JRE) must be installed and 250 MB of memory available after installation
• For the Log Server, you must have the Microsoft Jet OLEDB 4.0 or higher driver installed
• For best results, we recommend the computers used to access the switch have at least a Pentium III 1 GHz processor with their screen resolution set to 1024 x 768
• For best results, we recommend a network transfer speed of at least 512 Kbps
• For the browser-based Windows Client, at least 60 MB of memory must be available after installation
• For the non-browser Windows Client, at least 25 MB of memory must be available after installationConnected Computer/Server RequirementsComputers/servers to be connected to the B051-000 must
- Package Includes:
• B051-000 IP Remote Access Unit
• USB/PS/2 combo cable kit, 4 ft.
• USB/PS/2 combo console cable kit, 10 in.
• USB 2.0 LUC cable (5-pin USB Mini-B to USB-A M/M), 6 ft.
• External power adapter w/NEMA 1-15P plug & 5 ft. cord (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V 2.6A, Max 13W)
• Rack-mounting bracket
• DIN rail-mounting brackets
• CD w/software and owner’s manual
• Quick Start Guide
Features
- Allows Virtual Media access to storage media on remote computers for file transfers
- Compact design adaptable to DIN rail mounting or vertical 0U rack mounting
- Provides 24/7 remote access and control of a connected KVM switch or server
- Supports HD video resolutions up to 1920 x 1200 (@ 60 Hz) for premium remote viewing
- Works with all major operating systems and web browsers for maximum convenience
Technical Specs
P/N: B051-000 Key Specs
Item
KVM SERVER REMOTE CONTROL EXTERNAL OVER IP RS-232 PORT TAA GSA
OEM
Tripp Lite
OEM #
B051-000
Condition
New OEM Original
Returnable
No
Warranty
Other (See Notes)
Data Link Protocol
Ethernet, Fast Ethernet
Form Factor
External
Power
AC 120/230 V (50 - 60 Hz)
Related Parts
Certifications
- Typical Application
- •High-density IT applications, including data centers, server rooms and network closets
- System Requirements:
Remote Console Computer Requirements
• Browsers must support 128-bit SSL encryption
• For the browser-based Java Applet and non-browser AP Java Client, the latest version of Sun’s Java Runtime Environment (JRE) must be installed and 250 MB of memory available after installation
• For the Log Server, you must have the Microsoft Jet OLEDB 4.0 or higher driver installed
• For best results, we recommend the computers used to access the switch have at least a Pentium III 1 GHz processor with their screen resolution set to 1024 x 768
• For best results, we recommend a network transfer speed of at least 512 Kbps
• For the browser-based Windows Client, at least 60 MB of memory must be available after installation
• For the non-browser Windows Client, at least 25 MB of memory must be available after installationConnected Computer/Server RequirementsComputers/servers to be connected to the B051-000 must
- Package Includes:
• B051-000 IP Remote Access Unit
• USB/PS/2 combo cable kit, 4 ft.
• USB/PS/2 combo console cable kit, 10 in.
• USB 2.0 LUC cable (5-pin USB Mini-B to USB-A M/M), 6 ft.
• External power adapter w/NEMA 1-15P plug & 5 ft. cord (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V 2.6A, Max 13W)
• Rack-mounting bracket
• DIN rail-mounting brackets
• CD w/software and owner’s manual
• Quick Start Guide
Eaton Corporation
B051-000
Now Under Tripp LiteThe original manufacturer of part "B051-000" has been acquired. The item shown is the exact same part, now sold under the new brand name — no changes to form, fit, or function.
