OEM#: B020-U08-19-K

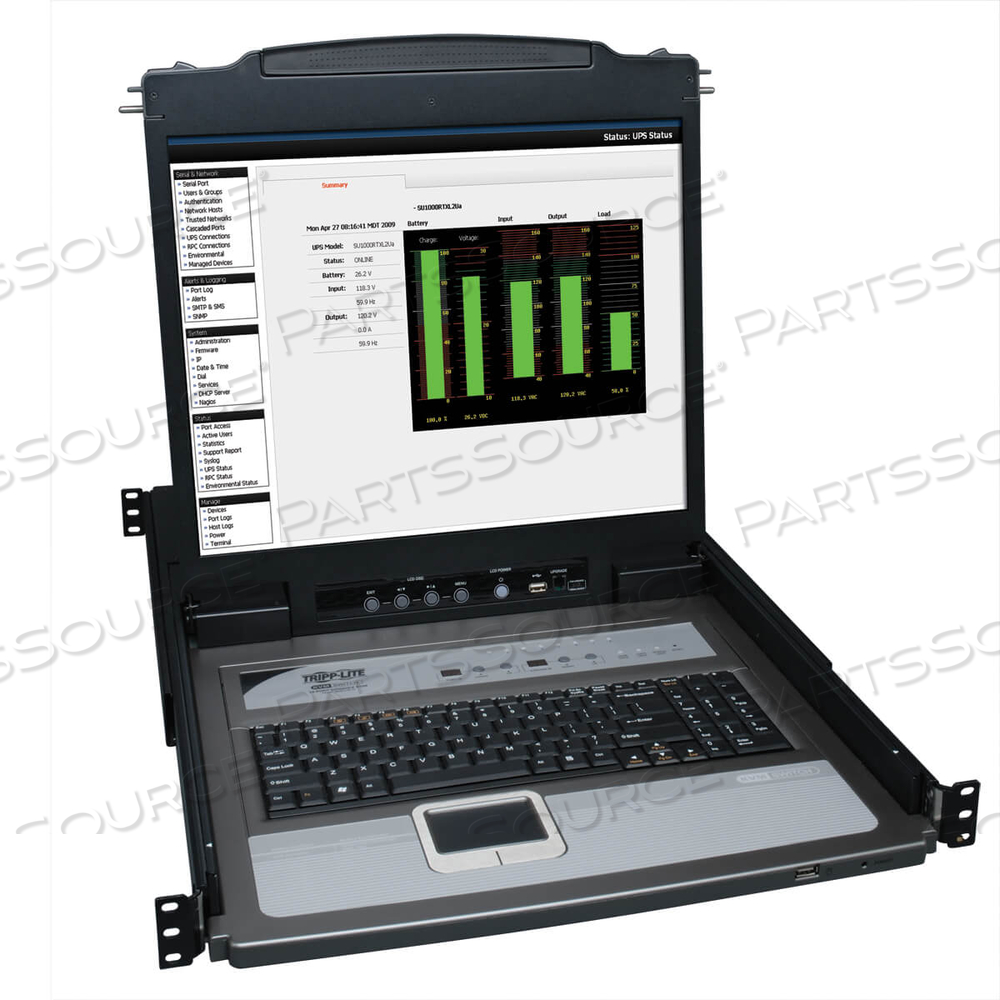

RACK CONSOLE KVM SWITCH 8-PORT 19" LCD 8 PS2/USB COMBO CABLES by Tripp Lite

Tripp Lite’s B020-U08-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers upto 256 by daisy-chaining up to 31 B022-U08 KVM switches The B020-U08-19-K has a built-in 19” LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

System Requirements:
• Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
• P778-006 USB/PS2 combo KVM cable kit is required for each connected computer/server
• Compatible with all major operating systems
• Power consumption: 120V, 60Hz, 28.5W; 230V, 50Hz, 29.1W

Package Includes:
• B020-U08-19-K 1U rackmount console KVM switch with 19” LCD
• (x8) P778-006 6 ft. USB/PS2 combo KVM cable kits
• USB/PS2 combo console cable kit
• RJ11 to DB9 firmware upgrade cable
• C13 to 5-15P power cord
• Grounding wire
• Rackmount hardware
• CD with owner's manual
• Quick start guide
