OEM#: 309KDDNew OEM Original Outright

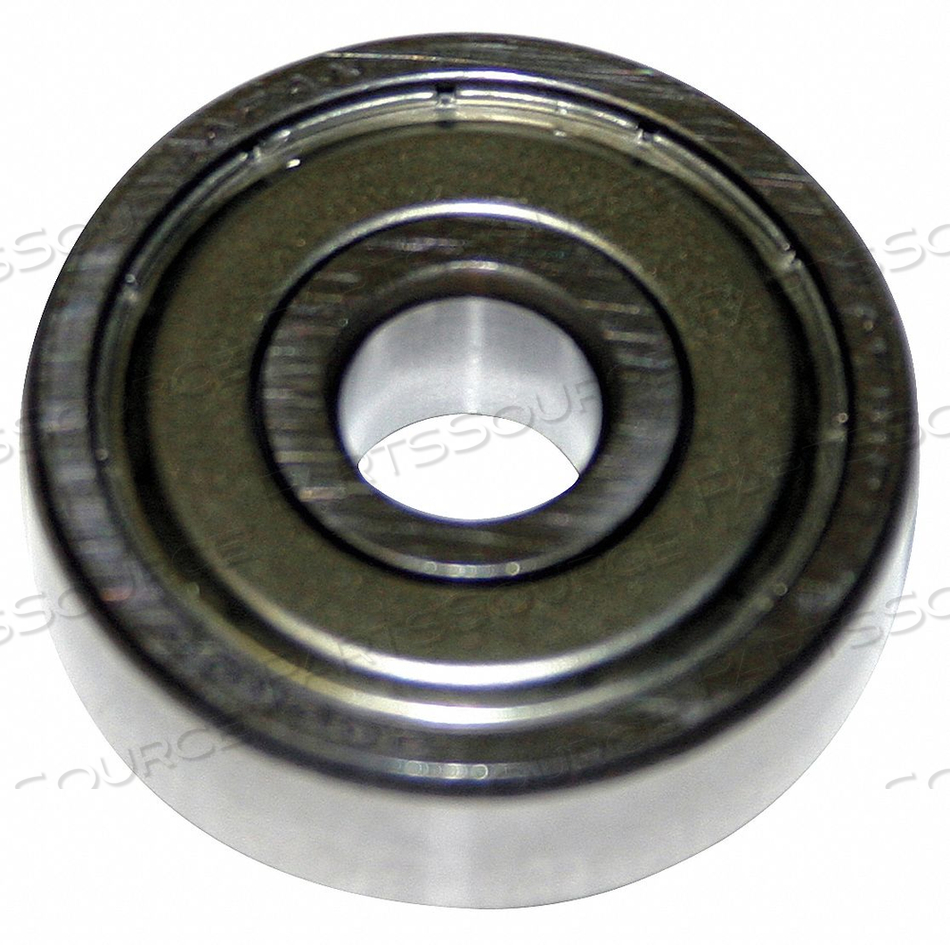

RADIAL BEARING DOUBLE SHIELD 45MM BORE by Timken

Your price:
$297.15 eachReady to ship
HomeTimken309KDD
RADIAL BEARING DOUBLE SHIELD 45MM BORE by Timken
RADIAL BEARING DOUBLE SHIELD 45MM BORE by Timken

OEM#: 309KDD
RADIAL BEARING DOUBLE SHIELD 45MM BORE by Timken

New OEM Original Outright
Your price:
$297.15 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 309KDD Key Specs
Item
RADIAL BEARING DOUBLE SHIELD 45MM BORE
OEM
Timken
OEM #
309KDD
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
ABEC Tolerance
1
Bearing Material
Steel
Bore Dia.
45 mm
Bore Tolerance
+0/-.012mm
Cage Material
Steel
Dynamic Load Capacity
13,400 lb
Industry Number
309KDD
Lubrication
Chevron SRI 2
Max. RPM
3,448 RPM
Outside Dia.
100 mm
Outside Dia. Tolerance
+0/-.015mm
Retainer Type
Snap Ring
Seal/Shield Type
Double Shielded
Shield Material
Steel
Single Row/Double Row
Single Row
Static Load Capacity
7,100 lb
Temp. Range
-60 Degrees to 200 Degrees F
Unmounted Bearing Item
Radial Ball Bearing
Width
25 mm
