OEM#: 1TSR12ZMUU+120New OEM Original Outright

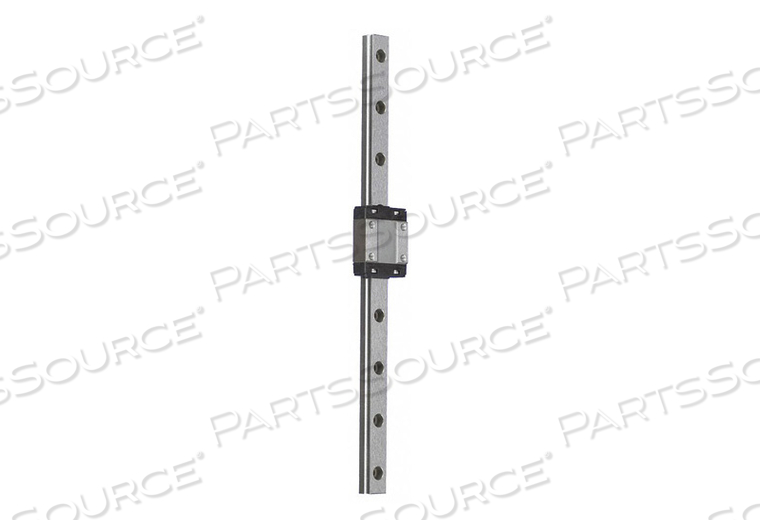

MICROGUIDE ASSY SINGLE CARRIAGE 120 MM L by Thomson

Your price:
$375.35 each
HomeThomson1tsr12zmuu120
MICROGUIDE ASSY SINGLE CARRIAGE 120 MM L by Thomson
MICROGUIDE ASSY SINGLE CARRIAGE 120 MM L by Thomson

OEM#: 1TSR12ZMUU+120
MICROGUIDE ASSY SINGLE CARRIAGE 120 MM L by Thomson

New OEM Original Outright
Your price:
$375.35 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1TSR12ZMUU+120 Key Specs
Item
MICROGUIDE ASSY SINGLE CARRIAGE 120 MM L
OEM
Thomson
OEM #
1TSR12ZMUU+120
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Approvals, Certifications & Standards
None
Base Width
12 mm
Carriage Height
10 mm
Carriage Hole Size (in)
M3 x 3.5
Carriage Length
35 mm
Carriage Material
Stainless Steel
Carriage Type
Standard
Carriage Width
27 mm
Dynamic Load Capacity (N)
2,780
Hole Size
3.50 mm
Maximum Speed (m/sec)
3
Mounting Hole Center to Qualify Edge (in/mm)
6 mm
Mounting Hole Center-to-Center (in/mm)
25 mm
Mounting Hole to End (in/mm)
10 mm
Number of Rail Holes
4
Overall Height (mm)
13
Rail Finish
Stainless Steel
Rail Height
7.5 mm
Rail Length
120 mm
Rail Material
Stainless Steel
Running Clearance (in/mm)
3 mm
Seals
Yes
Static Load Capacity (N)
4,220
Type
Single Carriage
