OEM#: 8S114New OEM Original Outright

SLEEVE COUPLING FLANGE 1-1/4 by TB Wood's

Your price:
$112.00 eachReady to ship
HomeTB Wood's8s114

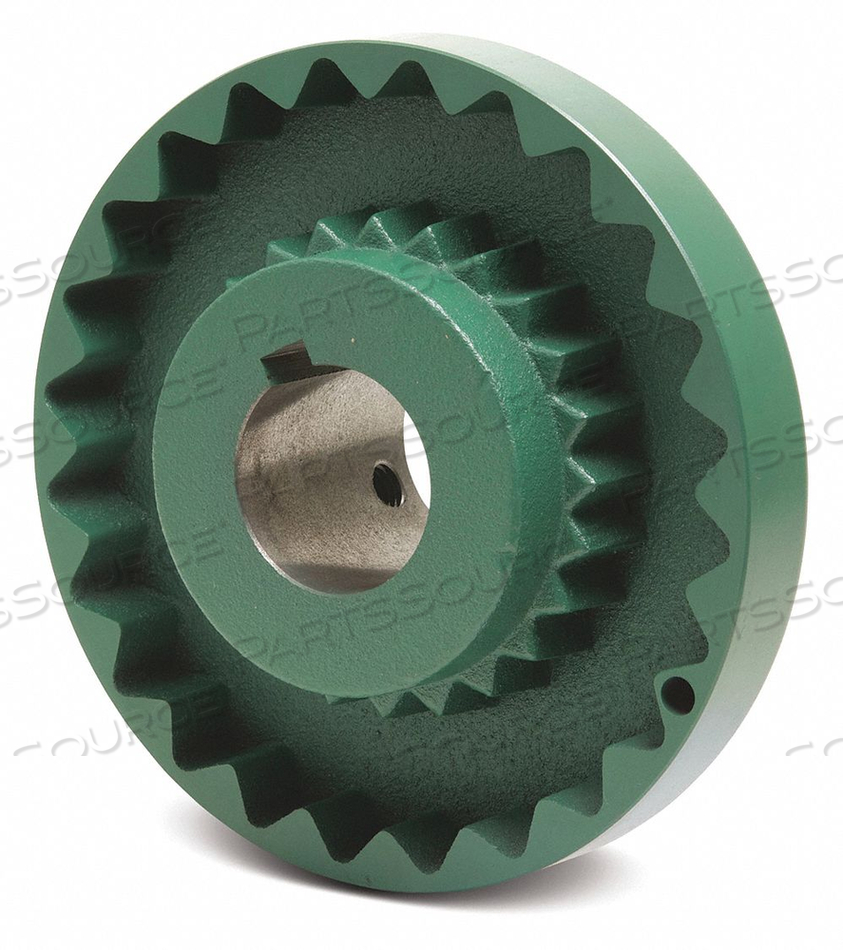

SLEEVE COUPLING FLANGE 1-1/4 by TB Wood's
SLEEVE COUPLING FLANGE 1-1/4 by TB Wood's

OEM#: 8S114
SLEEVE COUPLING FLANGE 1-1/4 by TB Wood's

New OEM Original Outright
Your price:
$112.00 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 8S114 Key Specs
Item
SLEEVE COUPLING FLANGE 1-1/4
OEM
TB Wood's
OEM #
8S114
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bore Dia.
1 1/4 in
Bore Type - Couplings
Fixed Bore
Bushing Required
None
Flange Type - Sleeve Couplings
S
Height (In.)
5.45 in
Hub Dia. (In.)
5.45 in
Ideal For
Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Item - Sleeve Coupling Flanges
Sleeve Coupling Flange
Keyway Size Type
1/4 in x 1/8 in
Length through Bore (In.)
2.09 in
Material of Construction
Cast Iron
Max. Angular Misalignment
0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Max. RPM
4,500 RPM
Outside Dia.
5.45 in
Setscrew Location
One Over the Key and One at 90 Degrees
Size - Sleeve Couplings
8
Width (In.)
2.09 in
