OEM#: HL4IMA24CNew OEM Original Outright

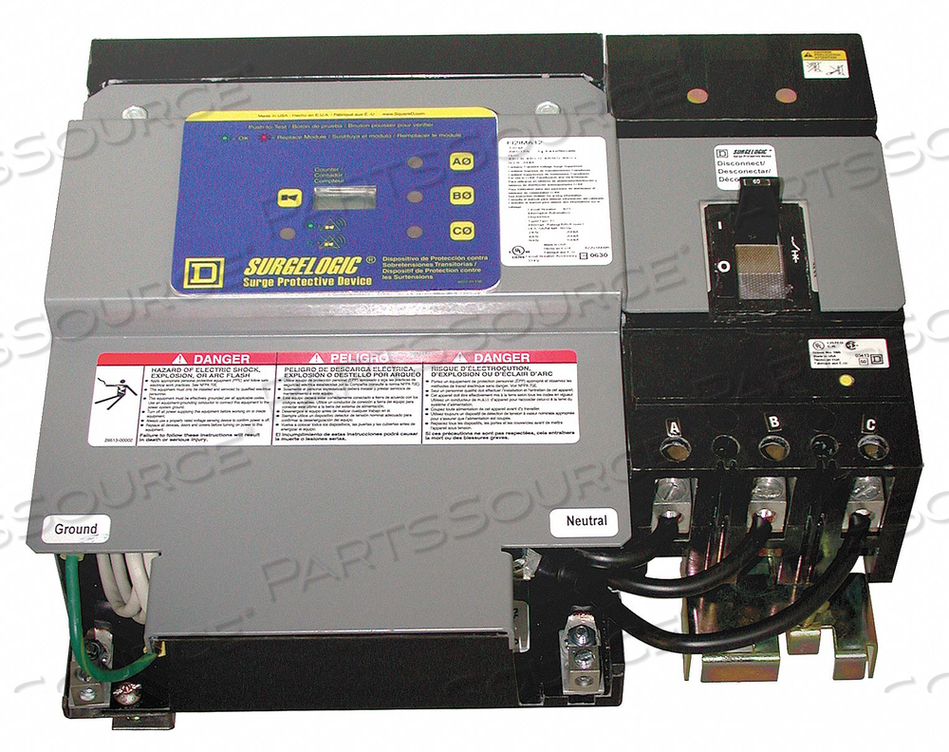

SURGE PROTECTION DEVICE 277/480V WYE 3PH by Square D
Your price:
$13,459.33 each
OEM#: HL4IMA24CSURGE PROTECTION DEVICE 277/480V WYE 3PH by Square D
New OEM Original Outright
Your price:
$13,459.33 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: HL4IMA24C Key Specs
Item
SURGE PROTECTION DEVICE 277/480V WYE 3PH
OEM
Square D
OEM #
HL4IMA24C
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Amps
60 A
Basic Material
Metallic
Color
Gray
Country of Origin
USA
Depth
5.59 in
Enclosure NEMA Rating
2
Filtering
Yes
Includes
Audible Alarm, Dry Contacts, LED Status Indicator, Surge Counter
Length
12.16 in
Max Continuing Operating Voltage
320V AC
Max Surge Current per Phase
240 kA
Modes of Protection
L-G, L-L, L-N, N-G
Modular
Yes
Mounting Location
Internally Mounted
Mounting Style
For I-Line Panelboards
Nominal Discharge Current
20 kA
Number of Poles
3
Number of Wires
4 Wires + Ground
Phase
3
Short Circuit Current Rating
200kA
Standards
CSA C22.2 No 5-09, CSA C22.2 No 8:1986, Type 2, UL 1283:ed. 5, UL 1449:ed. 3, UL 489:ed. 11, UL 96A:ed. 12
System Connection
Parallel
UL SPD Type
Type 2
Voltage
277/480V AC Wye
Voltage Protection Rating
1200V (L-G,N-G), 1500V (L-N), 2000V (L-L)
Width
13.46 in
Wire Gauge
6 AWG
