OEM#: PV-150XNew OEM Original Outright

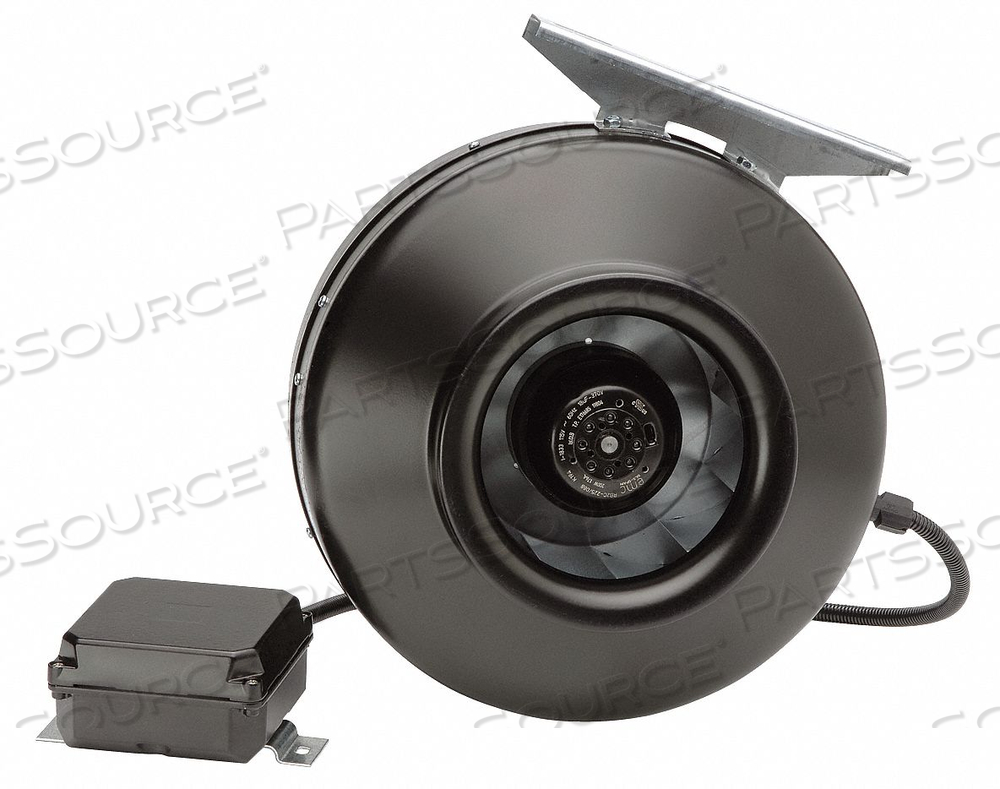

STEEL 8 D 8.5 H 13.1 W INLINE DUCT FAN by S&P USA Ventilation Systems
Your price:
$322.06 each
OEM#: PV-150XSTEEL 8 D 8.5 H 13.1 W INLINE DUCT FAN by S&P USA Ventilation Systems
New OEM Original Outright
Your price:
$322.06 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: PV-150X Key Specs
Item
STEEL 8 D 8.5 H 13.1 W INLINE DUCT FAN
OEM
S&P USA Ventilation Systems
OEM #
PV-150X
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Approvals, Certifications & Standards
UL, HVI, AMCA
Bearing Type
Ball
CFM @ 0.000 in SP
390
CFM @ 0.100 in SP
374
CFM @ 0.125 in SP
367
CFM @ 0.200 in SP
350
CFM @ 0.250 in SP
340
CFM @ 0.375 in SP
312
CFM @ 0.400 in SP
304
CFM @ 0.450 in SP
294
CFM @ 0.500 in SP
285
CFM @ 0.600 in SP
262
CFM @ 0.750 in SP
233
CFM @ 0.800 in SP
208
CFM @ 1.000 in SP
193
CFM @ 1.200 in SP
153
CFM @ 1.500 in SP
110
Country of Origin
Spain
Fits Duct Dia.
6 in
Flange Width
1 in
Height
8 1/2 in
Housing Diameter
13 1/8 in
Housing Finish
Black Epoxy Coating
Housing Material
Galvanized Metal
Hz
60
Includes
Mounting Bracket
Inlet & Outlet Diameter
6 in
Length
13 1/8 in
Maximum Amps
1.08 A
Maximum Inlet Temperature
140 Degrees F
Maximum Wattage
130
Motor Enclosure
Totally Enclosed
Motor RPM
3075
Mounting Position
Horizontal or Vertical
Number of Speeds
1
Phase
1
Speed Control
Yes
Voltage
120V
Width
13 1/8 in
