OEM#: GW3XNew OEM Original Outright
GUIDE WHEEL BEARING, DOUBLE SEALED, OD 45.80 MM, BORE 12.000 / 11.992 MM, METRIC by SMT CORP
Your price:
$27.93 each
OEM#: GW3XGUIDE WHEEL BEARING, DOUBLE SEALED, OD 45.80 MM, BORE 12.000 / 11.992 MM, METRIC by SMT CORP
New OEM Original Outright
Your price:
$27.93 each
Asset Information
Must purchase minimum of 2
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

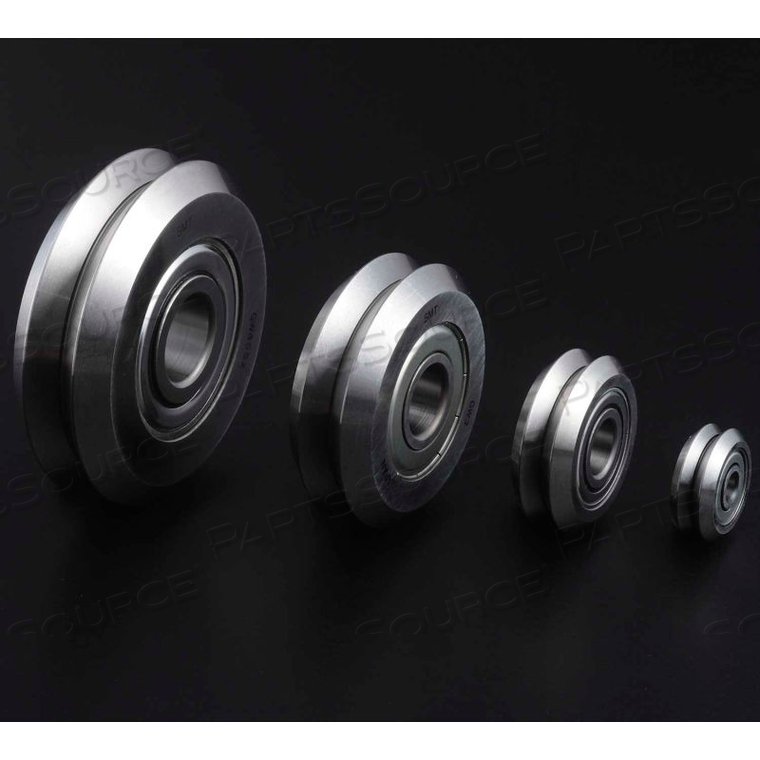

SMT GW3X Guide Wheel Bearing, Double Sealed, OD 45.80 mm, Bore 12.000 / 11.992 mm, Metric
SMT Guide Wheel Bearings work as linear motion components to help providing smooth linear motion. The outer rings of SMT bearings engage either with protruded or concaved V-shape track rails. They are made of AISI 52100 bearing steel or SUS 440C stainless steel for corrosion resistance. Since their internal design is same as double row angular contact ball bearings, they are capable of supporting radial, axial or moment loads.
SMT Guide Wheel Bearings work as linear motion components to help providing smooth linear motion. The outer rings of SMT bearings engage either with protruded or concaved V-shape track rails. They are made of AISI 52100 bearing steel or SUS 440C stainless steel for corrosion resistance. Since their internal design is same as double row angular contact ball bearings, they are capable of supporting radial, axial or moment loads.
Technical Specs
P/N: GW3X Key Specs
Item
GUIDE WHEEL BEARING, DOUBLE SEALED, OD 45.80 MM, BORE 12.000 / 11.992 MM, METRIC
OEM
SMT CORP
OEM #
GW3X
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Axial Clearance (Mm) Under 2.5 Kg
0.025 to 0.076
Bearing Type
Guide Wheel
Bore Diameter Inches
.4724 / .4721
Bore Diameter Millimeters
12.000 / 11.992
Bottom Diameter Inches
1.5
Bottom Diameter Millimeter
38.1
Cage Material
Nylon 66
Contact Angle (Degrees)
30
Country of Origin
Japan
Dimension X Inches
0.03
Dimension X Millimeters
0.75
Dimension Y Inches
0.007
Dimension Y Millimeters
0.18
Dynamic Load Rating (N)
9150
Grease Rpm
10000
Lubrication Type
Shell Alvania S2, Prepacked
Operating Temperature
-13 to 212°F
Outer Diameter Inches
1.803
Outer Diameter Millimeters
45.8
Shaft Fillet Corner Radius Max (Mm)
0.6
Static Load Rating (N)
5050
Width Inches
0.625
Width Millimeters
15.875
