OEM#: GW3New OEM Original Outright
GUIDE WHEEL BEARING, DOUBLE SHIELDED, OD 45.80 MM, BORE 12.000 / 11.992 MM, METRIC by SMT CORP
Your price:
$36.19 each
OEM#: GW3GUIDE WHEEL BEARING, DOUBLE SHIELDED, OD 45.80 MM, BORE 12.000 / 11.992 MM, METRIC by SMT CORP
New OEM Original Outright
Your price:
$36.19 each
Asset Information
Must purchase minimum of 2
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

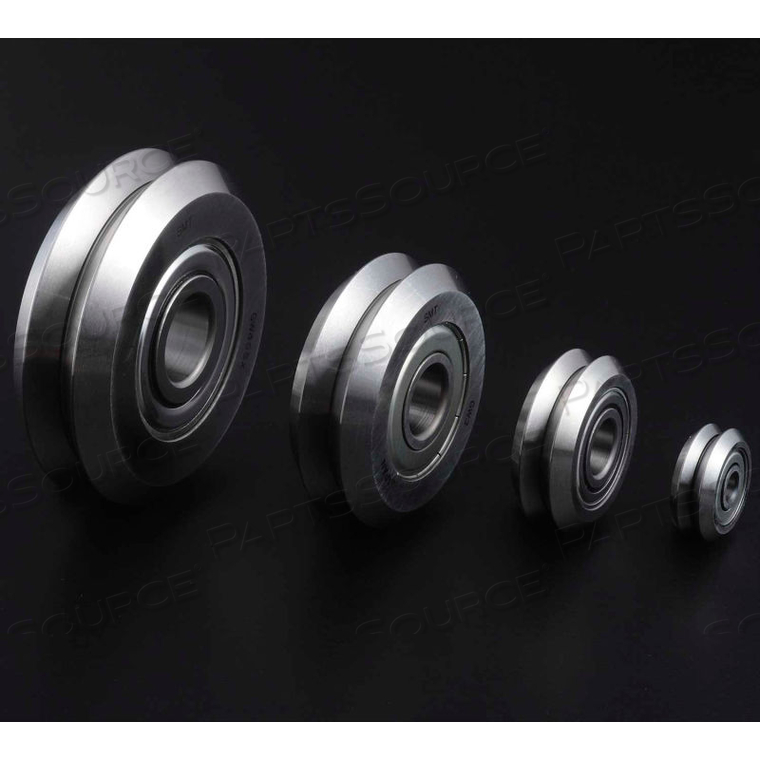

SMT GW3 Guide Wheel Bearing, Double Shielded, OD 45.80 mm, Bore 12.000 / 11.992 mm, Metric
SMT Guide Wheel Bearings work as linear motion components to help providing smooth linear motion. The outer rings of SMT bearings engage either with protruded or concaved V-shape track rails. They are made of AISI 52100 bearing steel or SUS 440C stainless steel for corrosion resistance. Since their internal design is same as double row angular contact ball bearings, they are capable of supporting radial, axial or moment loads.
SMT Guide Wheel Bearings work as linear motion components to help providing smooth linear motion. The outer rings of SMT bearings engage either with protruded or concaved V-shape track rails. They are made of AISI 52100 bearing steel or SUS 440C stainless steel for corrosion resistance. Since their internal design is same as double row angular contact ball bearings, they are capable of supporting radial, axial or moment loads.
Technical Specs
P/N: GW3 Key Specs
Item
GUIDE WHEEL BEARING, DOUBLE SHIELDED, OD 45.80 MM, BORE 12.000 / 11.992 MM, METRIC
OEM
SMT CORP
OEM #
GW3
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Axial Clearance Under 2.5 kg (mm)
0.025 to 0.076
Bearing Type
Guide Wheel
Bore Diameter (in)
.4724 / .4721
Bore Diameter (mm)
12.000 / 11.992
Bottom Diameter (in)
1.5
Bottom Diameter (mm)
38.1
Cage Material
Nylon 66
Contact Angle (degrees)
30
Country of Origin
Japan
Dimension X (in)
0.03
Dimension X (mm)
0.75
Dimension Y (in)
0.007
Dimension Y (mm)
0.18
Dynamic Load Rating (N)
9150
Grease RPM
14000
Lubrication Type
Shell Alvania S2, Prepacked
Maximum Shaft Fillet Corner Radius (mm)
0.6
Operating Temperature
-13 to 266°F
Outside Diameter (in)
1.803
Outside Diameter (mm)
45.8
Static Load Rating (N)
5050
Width (in)
0.625
Width (mm)
15.875
