OEM#: GW2XNew OEM Original Outright
GUIDE WHEEL BEARING, DOUBLE SEALED, OD 30.730 MM, BORE 9.525 / 9.517 MM, METRIC by SMT CORP
Your price:
$49.53 each
OEM#: GW2XGUIDE WHEEL BEARING, DOUBLE SEALED, OD 30.730 MM, BORE 9.525 / 9.517 MM, METRIC by SMT CORP
New OEM Original Outright
Your price:
$49.53 each
Asset Information
Must purchase minimum of 2
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

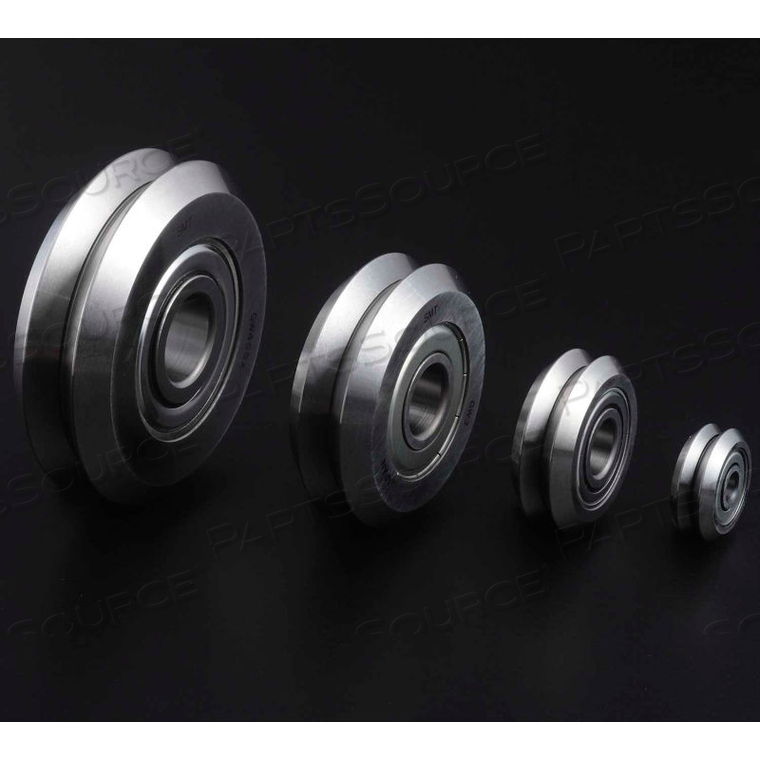

SMT GW2X Guide Wheel Bearing, Double Sealed, OD 30.730 mm, Bore 9.525 / 9.517 mm, Metric
SMT Guide Wheel Bearings work as linear motion components to help providing smooth linear motion. The outer rings of SMT bearings engage either with protruded or concaved V-shape track rails. They are made of AISI 52100 bearing steel or SUS 440C stainless steel for corrosion resistance. Since their internal design is same as double row angular contact ball bearings, they are capable of supporting radial, axial or moment loads.
SMT Guide Wheel Bearings work as linear motion components to help providing smooth linear motion. The outer rings of SMT bearings engage either with protruded or concaved V-shape track rails. They are made of AISI 52100 bearing steel or SUS 440C stainless steel for corrosion resistance. Since their internal design is same as double row angular contact ball bearings, they are capable of supporting radial, axial or moment loads.
Technical Specs
P/N: GW2X Key Specs
Item
GUIDE WHEEL BEARING, DOUBLE SEALED, OD 30.730 MM, BORE 9.525 / 9.517 MM, METRIC
OEM
SMT CORP
OEM #
GW2X
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Axial Clearance (Mm) Under 2.5 Kg
0.015 to 0.051
Bearing Type
Guide Wheel
Bore Diameter Inches
.3750 / .3747
Bore Diameter Millimeters
9.525 / 9.517
Bottom Diameter Inches
1
Bottom Diameter Millimeter
25.4
Cage Material
Nylon 66
Contact Angle (Degrees)
30
Country of Origin
Japan
Dimension X Inches
0.024
Dimension X Millimeters
0.6
Dimension Y Inches
0.012
Dimension Y Millimeters
0.3
Dynamic Load Rating (N)
4700
Grease Rpm
13000
Lubrication Type
Shell Alvania S2, Prepacked
Operating Temperature
-13 to 212°F
Outer Diameter Inches
1.21
Outer Diameter Millimeters
30.73
Shaft Fillet Corner Radius Max (Mm)
0.5
Static Load Rating (N)
2780
Width Inches
0.4375
Width Millimeters
11.112
SMT GW2X Guide Wheel Bearing, Double Sealed, OD 30.730 mm, Bore 9.525 / 9.517 mm, Metric
SMT Guide Wheel Bearings work as linear motion components to help providing smooth linear motion. The outer rings of SMT bearings engage either with protruded or concaved V-shape track rails. They are made of AISI 52100 bearing steel or SUS 440C stainless steel for corrosion resistance. Since their internal design is same as double row angular contact ball bearings, they are capable of supporting radial, axial or moment loads.
SMT Guide Wheel Bearings work as linear motion components to help providing smooth linear motion. The outer rings of SMT bearings engage either with protruded or concaved V-shape track rails. They are made of AISI 52100 bearing steel or SUS 440C stainless steel for corrosion resistance. Since their internal design is same as double row angular contact ball bearings, they are capable of supporting radial, axial or moment loads.
