OEM#: 5205-2RSNew OEM Original Outright

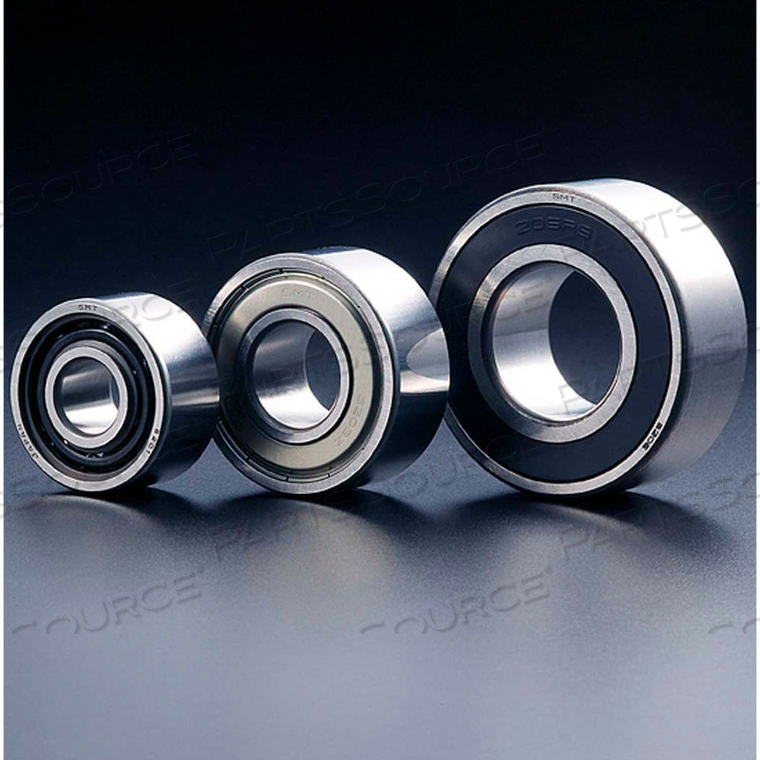

DOUBLE ROW ANGULAR CONTACT BALL BEARING, DOUBLE SEALED, OD 52MM, BORE 25MM, METRIC by SMT CORP
Your price:
$28.79 each
OEM#: 5205-2RSDOUBLE ROW ANGULAR CONTACT BALL BEARING, DOUBLE SEALED, OD 52MM, BORE 25MM, METRIC by SMT CORP
New OEM Original Outright
Your price:
$28.79 each
Asset Information
Must purchase minimum of 2
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
SMT 5205-2RS Double Row Angular Contact Ball Bearing, Double Sealed, OD 52mm, Bore 25mm, Metric
SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.
SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.
Technical Specs
P/N: 5205-2RS Key Specs
Item
DOUBLE ROW ANGULAR CONTACT BALL BEARING, DOUBLE SEALED, OD 52MM, BORE 25MM, METRIC
OEM
SMT CORP
OEM #
5205-2RS
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Type
Double Sealed
Bore Diameter Millimeters
25
Cage Material
Carbon Steel
Contact Angle (Degrees)
30
Country of Origin
Japan
Dynamic Load Rating (N)
20600
Grease Rpm
7700
Housing Corner Radius Max (Mm)
1
Lubrication Type
Shell Alvania S2, Prepacked
Operating Temperature
-13 to 212°F
Outer Diameter Millimeters
52
Shaft Fillet Corner Radius Max (Mm)
1
Static Load Rating (N)
14300
Tolerance
ISO Normal
Width Millimeters
20.6
SMT 5205-2RS Double Row Angular Contact Ball Bearing, Double Sealed, OD 52mm, Bore 25mm, Metric
SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.
SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.
