OEM#: JU-P20912-S2New OEM Original Outright

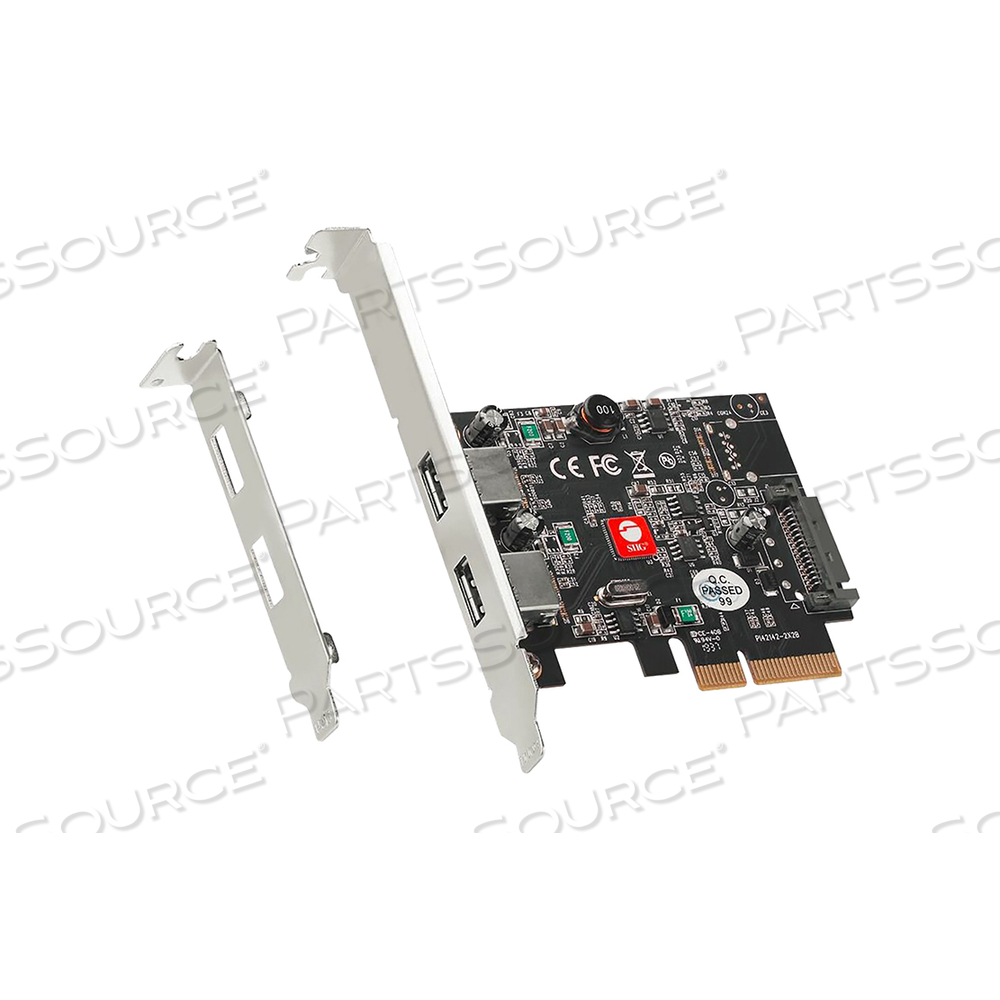

SIIG USB 3.1 2 PORT PCIE HOST ADAPTER TYPE A, USB ADAPTER, PCIE 3.0 X4, USB 3.1 GEN 2 X 2 by SIIG, Inc.
Your price:
$45.23 each $69.99 Savings: $24.76 (35%)
View All
OEM#: JU-P20912-S2SIIG USB 3.1 2 PORT PCIE HOST ADAPTER TYPE A, USB ADAPTER, PCIE 3.0 X4, USB 3.1 GEN 2 X 2 by SIIG, Inc.
New OEM Original Outright
Your price:
$45.23 each
$69.99 Savings: $24.76 (35%)
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

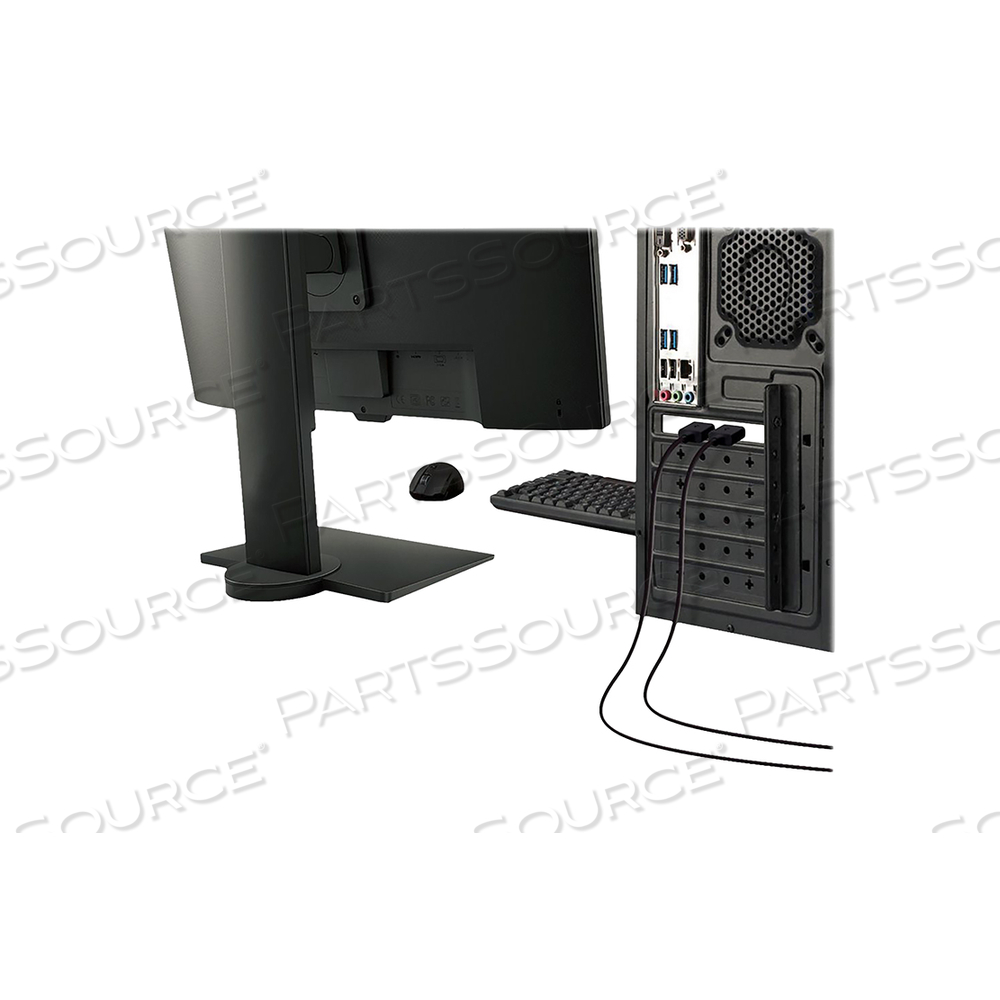

Adds two USB 3.1 Type-A ports to your desktop computer via an available PCI Express slot.
- Complies with PCI-Express 3.0 standard
- Supports the latest USB generation 3.1 Gen 2 with data transfer rate up to 10Gb/s. Supports plug-n-play, hot-swapping, and backwards compatible with USB 1.1 / 2.0 / 3.0
- Each USB port provides up to 900mA power output to better support the power consumption of your connected device
- Each USB port features independent over-current protection to further protect your device
- Built-in 15-pin SATA power connector connects to the system power supply, as needed, to ensure sufficient power is supplied to the USB ports

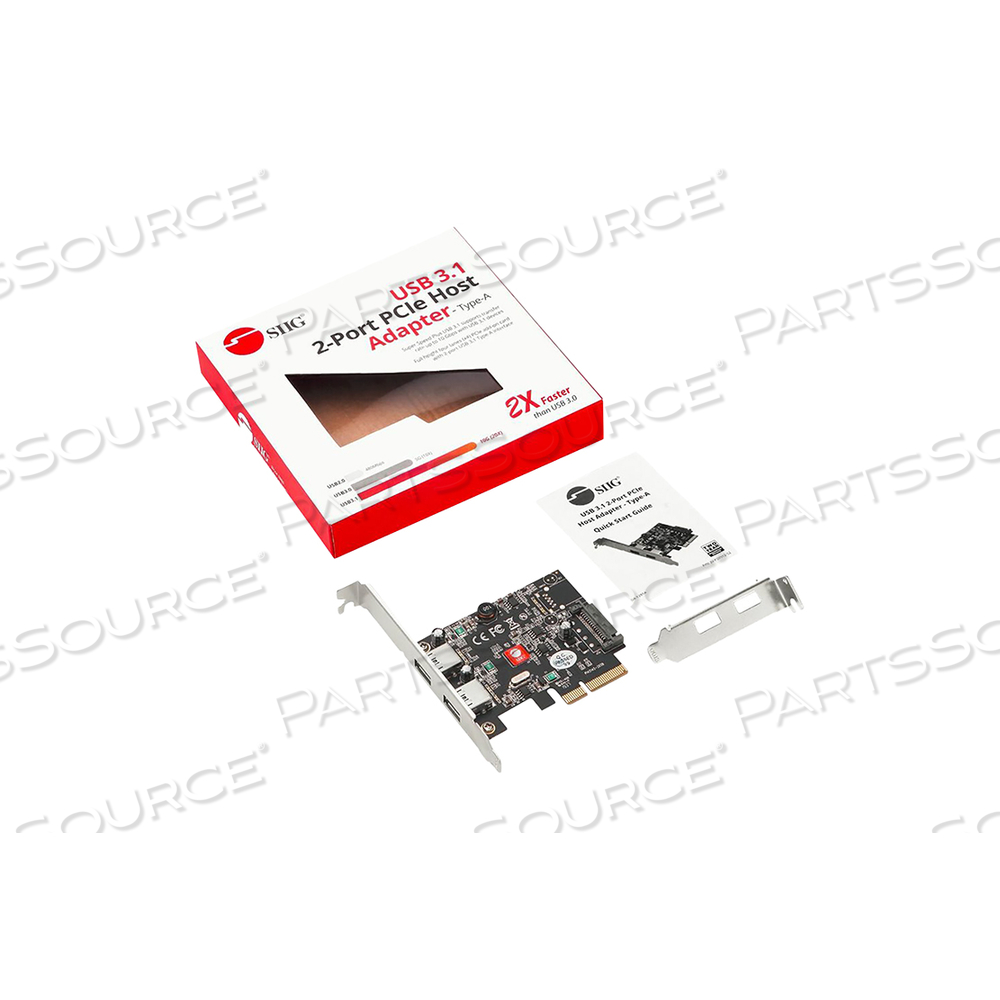

- Dual-profile design installs into different form factor system chassis with the included full and low profile brackets
Technical Specs
P/N: JU-P20912-S2 Key Specs
Item
SIIG USB 3.1 2 PORT PCIE HOST ADAPTER TYPE A, USB ADAPTER, PCIE 3.0 X4, USB 3.1 GEN 2 X 2
OEM
SIIG, Inc.
OEM #
JU-P20912-S2
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Color
Black
Compliant Standards
USB 1.1, USB 2.0, USB 3.0
Country of Origin
China
Data Link Protocol
USB 3.1 Gen 2
Data Transfer Rate
10 Gbps
Device Type
USB adapter
Dimensions (W x D x H)
3.9 in x 4.7 in x 0.8 in
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 3.0 x4
PCI Specification Revision
PCIe 3.0
Ports
USB 3.1 Gen 2 x 2
Processor
1 x ASMedia ASM3142
System Requirements
Apple macOS 10.13 - 10.15, Windows 8 / 10 (64 bits)
Weight
1.76 oz
Adds two USB 3.1 Type-A ports to your desktop computer via an available PCI Express slot.
- Complies with PCI-Express 3.0 standard
- Supports the latest USB generation 3.1 Gen 2 with data transfer rate up to 10Gb/s. Supports plug-n-play, hot-swapping, and backwards compatible with USB 1.1 / 2.0 / 3.0
- Each USB port provides up to 900mA power output to better support the power consumption of your connected device
- Each USB port features independent over-current protection to further protect your device
- Built-in 15-pin SATA power connector connects to the system power supply, as needed, to ensure sufficient power is supplied to the USB ports
- Dual-profile design installs into different form factor system chassis with the included full and low profile brackets
