OEM#: TPS3F1115D2New OEM Original Outright

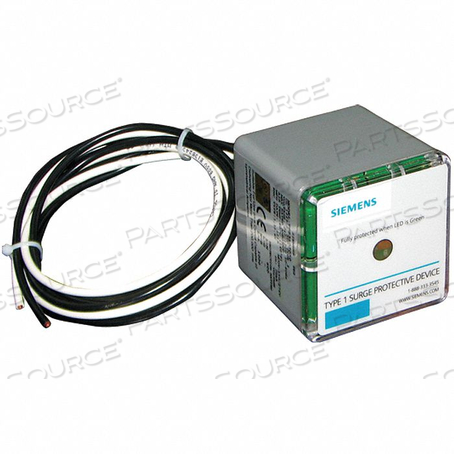

SURGE PROTECTION DEVICE 480VAC DELTA 3PH by Siemens

Your price:
$2,246.47 eachReady to ship
HomeSiemensTPS3F1115D2
SURGE PROTECTION DEVICE 480VAC DELTA 3PH by Siemens
SURGE PROTECTION DEVICE 480VAC DELTA 3PH by Siemens

OEM#: TPS3F1115D2
SURGE PROTECTION DEVICE 480VAC DELTA 3PH by Siemens

New OEM Original Outright
Your price:
$2,246.47 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: TPS3F1115D2 Key Specs
Item
SURGE PROTECTION DEVICE 480VAC DELTA 3PH
OEM
Siemens
OEM #
TPS3F1115D2
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Basic Material
Nonmetallic
Color
Gray
Country of Origin
USA
Depth
4 in
Enclosure Material
Polycarbonate
Enclosure NEMA Rating
4X
Filtering
Yes
IP Rating
56
Includes
Audible Alarm, Dry Contacts, EMI/RFI Filters, Protection Status LEDs
Length
6 in
Lightning Impulse Current
20 kA
Max Continuing Operating Voltage
552V AC
Max Operating Temperature
140 Degrees F
Max Surge Current per Mode
100kA (L-G), 50kA (L-L)
Max Surge Current per Phase
150 kA
Min Operating Temperature
-15 Degrees F
Modes of Protection
L-G, L-L
Modular
No
Mounting Location
Externally Mounted
Mounting Style
Surface
Noise Attenuation
-50db @ 10kHz to 100MHz
Nominal Discharge Current
10 kA
Number of Poles
3
Number of Wires
3 Wires + Ground
Phase
3
Short Circuit Current Rating
200kA
Standards
ANSI/IEEE, Type 2, UL/cUL 1449 Listed
System Connection
Parallel
UL SPD Type
Type 2
Voltage
480V AC Delta
Voltage Protection Rating
1800V (L-G), 2000V (L-L)
Width
6 in
Wire Gauge
10 to 8 AWG
