OEM#: H657V1New OEM Original Outright

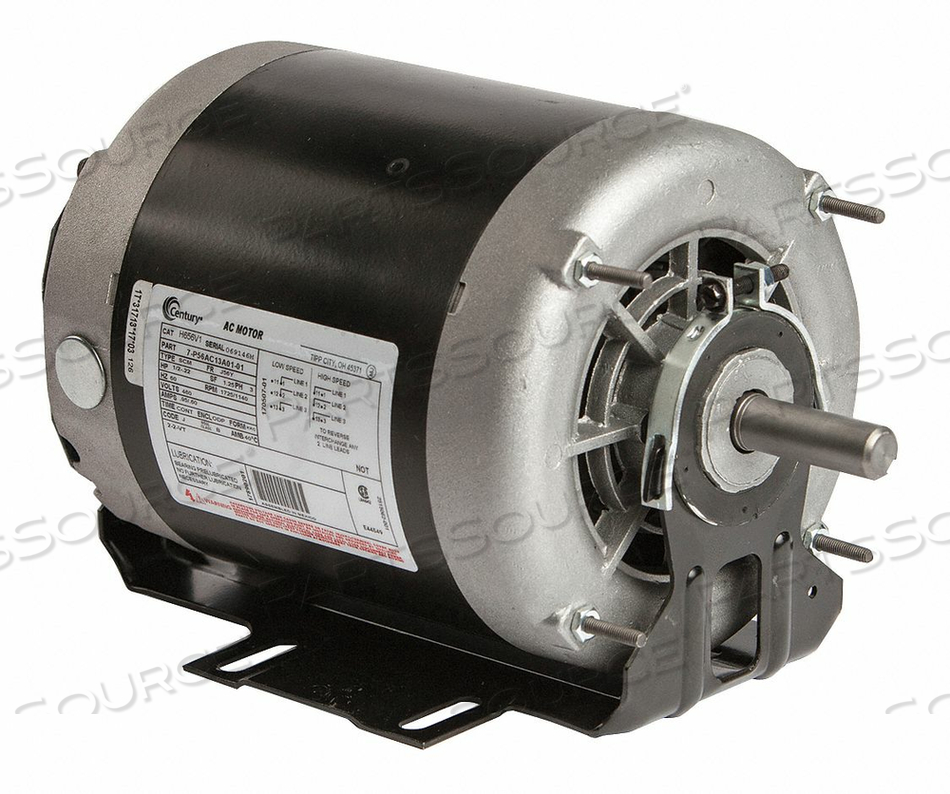

MTR 3PH 3/4HP 1725/1140 200-230 EFF 73.0 by Regal Beloit America, Inc. (Century Electric Motors)
Your price:
$543.98 each $678.29 Savings: $134.31 (20%)
OEM#: H657V1MTR 3PH 3/4HP 1725/1140 200-230 EFF 73.0 by Regal Beloit America, Inc. (Century Electric Motors)
New OEM Original Outright
Your price:
$543.98 each
$678.29 Savings: $134.31 (20%)
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: H657V1 Key Specs
Item
MTR 3PH 3/4HP 1725/1140 200-230 EFF 73.0
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
H657V1
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
6-1/2 in
Duty
Continuous
Frame
56Y
Full Load Amps
2.5-2.6/1.5-1.6
HP
3/4 to 1/3
Hz
60
Ins. Class
B
Length Less Shaft
8-3/4 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1.25
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
None
Mounting Stud Pattern
4-1/8 in x 4-1/8 in
Nameplate RPM
1725/1140
Nominal Efficiency
73 %
Number of Speeds
2
Overall Length
10-5/8 in
Phase
3
Resilient Ring Diameter
2-1/2 in
Ring to Ring Center
8-1/4 in
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified, UL Recognized
Voltage
200-230
Voltage Compatibility
200, 200-230, 200-230/440, 200-230/460, 208, 208-230, 208-240
