OEM#: D1036New OEM Original Outright

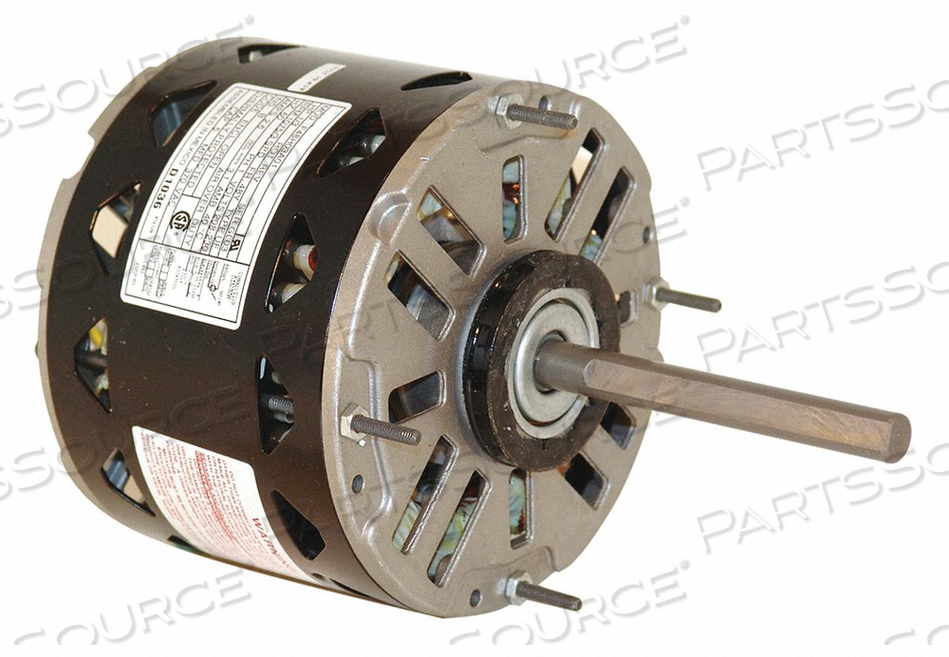

MOTOR PSC 1/3 HP 1075 208-230V 48Y OAO by Regal Beloit America, Inc. (Century Electric Motors)
Your price:
$164.01 each $171.80 Savings: $7.79 (5%)
OEM#: D1036MOTOR PSC 1/3 HP 1075 208-230V 48Y OAO by Regal Beloit America, Inc. (Century Electric Motors)
New OEM Original Outright
Your price:
$164.01 each
$171.80 Savings: $7.79 (5%)
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: D1036 Key Specs
Item
MOTOR PSC 1/3 HP 1075 208-230V 48Y OAO
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
D1036
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
5-5/8 in
Capacitor Required
2MDV4
Duty
Continuous
Frame
48Y
Full Load Amps
2.6
HP
1/3
Hz
60
Ins. Class
B
Length Less Shaft
5-3/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1075
Number of Speeds
3
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
4-15/16 in
Shaft Diameter
1/2 in
Shaft Length
4 in
Standards
UL Recognized, CSA Certified
Stud Size
#8-32
Voltage
208-230
Voltage Compatibility
115/208-230, 208-230, 208-240
