OEM#: B796New OEM Original Outright

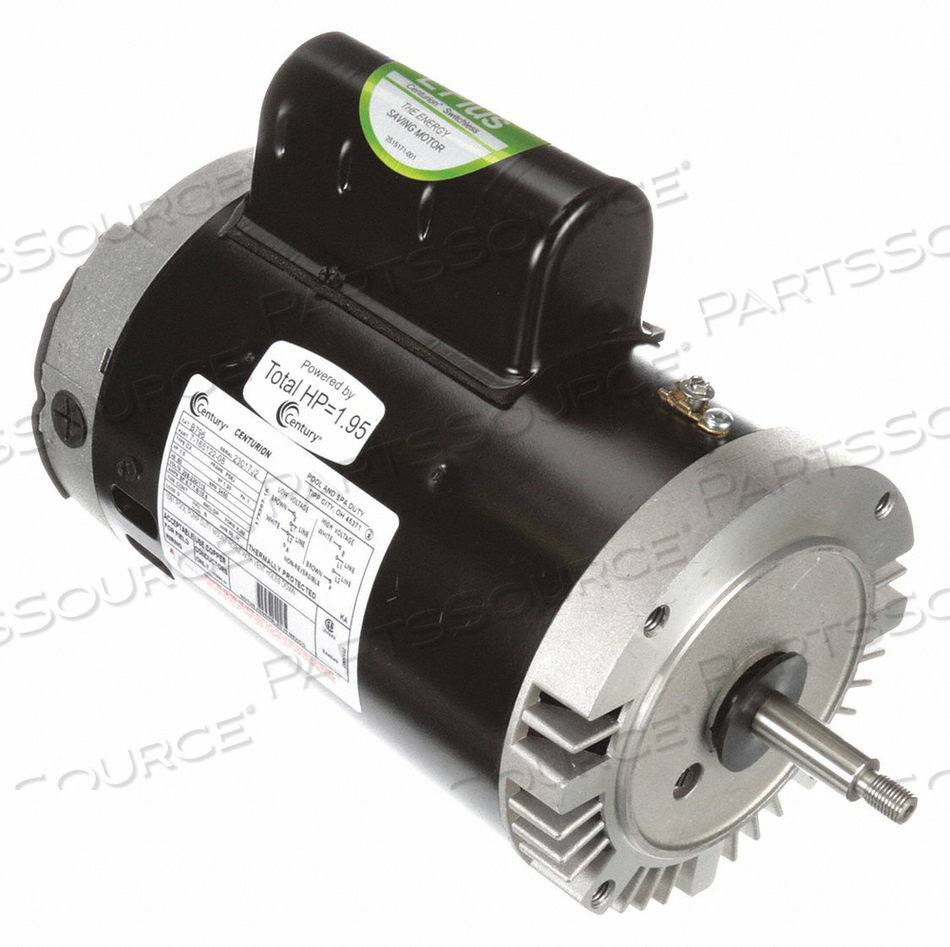

MOTOR 1 1/2 HP 3 450 RPM 115/208-230V by Regal Beloit America, Inc. (Century Electric Motors)
Your price:
$588.57 each
OEM#: B796MOTOR 1 1/2 HP 3 450 RPM 115/208-230V by Regal Beloit America, Inc. (Century Electric Motors)
New OEM Original Outright
Your price:
$588.57 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: B796 Key Specs
Item
MOTOR 1 1/2 HP 3 450 RPM 115/208-230V
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
B796
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature
50 Degrees C
Finish
Black
Frame
56J
Full Load Amps
15.6/8.7-7.8
HP
1-1/2
Hz
60
Ins. Class
B
Motor Application
Pump
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Open Dripproof
Motor Flange Material
Aluminum
Motor Mounting Type
Face
Motor Service Factor
1.3
Motor Shaft Rotation
CCWSE
Motor Sub Application
Pool and Spa Pump
Motor Thermal Protection
Auto
Nameplate RPM
3450
Phase
1
RPM Range
3001-3600
Shaft
Threaded 7/16-20 UNF-2A RH 11/16 in From End
Shaft Diameter
5/8 in
Shaft Length
2-9/16 in
Shaft Material
303 Stainless Steel
Standards
CSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022)
Voltage
115/208-230
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
