OEM#: ARB2024MLNew OEM Original Outright

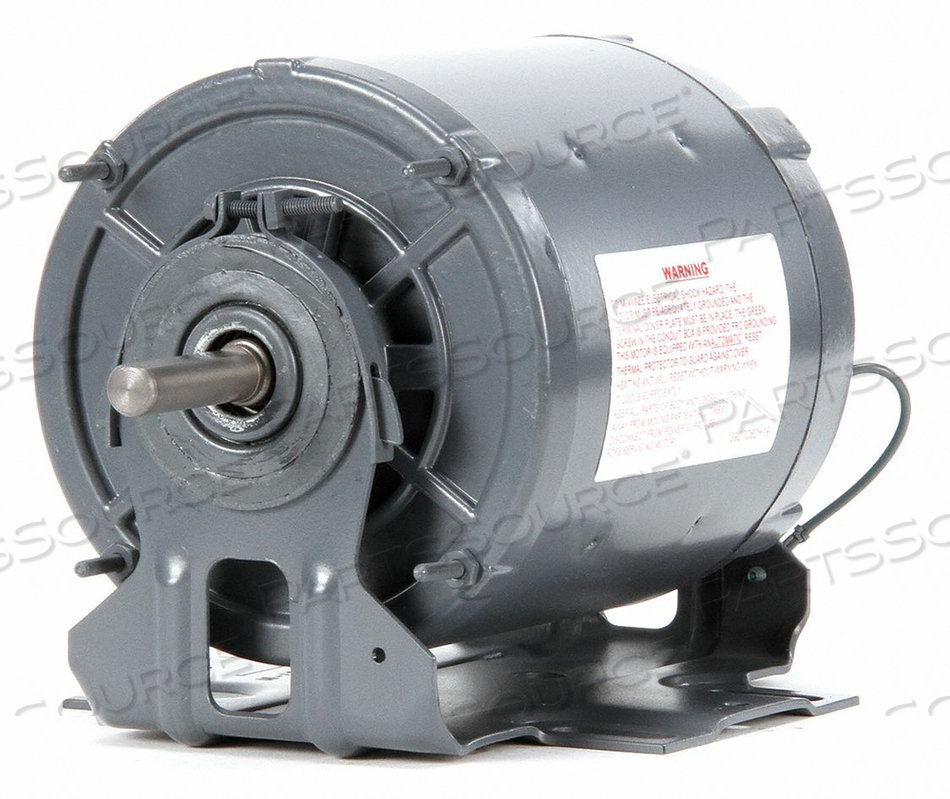

MOTOR SPLIT PH 1/4 HP 1725 115V 56Z TEAO by Regal Beloit America, Inc. (Century Electric Motors)

Your price:
$99.16 each
$263.94 Savings: $164.78 (62%)
Ready to ship
HomeRegal Beloit America, Inc. (Century Electric Motors)arb2024ml
MOTOR SPLIT PH 1/4 HP 1725 115V 56Z TEAO by Regal Beloit America, Inc. (Century Electric Motors)
MOTOR SPLIT PH 1/4 HP 1725 115V 56Z TEAO by Regal Beloit America, Inc. (Century Electric Motors)

OEM#: ARB2024ML
MOTOR SPLIT PH 1/4 HP 1725 115V 56Z TEAO by Regal Beloit America, Inc. (Century Electric Motors)

New OEM Original Outright
Your price:
$99.16 each
$263.94 Savings: $164.78 (62%)
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: ARB2024ML Key Specs
Item
MOTOR SPLIT PH 1/4 HP 1725 115V 56Z TEAO
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
ARB2024ML
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-3/16 in
Capacitor Required
No
Duty
Continuous
Frame
56Z
Full Load Amps
3.3
HP
1/4 in
Hz
60
Includes
Resilient Base
Ins. Class
B
Length Less Shaft
7-7/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Length
5/8 in
Mounting Stud Location
Shaft End
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1725
Number of Speeds
1
Overall Length
9-3/4 in
Phase
1
Resilient Ring Diameter
2-1/2 in
Ring to Ring Center
7-1/4 in
Shaft Diameter
1/2 in
Shaft Length
1-7/8 in
Standards
CSA Certified, UL Recognized
Stud Size
#8-32
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
