OEM#: RB2054DV2New OEM Original Outright

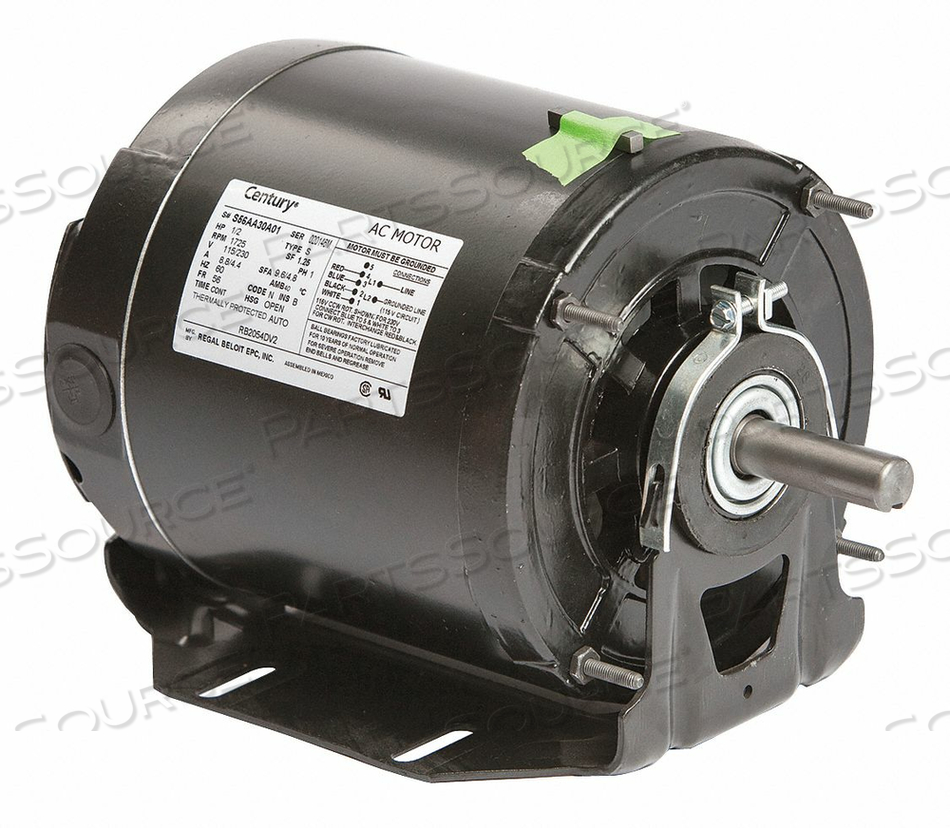

MOTOR SP PH 1/2 HP 1725 115/230V 56 OPEN by Regal Beloit America, Inc. (Century Electric Motors)
Your price:
$476.19 each
OEM#: RB2054DV2MOTOR SP PH 1/2 HP 1725 115/230V 56 OPEN by Regal Beloit America, Inc. (Century Electric Motors)
New OEM Original Outright
Your price:
$476.19 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: RB2054DV2 Key Specs
Item
MOTOR SP PH 1/2 HP 1725 115/230V 56 OPEN
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
RB2054DV2
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
6-1/2 in
Duty
Continuous
Frame
56
Full Load Amps
9.6/4.8
HP
1/2
Hz
60
Ins. Class
B
Length Less Shaft
8-5/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Open
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1.25
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Pattern
4-1/8 in x 4-1/8 in
Nameplate RPM
1725
Number of Speeds
1
Overall Length
10-3/16 in
Phase
1
Resilient Ring Diameter
2-1/2 in
Ring to Ring Center
7-13/16 in
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified, UL Recognized
Voltage
115/230
Voltage Compatibility
115, 115/230, 120, 120/240, 230, 240
